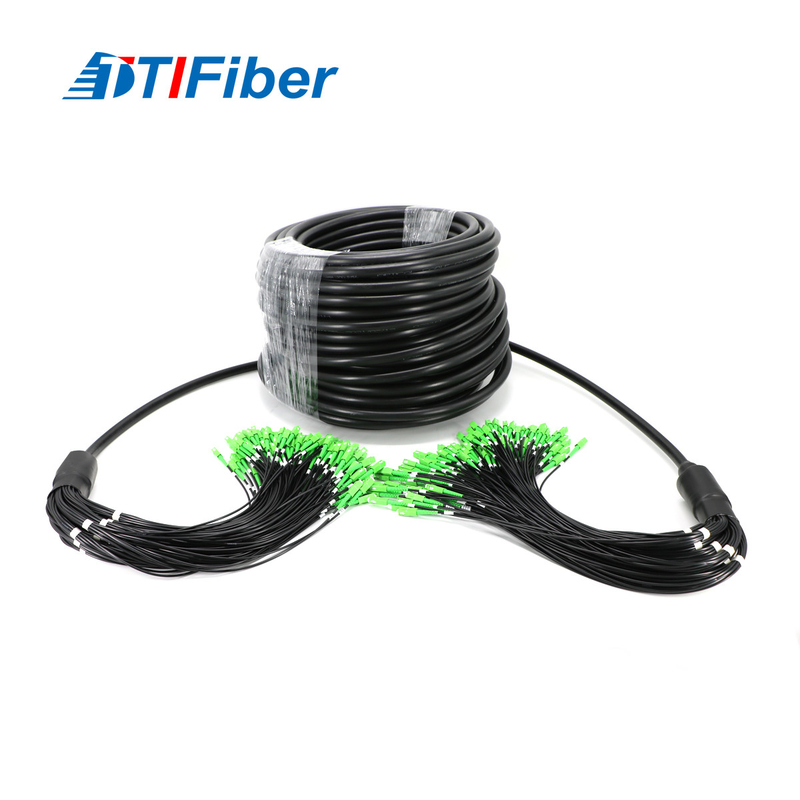

144 Cores Singlemode Fiber Optical Patch Cord with SC/APC-SC/APC Connector
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS, SGS, ISO9001 |
| Model Number: | SM |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T, , Monthly settlement |
| Supply Ability: | 7000pcs/Day |
|
Detail Information |
|||
| Model Name: | Fiber Optical Patch Cord | Connector: | SC |
|---|---|---|---|
| Fiber Type: | Singlemode | Fiber Count: | 1~144 Multi-fibers |
| Cable Diameter: | 0.9mm, 2.0mm, 3.0mm | Cable Type: | PVC LSZH PE |
| Color: | Colors | ||
| High Light: | fiber patch cord,fiber patch cord types |
||
Product Description

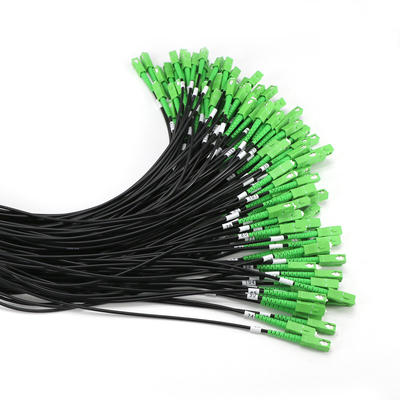

144 Cores Singlemode Fiber Optical Patch Cord with SC/APC-SC/APC Connector
Fiber Optical Patch Cord
Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center. TTI fiber provides various types of fiber optic patch cables including single-mode, multimode, multi-core, armored patch cables, as well as fiber optic pigtails and other special patch cables. For most of the patch cables, the SC, ST, FC, LC, MU, MTRJ,connectors (APC/UPC polish) are all available. In addition, we also have MTP/MPO cables in stock.
Fiber Optical Patch Cord Features:
- Meets ROHS and Bell core GR 326-core standards
- Custom Configurations Available at No Extra Charge
- Available in fiber bunch, ribbon fan-out, pigtail available
- FC, LC, ST, SC, MTRJ, MU, MPO, D4, SMA optional
- Ferrule of end-face: PC, UPC, APC
- PVC, LSZH, OFNR, OFNP fiber cable optional
- Factory 100% test before shipment
- Low insertion loss and high return loss
- Serialized & Individual Test Records
Fiber Optic Network Cable Applications:
- Suitable for fiber optic patch panel
- Telecommunication networks
- Fiber optic communication networks
- CATV, LAN, WAN, Test &Measurement
Fiber Optic Network Cable Specification:
| Parameter | Single Mode | Multi Mode | ||||
| Basic | Fiber connector | FC, SC, LC, ST, MU, MTRJ, MPO | ||||
| Ferrule End-face | PC | UPC | APC | UPC | ||
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.2bB | ||
| Return Loss | ≥50dB | ≥55dB | ≥60dB | ≥35dB | ||
| Ceramic Ferrule Specification | 125.5um concentricity deviations:<=1um | 127um concentricity deviations:<=3um | ||||
| Suitable Fiber | 9/125um | 50/125um,62.5/125um | ||||
| End-face Geometry | Radius of Curvature | 7~25mm | 5~12mm | N/A | ||
| Fiber Protrusion | ≤50nm | ≤100nm | N/A | |||
| Fiber Under Cut | ≤100nm | ≤100nm | N/A | |||
| Apex offset | ≤50um | |||||
| Mechanical | Exchangeability | ≤0.2dB | ||||
| Salt Spray | ≤0.1dB | |||||
| Drop | ≤0.2dB(1.5M, 5 drops) | |||||
| Vibration | IL ≤0.2dB(550Hz, 1.5mm) | |||||
| Repeatability | ≤ 0.1dB(1000 times) | |||||
| Durability | > 1000 times | |||||
| Operating Temperature | -40°C ~ +85°C | |||||
Fiber Optic Network Cable Ordering Information:
Step 1: Connector Type: SC, LC,ST, FC, MTRJ, MU, MPO, MTP
Step 2: Ferrule End-face: PC, UPC or APC
Step 3: Fiber Type: Single Mode(SM) or Multimode(MM)
Step 4: Cable Core: Simplex or Duplex
Step 5: Cable Diameter: 0.9mm, 2.0mm, 3.0mm...
Step 6: Cable Length: 1, 2, 3 meter or customized
Step 7: Cable Type: PVC, LSZH, OFNR, OFNP…
Step 8: Cable color: Yellow, Orange, White, Blue, Green, Red, ...
Fiber Optic Network Cable Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
Our service:
- Standard and customized OEM products from small to large quantity are welcome.
- Compliance with global environmental industry with RoHS and SGS standards.
- All products are 100% fully tested by our technical expertise.
- Our patch cord warranty period is one year.
Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
