OM3 Type Fiber Optic Patch Cord Duplex 2.0mm Fiber Patch Cable
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS, SGS, ISO9001 |
| Model Number: | FP-OM3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T, , Monthly settlement |
| Supply Ability: | 7000pcs/Day |
|
Detail Information |
|||
| Model Name: | LC OM3 Type Fiber Optic Patch Cord Duplex 2.0mm Fiber Patch Cable | Connector: | SC FC ST LC MPO MU MTRJ D4 SMA... |
|---|---|---|---|
| Fiber Type: | Singlemode, Multimode | Fiber Count: | 1~144 Multi-fibers |
| Cable Diameter: | 0.9mm, 2.0mm, 3.0mm | Cable Type: | PVC LSZH OFNR OFNP |
| Color: | Colors | ||
| High Light: | OM3 Type Fiber Optic Patch Cord,2.0mm Fiber Optic Patch Cord,2.0mm Fiber Patch Cable |
||
Product Description
OM3 Type Fiber Optic Patch Cord Duplex 2.0mm Fiber Patch Cable

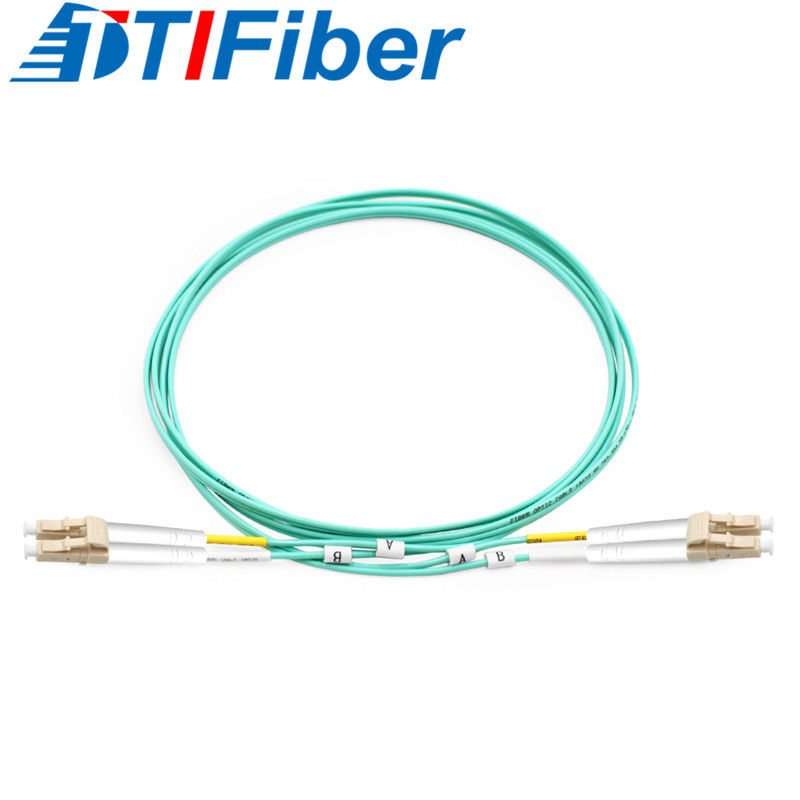

LC/UPC-LC/UPC OM3 Type Fiber Optic Patch Cord Duplex 2.0mm Fiber Patch Cable
Fiber Patch Cable Features and Options
-
Simplex, duplex or multi fiber assemblies
-
Jacket types: Riser, PVC, Plenum rated, or LSZH (Low Smoke Zero Halogens) and are all RoHS cables
-
Custom fiber optic cable lengths and jacket colors
-
Various fiber types and wavelengths, typical 9/125 single-mode, 50/125 multimode and 62.5/125 multimode
-
0.9mm / 1.8mm / 2.0mm / 3.0mm outer diameter fiber optic cables
-
PC, UPC, and APC polish types
-
Good packing, competitive prices and very fast delivery
With the on-site, precision manufacturing equipment and our skilled workers, our LC/UPC to LC/UPC fiber optic patch cable are reliable and 100% tested according to industrial and international standards, these LC-LC fiber cables are with flexible customization, good prices and very prompt delivery.
Fiber Patch Cable Features:
-
Meets ROHS and Bell core GR 326-core standards
-
Custom Configurations Available at No Extra Charge
-
Available in fiber bunch, ribbon fan-out, pigtail available
-
FC, LC, ST, SC, MTRJ, MU, MPO, D4, SMA optional
-
Ferrule of end-face: PC, UPC, APC
-
PVC, LSZH, OFNR, OFNP fiber cable optional
-
Factory 100% test before shipment
-
Low insertion loss and high return loss
-
Serialized & Individual Test Records
Fiber Patch Cable Applications:
-
Suitable for fiber optic patch panel
-
Telecommunication networks
-
Fiber optic communication networks
-
CATV, LAN, WAN, Test &Measurement
Fiber Patch Cable Specification:
|
Parameter |
Single Mode |
Multi Mode |
||||
|
Basic |
Fiber connector |
FC, SC, LC, ST, MU, MTRJ, MPO |
||||
|
Ferrule End-face |
PC |
UPC |
APC |
UPC |
||
|
Insertion Loss |
≤0.2dB |
≤0.2dB |
≤0.3dB |
≤0.2bB |
||
|
Return Loss |
≥50dB |
≥55dB |
≥60dB |
≥35dB |
||
|
Ceramic Ferrule Specification |
125.5um concentricity deviations:<=1um |
127um concentricity deviations:<=3um |
||||
|
Suitable Fiber |
9/125um |
50/125um,62.5/125um |
||||
|
End-face Geometry |
Radius of Curvature |
7~25mm |
5~12mm |
N/A |
||
|
Fiber Protrusion |
≤50nm |
≤100nm |
N/A |
|||
|
Fiber Under Cut |
≤100nm |
≤100nm |
N/A |
|||
|
Apex offset |
≤50um |
|||||
|
Mechanical |
Exchangeability |
≤0.2dB |
||||
|
Salt Spray |
≤0.1dB |
|||||
|
Drop |
≤0.2dB(1.5M, 5 drops) |
|||||
|
Vibration |
IL ≤0.2dB(550Hz, 1.5mm) |
|||||
|
Repeatability |
≤ 0.1dB(1000 times) |
|||||
|
Durability |
> 1000 times |
|||||
|
Operating Temperature |
-40°C ~ +85°C |
|||||
Fiber Patch Cable Ordering Information:
Step 1: Connector Type: SC, LC,ST, FC, MTRJ, MU, MPO, MTP
Step 2: Ferrule End-face: PC, UPC or APC
Step 3: Fiber Type: Single Mode(SM) or Multimode(MM)
Step 4: Cable Core: Simplex or Duplex
Step 5: Cable Diameter: 0.9mm, 2.0mm, 3.0mm...
Step 6: Cable Length: 1, 2, 3 meter or customized
Step 7: Cable Type: PVC, LSZH, OFNR, OFNP…
Step 8: Cable color: Yellow, Orange, White, Blue, Green, Red, ...
Fiber Patch Cable Shipping:
-
Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
-
Airport to Airport: by air
-
Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
Our service:
-
Standard and customized OEM products from small to large quantity are welcome.
-
Compliance with global environmental industry with RoHS and SGS standards.
-
All products are 100% fully tested by our technical expertise.
-
Our patch cord warranty period is one year.
Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
