G652d Multimode Fiber Patch Cable 1F SC/UPC Drop 1 Core Fiber Count Customized Length

G652d Multimode Fiber Patch Cable 1F SC/UPC Drop 1 Core Fiber Count Customized Length

    • G652d Multimode Fiber Patch Cable 1F SC/UPC Drop 1 Core Fiber Count Customized Length
    • G652d Multimode Fiber Patch Cable 1F SC/UPC Drop 1 Core Fiber Count Customized Length
  • G652d Multimode Fiber Patch Cable 1F SC/UPC Drop 1 Core Fiber Count Customized Length

    Product Details:

    Place of Origin: Chinaland
    Brand Name: TTI
    Certification: RoHS,SGS
    Model Number: Patch Cord

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: Negotiation
    Packaging Details: 1pcs/PE Bag
    Payment Terms: L/C, D/P, T/T, Western Union
    Supply Ability: 5000pcs/day
    Contact Now
    Detailed Product Description
    Model Number: Patch Cord Length: Customized
    Insertion Loss: < 0.35dB Ferrule End-face: UPC
    Fiber Type: G652d Operating Temperature: -20°C To +80°C
    Fiber Count: 1 Core

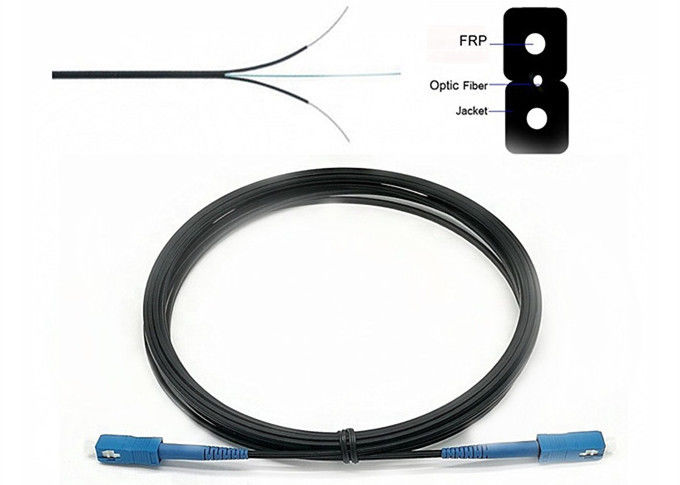

    Fiber Optical Patch Cord 1F SC/UPC Drop Cable Fiber Optic Patch Cord



    Fiber Optical Patch Cord 1F SC/UPC Drop Cable Fiber Optic Patch Cord



    Desciption:



    Armored patch cord can be laid in all kinds of environmental extremes. It is used without protection tube which saves space and is quite convenient for maintenance. Also it has the construction including stainless steel tube which protects optical fiber and provide better security for the whole system.





    Features:

    • 1; The connectors are comply with IEC, Telcordia-GR-326-Core standards;

      2; Different size & color boot option;

      3; Low insertion loss; High return loss;

      4; 100% interferometer measurement;

      5: Typical IL≤0.20dB;

      6. Max IL≤0.25dB;

      7. RL SM≥50dB, APC≥60dB, MM≥20dB.

      8. Durability(500mating time): IL≤0.25dB.

      9. Operating / storage temperature:- 20~+70°C



    Applications:



    • Machine room
    • FTTH
    • Area network
    • Test equipment
    • National defense
    • FO sensor
    • Light communication system
    • Common antenna TV system



    Specification:

    Item Multimode
    Ferrule End-face PC UPC
    Insert attenuation ≤0.3dB ≤0.3dB
    Return loss ≥35dB ≥40dB
    repeatability ≤0.1dB ≤0.1dB
    Operation temperature -20°C~+70°C(PVC)/-40°C~+90°C(LSZH/PU)
    Outer diameter 0.9mm, 2.0mm, 3.0mm






    Our service:

    1. Standard and customized OEM products from small to large quantity are welcome.
    2. Compliance with global environmental industry with ROHS and SGS standards.
    3. All products are 100% fully tested by our technical expertise before shipping.
    4. We provide fiber optic loopbacks according to industry standard.
