12 Cores Single Mode Fibre Patch Leads LC / UPC Connector 9/125 UPC Ferrule End Face
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI |
| Certification: | CE/ISO9001 |
| Model Number: | fiber optic patch cord |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PE |
| Delivery Time: | 2-3 working days |
| Payment Terms: | L/C, T/T, Paypal |
| Supply Ability: | 2000m/day |
|
Detail Information |
|||
| Product Name: | Fiber Optical Patch Cord | Connector: | LC |
|---|---|---|---|
| Ferrule End Face: | UPC | Core Type: | Singlemode |
| Fiber Count: | 12 Cores | Diameter: | 3.0mm |
| Out Sheath: | LSZH | Length: | Customized |
| Application: | Communication Network | Warranty: | 3 Years |
| High Light: | multimode fiber patch cord,fiber optic network cable |
||
Product Description
12 cores Fiber Optic Patch Cord LC / UPC Connector 9/125 Singlemode Fiber Cable
Application
· Used in pigtails and patch cords;
· Used in optical connections in optical communication equipment rooms and optical distribution frames;
· Used in optical connections in optical apparatus and equipments
Characteristics
· Good mechanical and environmental characteristics;
· Flame retardant characteristics meets the requirements of relevant standards;
· The mechanical characteristics meet the requirements of relevant standards;
· Soft, flexible, easy to splice, and with big capacity data transmission;
· Meet various requirements of market and clients
Specification
| Characteristic | SM , MM | |||
| Connector type | FC/SC/ST/LC/MU/MT-RJ/ESCON | |||
| Diameter(mm) | 0.9,2.0,3.0 | |||
| Polishing grade | SM PC | MM PC | UPC | APC |
| Insertion loss | ≤0.3dB | ≤0.4dB | ≤0.2dB | ≤0.3dB |
| Return loss | ≥40dB | ≥50dB | ≥65dB | |
| Interchangeability | ≤0.2dB | |||
| Repeatability | ≤0.2dB | |||
| Operation temperature | -40~+80 | |||

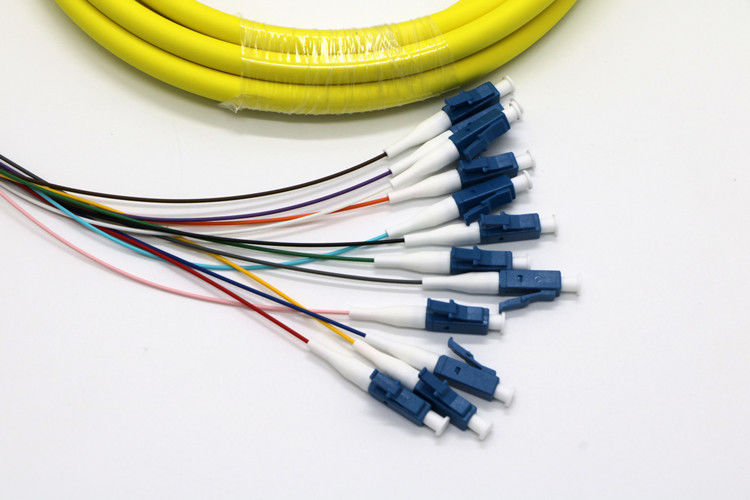

Product pictures
