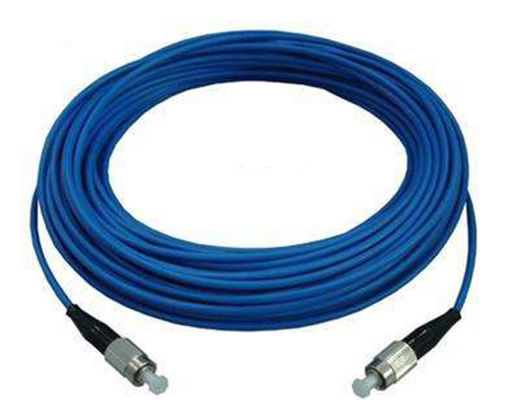

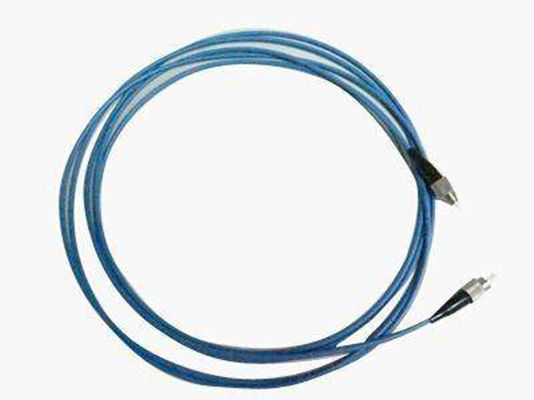

Armoured optical fiber pigtail Fiber Optic Patch Cord cable CE ROHS Certicated

Armoured optical fiber pigtail Fiber Optic Patch Cord cable CE ROHS Certicated

    • Armoured optical fiber pigtail Fiber Optic Patch Cord cable CE ROHS Certicated
    • Armoured optical fiber pigtail Fiber Optic Patch Cord cable CE ROHS Certicated
    • Armoured optical fiber pigtail Fiber Optic Patch Cord cable CE ROHS Certicated
  • Armoured optical fiber pigtail Fiber Optic Patch Cord cable CE ROHS Certicated

    Product Details:

    Place of Origin: China
    Brand Name: TTI
    Certification: CE ROHS
    Model Number: Armoured

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Pieces
    Price: US $0.2-0.5 / Piece
    Packaging Details: PE BOXES
    Delivery Time: 2-3 Days
    Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram,Paypal
    Supply Ability: 10000 Pieces/Day
    Contact Now
    Detailed Product Description
    Name: Fiber Patch Cord Connector: SC FC LC ST E2000,MU MTRJ
    Polishing: APC/UPC/PC Fiber: SM MM
    Color: Yellow Orange Aqua Pink Jacket: PVC LSZH
    Application: FTTH FTTB FTTX Network Material: ABS
    Diameter: 0.9mm,2mm,3mm Warranty: 3 Year

    Armoured optical fiber pigtail patch cord cable CE ROHS Certicated

    Armoured Patch cord



    This cable is constructed from an aluminum interlocking exterior shell jacket that is nearly crush-proof and gives this cable it's armored status. Inside features the durable indoor/outdoor jacket which protects the strands of singlemode 9/125 Corning glass. At each end, we transition from the armored shell to the indoor/ourdoor jacket using heatshrink to seal off the ends. We transition from the indoor/outdoor jacket to the individual strands which we protect with furcation tubing. On cables with lengths in excess of 30 meters, we generally include the mesh pull sock to ensure a safe installation without tugging on the fiber legs. Each leg is at least 18" in length and we stagger them in pairs to make the fiber pull run smoothly. Whether you're looking for MIL-TAC Tactical fiber or rodent proof fiber, this cable provides the best protection available.

    ll dry outside plant stranded loose tube cables deliver the same proven quality and performance offered in all CommScope cabling solutions. The armored and all-dielectric designs are suitable for direct buried, aerial and conduit applications. The construction features the use of dry water blocking elements and reduced diameter buffer tubes, yielding a light weight, smaller cable. The result is a fiber optic cable that is an ideal transmission medium for the outside plant environment. These designs are available with any of the high performance CommScope fiber types, including TeraSPEED Zero Water Peak single-mode fiber and the LazrSPEED multimode fibers. The standard jacket material is Medium Density Polyethylene (MDPE), with an optional High Density Polyethylene (HDPE) jacket available. Additionally, the fiber and buffer tubes are color coded for easy identification. The CommScope all dry cable construction removes the need for filling gels and flooding compounds from the cable. This significantly reduces cable preparation time and eliminates the need for solvents and other consumables during cable preparation. These cables are designed to improve the cleanliness of the work environment and provides full water blocking protection for outside plant applications.

    Features:

    1. 100% test before shipment
    2. Low insertion loss and high return loss
    3. Serialized & Individual Test Records
    4. Meets ROHS and Bell core GR 326-core standards
    5. Custom Configurations Available at No Extra Charge
    6. Available in fiber bunch, ribbon fan-out, pigtail available


    Applications:

    1. Optical access network
    2. Data processing networks
    3. Premise installations
    4. Telecommunication networks
    5. Fiber optic communication networks
    6. CATV, LAN, WAN, Test &Measurement



    Type Single Mode PC Single Mode APC Multimode
    Insertion Loss ≤0.20dB ≤0.20dB ≤0.20dB
    Return Loss ≥55dB ≥75dB ≥45dB
    Storage Temperature - 40℃ to +90℃
    Working Temperature - 40℃ to +85℃
    Repeatability of IL

    ≤0.1dB



    Armoured optical fiber pigtail Fiber Optic Patch Cord cable CE ROHS Certicated
