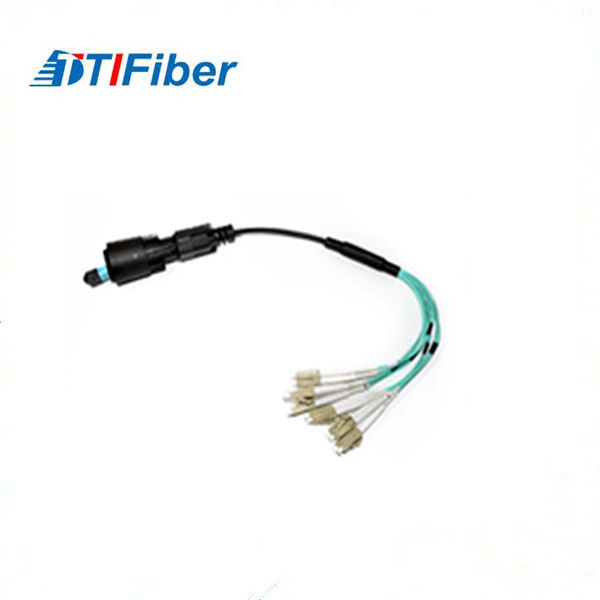

Colorful Multimode Patch Cable OM3 Multimode 4G/5G MPO To LC For Telecommunication

Colorful Multimode Patch Cable OM3 Multimode 4G/5G MPO To LC For Telecommunication

    • Colorful Multimode Patch Cable OM3 Multimode 4G/5G MPO To LC For Telecommunication
    • Colorful Multimode Patch Cable OM3 Multimode 4G/5G MPO To LC For Telecommunication
  • Colorful Multimode Patch Cable OM3 Multimode 4G/5G MPO To LC For Telecommunication

    Product Details:

    Place of Origin: China Mainland
    Brand Name: TTI
    Certification: ROHS, SGS
    Model Number: FPC-MPO

    Payment & Shipping Terms:

    Minimum Order Quantity: 20
    Price: Negotiation
    Packaging Details: 1pcs/PE bag
    Delivery Time: in 2-4 days
    Payment Terms: T/T, Western Union, ESCROW, PayPal, Monthly settlement
    Supply Ability: 7000pcs/Day
    Contact Now
    Detailed Product Description
    Name: Fiber Optic Patch Cord Color: Colorful
    Insulation: PVC LSZH, OFNR, OFNP Ferrule End-face: Upc/apc
    Mode: OS1, OS2, OM1, OM2, OM3, OM4 Cable Core: 8core 12core, 24core Optional
    Application: Telecommunication And Data Processing Networks

    Colorful Multimode Patch Cable OM3 Multimode 4G/5G MPO To LC For Telecommunication



    Quick Details:

    1. Name: MPO - LC fiber optic patch cord
    2. Ferrule End-face: UPC, APC
    3. Mode: OS1, OS2, OM1, OM2, OM3, OM4
    4. Cable Jacket: PVC LSZH, OFNR, OFNP
    5. Cable Type: Ribbon fiber optic cable, Flat and Round
    6. Cable core: 8core 12core, 24core optional



    Desciption:

    MTP/MPO fiber optic patch cord is used in Ribbon type multi fiber assemblies, unlike simplex or duplex. There are several fiberglass connections in one MTP/MPO fiber optic patch cord, for example, 4 fibers, 8 fibers, 12fibers, 24 fibers.



    Features:

    1. High reflection loss
    2. Fiber in single connector: 4, 8, 12, 24core
    3. Insert/Pull latching connector
    4. Comply with Telcordia GR-1435-CORE specification and Rosh standard
    5. High fiber density (maximum 24 fibers for Multimode)
    6. Single mode and Multimode (Flat/Round) available



    Applications:

    1. Premise Installations
    2. FTTH , CATV, LAN, MAN, WAN, Test &Measuremen
    3. Telecommunication and Data processing Networks
    4. Video transmission , Data transmission
    5. Active Device Termination



    Specification:



    Fiber Connector

    Connector A
    Connector Type 12 or 24 -Fiber MPO /MTP
    Ferrule of end-face UPC, APC
    Housing Color MM (Beige/Aqua), SM (Yellow/Green)
    Insertion Loss, Typical ≤ 0.10 dB
    Insertion loss, max. ≤ 0.35 dB
    Durability(500 Matings) < 0.2dB
    Connector B
    Connector Type LC/SC
    Ferrule of end-face UPC, APC
    Housing Color Blue, Beige, Aqua
    Insertion Loss, Typical ≤ 0.10 dB
    Insertion loss, max. ≤ 0.35 dB
    Durability(1000 Matings) < 0.2dB



    Fiber Cable

    Fiber Type OS2, OM1, OM2, OM3, OM4
    Fiber Count 12, 24 cores
    Outer diameter 12cores: 4.5±0.2mm ; 24cores:5.4±0.2mm
    Outer jacket Colour OS2(Yellow),OM2(Orange),OM3(Aqua),OM4(Violet)
    Outer jacket material LSZH,OFNP,OFNR
    Tensile strength 500N
    Operating Temperature -20 ~ +60°C
    Storage Temperature -40 ~ +70°C



    Packing:

    One piece per PE bag with stick label (we could add customer's logo in the label.)



    Shipping:

    1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
    2. Airport to Airport: by air
    3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)



    Colorful Multimode Patch Cable OM3 Multimode 4G/5G MPO To LC For TelecommunicationColorful Multimode Patch Cable OM3 Multimode 4G/5G MPO To LC For TelecommunicationColorful Multimode Patch Cable OM3 Multimode 4G/5G MPO To LC For Telecommunication



    1.Why choose TTI FIBER ?
    (1)Professional manufacturer: Low MOQ, free samples are available.
    (2)Quality assurance:Stable high quality.
    (3)Customers solutions:Quick.
    (4)Win-Win Price:Save much costs, bring more benefits for customers.

    2.Do you accept OEM,ODM?
    Yes, we accept them .

    3.Can you print our LOGO?
    Sure, Your LOGO can be printed on the boxes , or products.

    4.What's the method of shipment?
    We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.

    5.What's the Payment?
    We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.
