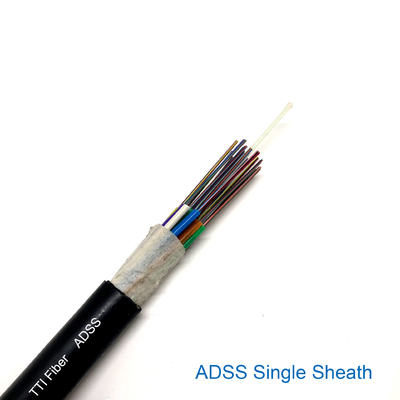

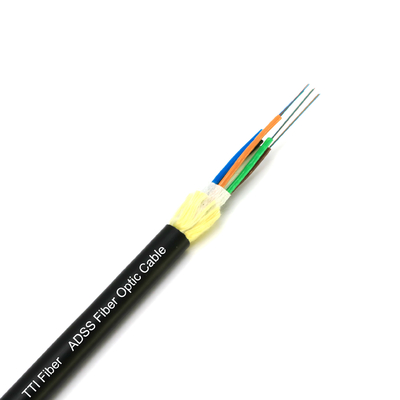

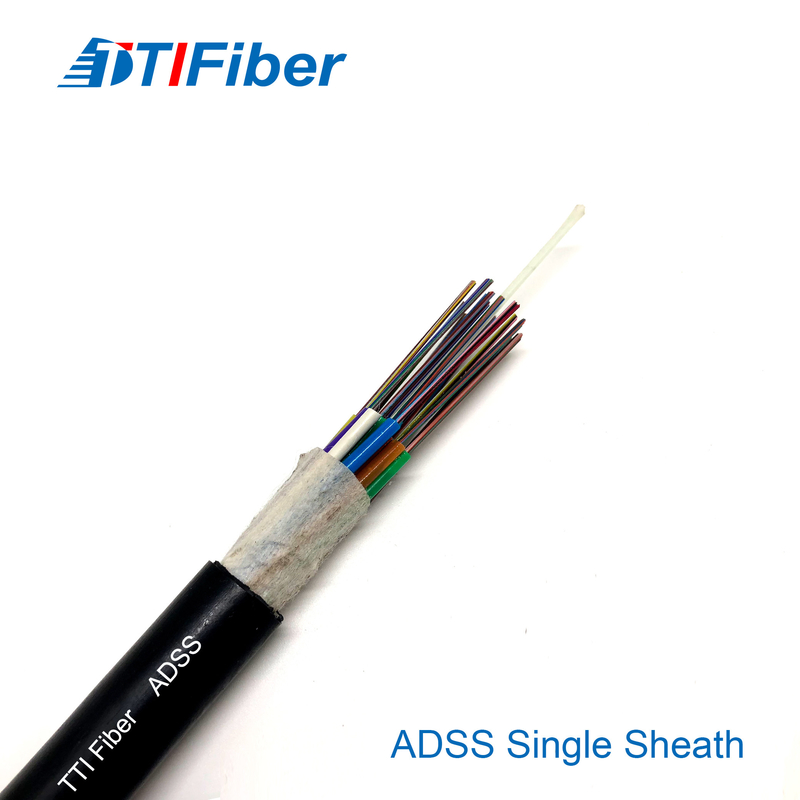

Adss G652d Single Mode Aerial Optic Fiber Cable 6 / 12 / 48 / 96 / 144 Core
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI |
| Certification: | CE RoHS ISO9001 |
| Model Number: | ADSS |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden drum |
| Delivery Time: | 3-7 work days |
| Supply Ability: | 10000 Meter/Meters per Week |
|
Detail Information |
|||
| Application: | Telecommunication | Fiber Type: | Singlemode |
|---|---|---|---|
| Material: | PE | Color: | Black |
| Central Strength Member: | FRP | Type: | ADSS Cable |
| Sheath: | Single | Fiber: | G652D |
| High Light: | Singlemode Aerial Optic Fiber Cable,PE Aerial Optic Fiber Cable,Single Mode Fiber Optic Cable G652d |
||
Product Description
Outdoor 6/12/24/36/48/96/144 Core Adss G652d Manufacturers Price Aerial Single Mode Cable Optic Fiber Cable
Description:

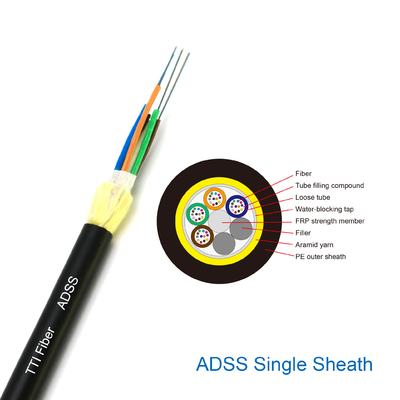

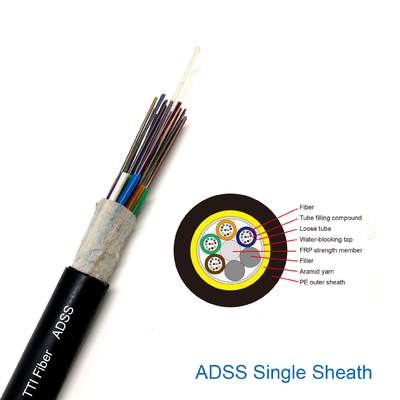

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound.It is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Characteristics:
1. Small cable diameter(adapt for bad climate), light weight, 100m span, low attached load on tower.
2. Non-metal structure, good insulation, anti-thunder.
3. Fine production technology, even force for aramid yarn, with superior stress flexibility.
| Number of fiber | 24-144core | |||||||
| Filling rope | 2-0 | |||||||
| Moisture Barrier | Water blocking system | |||||||
| Central strength member | material | FRP/FRP with PE | ||||||
| size | 2.1mm | |||||||
| Tube-filling | Tube filling compoun | |||||||
| filler | PP tube/ PVC tube | |||||||
| Inner sheath | material | PE | ||||||
| Loose tube | material | PBT | ||||||
| diameter | 2.2(outer/inner) | |||||||
| Outer armored | material | Aluminium tape/Corrugated steel tape | ||||||
| Outer sheath | material | PE/HDPE | ||||||
| diameter | 1.7±0.2mm | |||||||
Cable Mechanical characteristic
| core | Cable diameter | weight | |||||
| 2 core to 60core | 12±0.5mm | 140±5kg/km | |||||
| 72core | 13±0.5mm | 190±5kg/km | |||||
| 96core | 14.5±0.5mm | 220±5kg/km | |||||
| 144core | 16.5±0.5mm | 240±10kg/km | |||||
| Rec.daily max working tension | 88kn | ||||||
| Max. Allowable working tension | 32.7kn | ||||||
| Modulus of elasticity | 37kn/mm2 | ||||||
| Min Bending Radius(mm) | operation | 240mm | |||||
| installation | 390mm | ||||||
| Extra load | Extra load 0.5%-0.7% | ||||||
| Ice | 5mm | ||||||
| Wind speed | 35m/s |
||||||
