GJFSH Indoor Non Metallic SM G652D Fiber Optic Cable For FTTH
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI |
| Model Number: | GJFSH Indoor Fiber Cable |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Package(Surport OEM/ODM) |
| Delivery Time: | 5-8 Work Days |
| Payment Terms: | D/A, D/P, T/T... |
| Supply Ability: | 100000 meters |
|
Detail Information |
|||
| Product Name: | GJFSH Fiber Optical Cable | Application: | Indoor |
|---|---|---|---|
| Color: | White | Material: | LSZH |
| Fiber Type: | G652D | Fiber Count: | 1/2 |
| Wavelength: | 1310nm Or 1550nm | Use: | FTTX |
| Length: | Customizted | Quality Control: | 100% Test Before Shipping |
| Package: | Wooden Ram | ||
| High Light: | Indoor FTTH Fiber Optic Cable,Non Metallic FTTH Fiber Optic Cable,Non Metallic Ftth Optical Fiber Cable |
||
Product Description
GJFSH Indoor Non Metallic SM G652D Fiber Optic Cable For FTTH
1. Specification:
The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic.
The tubes are filled with a water-resistant filling compound.
The tube is wrapped with a layer of corrugated steel tape longitudinally. Between the corrugated
steel tape and the loose tube water-blocking material is applied to keep the cable compact
and watertight. Two parallel steel wires are placed at the two sides of the steel tape.
The cable is completed with PE sheath.
| G652D | G655 | 50/125μm | 62.5/125μm | ||
| Attenuation(+20deg C) | @850nm | ≤ 3.0dB/KM | ≤ 3.0 dB/KM | ||
| @1300nm | ≤ 1.0dB/KM | ≤ 1.0 dB/KM | |||
| @1310nm | ≤ 0.36 dB/KM | -- | |||
| @1550nm | ≤ 0.22 dB/KM | ≤0.23dB/km | |||
| Bandwidth(Class A) | @850nm | ≥ 500 MHz-KM | ≥200 MHz-KM | ||
| @1300nm | ≥1000 MHz-KM | ≥600 MHz-KM | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ||||
2. Feature:
(1) Good mechanical and temperature performance
(2) High strength loose tube that is hydrolysis resistant
(3) Special tube filling compound ensure a critical protection of fiber
(4) Two parallel FRPs ensure tensile strength
(5) PE sheath protects cable from ultraviolet radiation
(6) Small diameter, light weight and friendly installation
(7) Long delivery length
3. Application:
- Frequent lightning area and anti electric field : The subway, tunnel
- Long-distance communication: Local trunk network & User network
- Duct and direct buried application
- Harsh environment

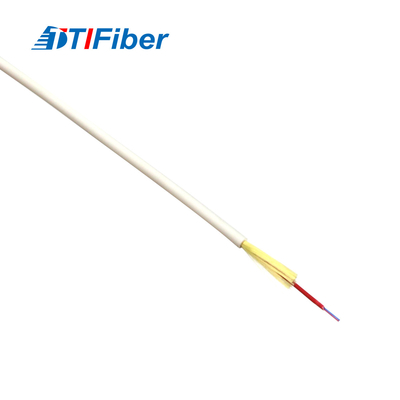

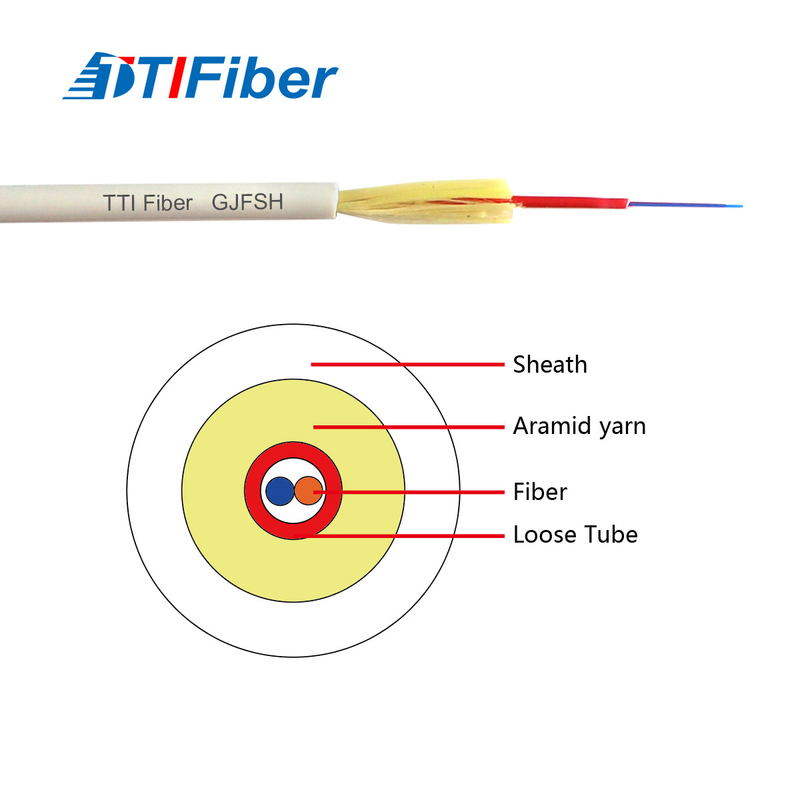

4. Product Picture:
5. FAQ:
1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.
2. Do you accept OEM,ODM?
Yes, we accept them .
3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
5. What's the Payment?
We accept all online payments .
