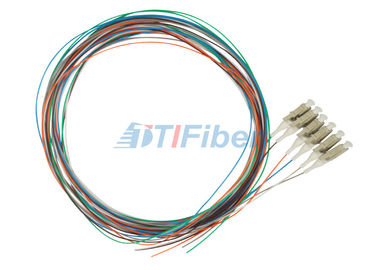

Splicing LC Multimode Fiber Optical Pigtail , 0.9mm 12 colors Fiber Cable

Splicing LC Multimode Fiber Optical Pigtail , 0.9mm 12 colors Fiber Cable

    • Splicing LC Multimode Fiber Optical Pigtail , 0.9mm 12 colors Fiber Cable
    • Splicing LC Multimode Fiber Optical Pigtail , 0.9mm 12 colors Fiber Cable
    • Splicing LC Multimode Fiber Optical Pigtail , 0.9mm 12 colors Fiber Cable
    • Splicing LC Multimode Fiber Optical Pigtail , 0.9mm 12 colors Fiber Cable
  • Splicing LC Multimode Fiber Optical Pigtail , 0.9mm 12 colors Fiber Cable

    Product Details:

    Place of Origin: Guangdong, China
    Brand Name: TTI
    Certification: ROHS, SGS, ISO9001
    Model Number: FP-LC

    Payment & Shipping Terms:

    Minimum Order Quantity: 20pcs
    Price: Negotiation
    Packaging Details: 1PCS/PE Bag
    Delivery Time: 3-5days
    Payment Terms: T/T, Western Union, Monthly settlement
    Supply Ability: 7000pcs/Day
    Detailed Product Description
    Model Name: Fiber Optic Pigtail Cable Jacket: PVC LSZH OFRR OFNP
    Cable: 0.9mm 1.5meters 12colors

    Splicing LC Multimode Fiber Optical Pigtail , 0.9mm 12 colors Fiber Cable







    Features:



    Simplex and Duplex assemblies available
    PC, UPC polishing available
    Loopback available
    Customized lengths upon request
    100% tested before shipping

    PVC and LSZH outer sheath.
    0.9mm, 2.0mm and 3.0mm cable size.
    Hybrid patch cords are available upon request
    Fan-out available (Ribbon type / bundle type)





    Applications:


    Telecommunication networks

    ODF of optical transmission systems
    FTTX FTTH FTTD applications
    Data transmission networks
    Computer networks (Gigabit Ethernet, SoNet, etc. )
    Interconnection of fiber optic transmission equipments





    Specification:





    Parameter Single Mode Multi Mode
    Basic Fiber connector FC, SC, LC, ST, MU, MTRJ, MPO
    Ferrule End-face PC UPC APC UPC
    Insertion Loss ≤0.2dB ≤0.2dB ≤0.3dB ≤0.3bB
    Return Loss ≥50dB ≥55dB ≥60dB ≥35dB
    Ceramic Ferrule Specification 125.5um concentricity deviations:<=1um 127um concentricity deviations:<=3um
    Suitable Fiber 9/125um 50/125um,62.5/125um
    End-face Geometry Radius of Curvature 7~25mm 5~12mm N/A
    Fiber Protrusion ≤50nm ≤100nm N/A
    Fiber Under Cut ≤100nm ≤100nm N/A
    Apex offset ≤50um
    Mechanical Exchangeability ≤0.2dB
    Salt Spray ≤0.1dB
    Drop ≤0.2dB(1.5M, 5 drops)
    Vibration IL ≤0.2dB(550Hz, 1.5mm)
    Repeatability ≤ 0.1dB(1000 times)
    Durability > 1000 times
    Operating Temperature -40°C ~ +85°C





















































    Ordering Information:



    Step 1: Connector Type: FC, SC, LC, , MTRJ, MU, MPOST

    Step 2: Ferrule End-face: PC, UPC or APC

    Step 3: Fiber Type: Single Mode(SM) or Multimode(MM)

    Step 4: Cable Core: Simplex or Duplex

    Step 5: Cable Diameter: 0.9mm, 2.0mm or 3.0mm

    Step 6: Cable Length: 1, 2, 3 meter or customized

    Step 7: Cable Type: PVC, LSZH, OFNR, OFNP…

    Step 8: Cable color: Yellow, Orange, White, Blue, Green, Red, ...



    Shipping:

    1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
    2. Airport to Airport: by air
    3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)



    Our service:

    1. Standard and customized OEM products from small to large quantity are welcome.
    2. Compliance with global environmental industry with RoHS and SGS standards.
    3. All products are 100% fully tested by our technical expertise.
    4. Our patch cord warranty period is one year.



    Packing:

    One piece per PE bag with stick label (we could add customer's logo in the label.)



    Splicing LC Multimode Fiber Optical Pigtail , 0.9mm 12 colors Fiber Cable
    Splicing LC Multimode Fiber Optical Pigtail , 0.9mm 12 colors Fiber CableSplicing LC Multimode Fiber Optical Pigtail , 0.9mm 12 colors Fiber Cable
