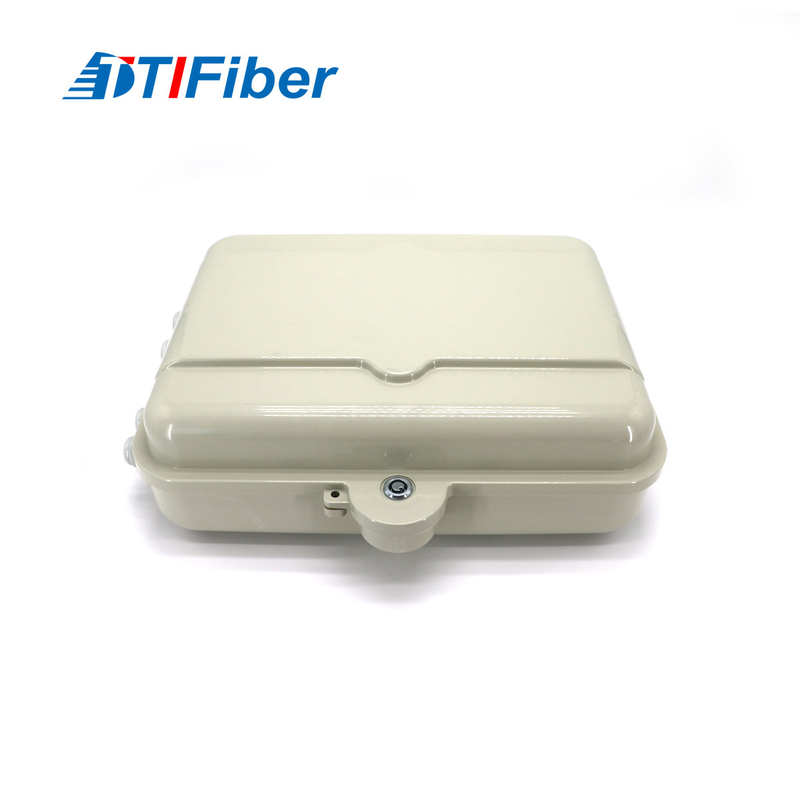

48ports FTTH Fiber Optic Outdoor Distribution Box Wall Mount Type And Pole
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | TTI |
| Certification: | ROHS, SGS, ISO9001 |
| Model Number: | 48 core FTTH distribution Box |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | in Bubble bag then in carton |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T, , paypal |
| Supply Ability: | 5000/week |
|
Detail Information |
|||
| Color: | Grey | Material: | ABS |
|---|---|---|---|
| Fiber: | 48cores | Type: | Wall Mounted |
| Modle: | 48 Core FTTH Distribution Box | Certificate: | ROHS, SGS, ISO9001 |
| High Light: | 48ports Ftth Distribution Box,Outdoor Distribution Box Wall Mount Type,48ports FTTH Fiber Optic Distribution Box |
||
Product Description
48ports FTTH fiber optic outdoor distribution box wall mount type and pole

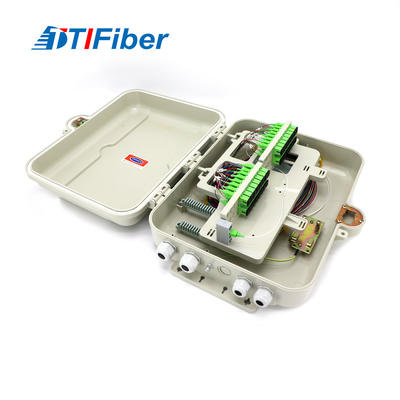

Distribution box Type outdoor Optical Distribution Boxes is designed to connect feeder/distribution cable to subscriber's drop cable using PLC splitter in FTTx networks. It has 2 input ports and 2 output ports on the bottom and it is easy to install on the wall or pole. The rear tray is for splicing a fiber of feeder cable with PLC splitter and the front tray is for connecting subscriber's drop cable through adaptor plate on the tray.
Features:
High strength composite material (SMC) or engineering plastic injection molding, good mechanical performance, elegant appearance, sturdiness and durability .
Suitable for indoor and outdoor , wall-mounted, pole, aerial installation .
Splitter type: insertion splitter 1: 4/6/8/12/24/36/48 Port
Turn-over structure, layout is reasonable with splicing zone below and distribution zone above .
FC,SC,and LC adapters available, modular design, convenient for fixation and maintenance .
Fiber route reasonable, fiber bending radius at any place is greater than 30 mm .
The mark is clear on each fiber connection and distribution .
The door opening angle is greater than 120 degree for easy operation and maintenance .
The splice tray can be taken down and put on the bench for splicing, convenient operation .
The redundant fiber is wound and protected.
Installation:Wall hanging
1 According to the backplane mounting hole’s distance, hit 4 mounting holes on the wall, and knock the plastic expansion sleeve.
2 Fixed the box on the wall with M8 * 40 screws.
3 Position the upper end of the box into the wall hole, and then use M8 * 40 screws fix the box on the wall.
4 Check the box installation, close the door after qualified. In order to prevent rainwater from entering the box, the box should be tightened by a key column.
5 Insert the outdoor optical cable and butterfly type optic cable according to the construction requirements.
