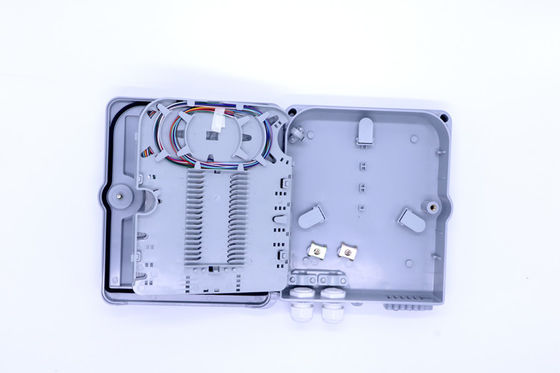

12 Cores ABS Fiber Optic Distribution Box Splitter ABS Material ISO Approval

12 Cores ABS Fiber Optic Distribution Box Splitter ABS Material ISO Approval

    • 12 Cores ABS Fiber Optic Distribution Box Splitter ABS Material ISO Approval
    • 12 Cores ABS Fiber Optic Distribution Box Splitter ABS Material ISO Approval
    • 12 Cores ABS Fiber Optic Distribution Box Splitter ABS Material ISO Approval
  • 12 Cores ABS Fiber Optic Distribution Box Splitter ABS Material ISO Approval

    Product Details:

    Place of Origin: Guangdong
    Brand Name: TTI
    Certification: ISO
    Model Number: 16 core Splitter Distribution Box

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Price: usd 8-10.00/pcs
    Packaging Details: in Bubble bag then in carton
    Delivery Time: 3-5days
    Payment Terms: Western Union, D/A, L/C, D/P, T/T
    Supply Ability: 5000/week
    Contact Now
    Detailed Product Description
    Name: Optical Splitter Distribution Box Color: White
    Material: ABS Working Tempriture: -40+80℃
    Fiber: 12core Type: Wall Mounted

    12 Core ABS Optical Splitter Outdoor Distribution Box Wall , ISO Approval



    Description:



    The Size:310(H)×265(W)×95(D)mm

    Suitable adapter: FC,SC,LC

    Cable diameter: 5-10 MM

    Max capacity of splice: 16cores

    Material:PC+ABS flame resistance 3mm

    Color: White/Grey/Black

    Working temperature: -40℃~+85℃

    Relative humidity: ≤90%(+30℃)

    Atmospheric pressure: 70Kpa~106 Kpa

    Insertion loss: ≤0.2Db

    Life of insertion and extraction: >1000 times

    Have 2 inlet ports,16 outlet ports .



    Installation:Wall hanging



    1 According to the backplane mounting hole’s distance, hit 4 mounting holes on the wall, and knock the plastic expansion sleeve.

    2 Fixed the box on the wall with M8 * 40 screws.

    3 Position the upper end of the box into the wall hole, and then use M8 * 40 screws fix the box on the wall.

    4 Check the box installation, close the door after qualified. In order to prevent rainwater from entering the box, the box should be tightened by a key column.

    5 Insert the outdoor optical cable and butterfly type optic cable according to the construction requirements.



    Application:



    CATV network

    FTTH access network

    Date communication network



    Product configuration list:



    Product name Models Quantity Remark
    Box 16 core FTTH terminal box 1pc
    Fiber heat shrinkable sleeve Ф1.5×40mm 16pcs
    Nylon cable ties 3×100mm 16pcs
    Expansion bolt M8×40mm 4pcs
    Key   1pc
    Certificate   1pc
    Instruction   1pc



    12 Cores ABS Fiber Optic Distribution Box Splitter ABS Material ISO Approval12 Cores ABS Fiber Optic Distribution Box Splitter ABS Material ISO Approval

    Shipping:

    1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
    2. Airport to Airport: by air
    3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
