TTIFiber Connector SC LC FC ST Fiber Optic Adapters For Ftth
Product Details:
| Place of Origin: | China, Guangdong, Shenzhen. |
| Brand Name: | TTIFIBER/OEM/ODM |
| Certification: | CE, RoHS, ISO9001 |
| Model Number: | Fiber Optic Adapter |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PE bag |
| Delivery Time: | Depend on qty, 3-20 working Days after received the payment |
| Payment Terms: | T/T, L/C, Western Union, PayPal |
| Supply Ability: | 20000pcs/day |
|
Detail Information |
|||
| Product Name: | Fiber Optic Adapter | OD: | 1.25/2.5mm |
|---|---|---|---|

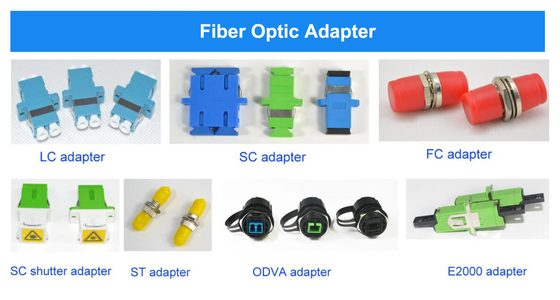

| Material: | Ceramic | Connector Type: | SC/LC/ST/FC/MTRJ/E2000 |
| Core Type: | Singlemode/multimode | Package: | PE Bag And Carton Box |
| High Light: | Ftth Fiber Optic Adapters,TTIFiber Fiber Optic Adapters,TTIFiber Fiber Optical Couplers |
||
Product Description
TTIFiber Wholesale Ftth Fiber Optical Couplers Connector SC LC FC ST Fiber Optic Adapters
Specification:
Outer diameter: (1.2499±0.0005)mm
Inner diameter: (0.125+0.001/-0)mm
Concentricity: 1.0μm
Insertion loss:≤0.2dB
return loss:≥60dB
length:(6.50±0.05)mm
Inner diameter: (0.125+0.001/-0)mm
Concentricity: 1.0μm
Insertion loss:≤0.2dB
return loss:≥60dB
length:(6.50±0.05)mm
Brief Introduction
Ferrule is generally treated as the core part of the connector. Ceramic ferrules are recognized to have the best durability and reliability among various kinds of material. Ferrule is the best connection way for a fiber communication at present. The connector is fitted with a locking latch retention mechanism, which protects the connector from accidental pulling off. Openable clips ensure easy assembly and disassembly. Singlemode fiber has a small core diameter that supports only one mode of light. The signal is traveling in a single light beam with close to no reflection. A low reflection ratio means lower dispersion.
Ferrule is generally treated as the core part of the connector. Ceramic ferrules are recognized to have the best durability and reliability among various kinds of material. Ferrule is the best connection way for a fiber communication at present. The connector is fitted with a locking latch retention mechanism, which protects the connector from accidental pulling off. Openable clips ensure easy assembly and disassembly. Singlemode fiber has a small core diameter that supports only one mode of light. The signal is traveling in a single light beam with close to no reflection. A low reflection ratio means lower dispersion.
The advantage of LC connector is little dimensions so it allows for very high packing density and makes it attractive for use in data centers and Central Offices. LC connector is also used in LAN, WAN, and LTTD networks, on the railway, telecommunications network, Cable Television, and measuring techniques. Cable Duplex which has application in this adapter, is used in cable ducts, cubicles, and pipes with low mechanical pressure.
Materail
Ferrule: Zirconia Ceramic
Flange: Ni-Plated Cu
Features:
Good compatibility
Accurate mechanical dimensions
Good reliability and stability
Compliant with RoHS, Bellcore, IEC
Accurate mechanical dimensions
Good reliability and stability
Compliant with RoHS, Bellcore, IEC
Application:
1.Excellent Optical Performance
2.Percision Aligment Ceramic sleeve
3.Extraordinary Stability
It can be used with fiber optic patch cords, which send high-speed data through a network. The adapter is a part of the optical path, it guarantees the stability of transmission parameters, and high-quality ceramic ferrule assures lower return loss.
Specification
| Parameter | Single Mode | Multi Mode |
| Outside Diameter | Ø2.4990 | |
| OD Tolerance | ±0.0005 | ±0.001 |
| Inner Diameter | Ø0.125 | |
| ID Tolerance | +0.001/0 | +0.004/0 |
| Ferrule Length | 10.5±0.05 | 10.5+0.05/-0.1 |
| Concentricity | ≤0.001 | ≤0.004 |
| End Curve Radius | 15+10/-5 | |

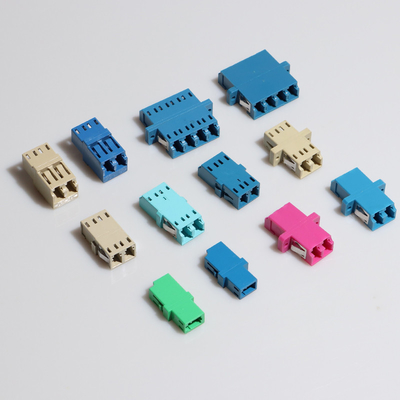

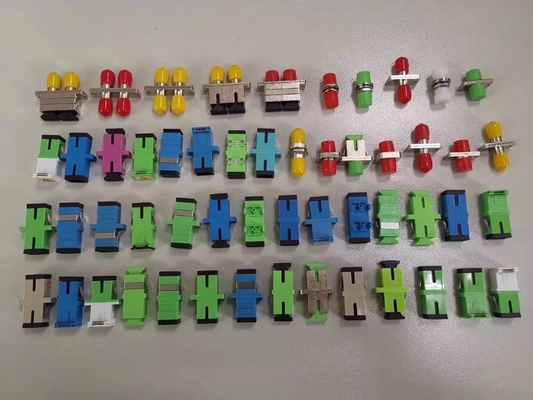

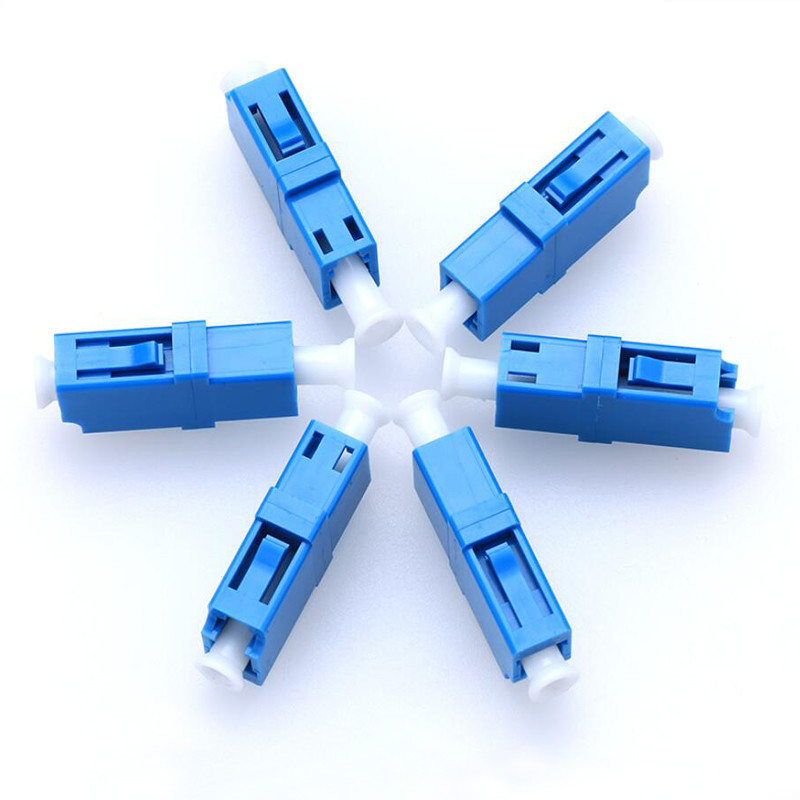

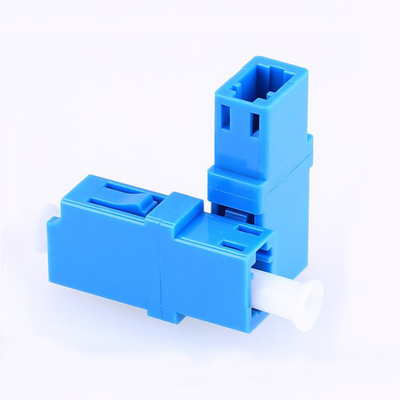

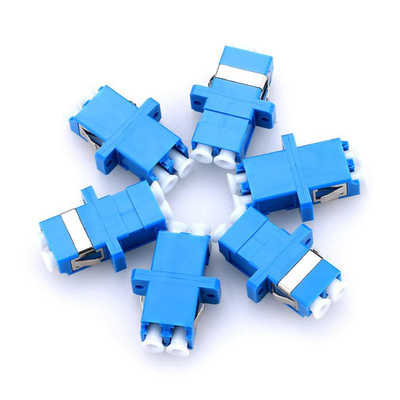

Product pictures:
Factory Show:
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
FAQ:
1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance: Stable high quality.
(3) Customers solutions: Quick.
(4) Win-Win Price: Save much costs, bring more benefits for customers.
2. Do you accept OEM,ODM?
Yes, we accept them .
3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes, or products.
4. What's the method of shipment?
We accept all shipment, such as Delievery, ocean transport, land transport, airport transport.
