Simplex Drop Cable Single mode FTTH Solution with SC Fast Connector

Simplex Drop Cable Single mode FTTH Solution with SC Fast Connector

    • Simplex Drop Cable Single mode FTTH Solution with SC Fast Connector
    • Simplex Drop Cable Single mode FTTH Solution with SC Fast Connector
    • Simplex Drop Cable Single mode FTTH Solution with SC Fast Connector
    • Simplex Drop Cable Single mode FTTH Solution with SC Fast Connector
  • Simplex Drop Cable Single mode FTTH Solution with SC Fast Connector

    Product Details:

    Place of Origin: China Mainland
    Brand Name: TTI
    Certification: ROHS, SGS
    Model Number: Drop Cable

    Payment & Shipping Terms:

    Minimum Order Quantity: 20
    Price: Negotiation
    Packaging Details: 1pcs/PE bag
    Delivery Time: in 2-4 days
    Payment Terms: T/T, Western Union, ESCROW, PayPal, Monthly settlement
    Supply Ability: 7000pcs/Day
    Contact Now
    Detailed Product Description

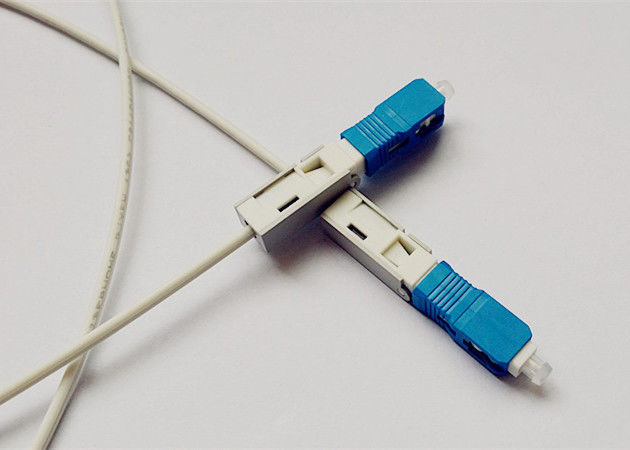

    Simplex Drop Cable Single mode FTTH Solution with SC Fast Connector





    Quick Details:

    1. Type: Drop cable with Fast connector
    2. Mode: Single mode, Multimode
    3. Fiber: G657A1,G657A2
    4. Ferrule End-face: PC, UPC, APC
    5. Cable core: simplex
    6. Cable diameter: 3.0mm



    Features:

    1. Low insertion loss and high return loss
    2. Serialized & Individual Test Records
    3. Guaranteed Zero Defects
    4. Meets RoHS and Bell core GR 326-core standards
    5. Custom Configurations Available at No Extra Charge
    6. Pluggable structure, easy to intensive-installation



    Applications:

    1. Telecommunication networks
    2. Fiber optic communication networks
    3. CATV, LAN, WAN, Test &Measurement
    4. Optical access network
    5. Data processing networks



    Specification:



    Parameter Single Mode Multi Mode
    Basic Fiber connector FC, SC, LC, ST, MU, MTRJ, MPO, E2000
    Ferrule End-face PC UPC APC UPC
    Insertion Loss ≤0.2dB ≤0.2dB ≤0.3dB ≤0.3bB
    Return Loss ≥50dB ≥55dB ≥60dB ≥35dB
    Ceramic Ferrule Specification 125.5um concentricity deviations:<=1um 127um concentricity deviations:<=3um
    Suitable Fiber 9/125um 50/125um,62.5/125um
    End-face Geometry Radius of Curvature 7~25mm 5~12mm N/A
    Fiber Protrusion ≤50nm ≤100nm N/A
    Fiber Under Cut ≤100nm ≤100nm N/A
    Apex offset ≤50um
    Mechanical Exchangeability ≤0.2dB
    Salt Spray ≤0.1dB
    Drop ≤0.2dB(1.5M, 5 drops)
    Vibration IL ≤0.2dB(550Hz, 1.5mm)
    Repeatability ≤ 0.1dB(1000 times)
    Durability > 1000 times
    Operating Temperature -40°C ~ +85°C





    Packing:



    One piece per PE bag with stick label (we could add customer's logo in the label.)





    Shipping:

    1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
    2. Airport to Airport: by air
    3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
