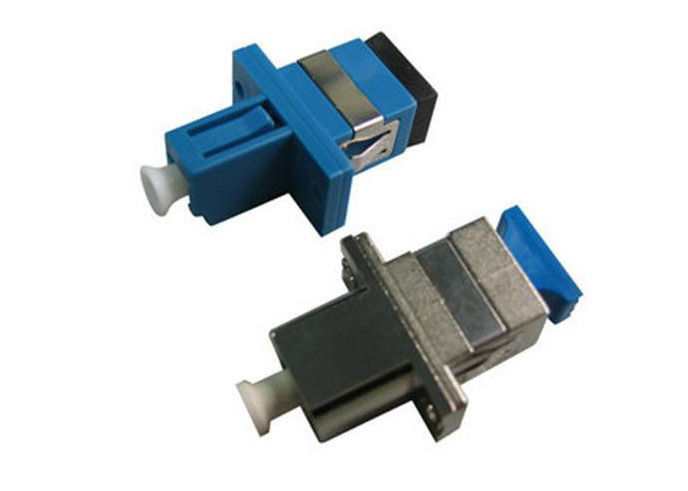

Simplex Duplex SC–LC Fiber Optic Flange with Precision Dimension
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS, SGS |
| Model Number: | FOA-Hybrid |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 50pcs/Case |
| Delivery Time: | 2-3 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/day |
|
Detail Information |
|||
| High Light: | optical fiber adapter,fiber optic to ethernet adapter |
||
|---|---|---|---|
Product Description
Simplex Duplex SC–LC Fiber Optic Flange with Precision Dimension
Quick Details

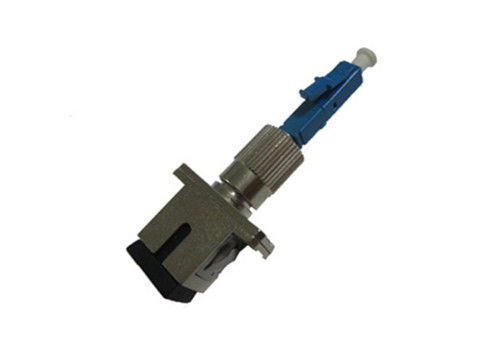

- Type: FC-LC, SC-LC, ST-LC
- End-face: UPC, APC
- Sleeve: Ceramic sleeve, Bronze sleeve
- Housing: Zinc alloy, Bronze, Plastic
- Mode: Singlemode and Multimode
- Manufacturer &OEM Service
Description:
Fiber Adapter (also is the flange) is a fiber optic connector on the activities of linking components.
Features:
- Precision mechanical dimensions
- Excellent repeatability
- Ceramic sleeve can provide low-loss and the stability of specifications
- Sleeve diameter (mm): 0.125 ~ 0.127 (0.140mm is available)
- Sleeve diameter (mm): 2.499 ± 0.0005 for SM (± 0.001 for MM)
- Insertion loss: 0.3 dB for SM MM
- Reflection attenuation: ≥ 45 dB for PC, and ≥ 50 dB for UPC, ≥ 65 dB for APC
Application:
- CATV system
- optical fiber communication network
- fiber Broadband Access Network
- FTTH/FTTX/FTTD
- LAN & WAN
Specification:
| Parameter | Unit | FC,LC,SC | ST,MU | MTRJ,MPO | |||||||
| SM | MM | SM | MM | SM | MM | ||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | ||
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 |
| Operating wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | |||||||
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
| Operating temperature | °C | -40~+75 | -40~+75 | -40~+75 | |||||||
| Storage temperature | °C | -45~+85 | -45~+85 | -45~+85 | |||||||
| Cable diameter | mm | Φ3.0,Φ2.0,Φ0.9 | Φ3.0,Φ2.0,Φ0.9 | Φ3.0,Φ2.0,Φ0.9 | |||||||
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
Our service:
- Standard and customized OEM products from small to large quantity are welcome.
- Compliance with global environmental industry with RoHS and SGS standards.
- All products are 100% fully tested by our technical expertise.
