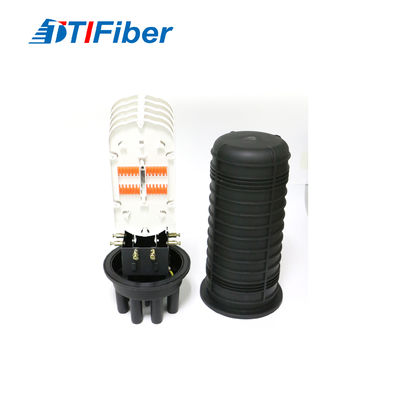

Heat Shrink 96 Core Fiber Optic Splice Closure FOSC Dome 4 Splice Tray
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI |
| Certification: | ROHS, ISO |
| Model Number: | FOSC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton |
|
Detail Information |
|||
| Size: | 190*310 | Max Splice Tray: | 4 |
|---|---|---|---|
| Max Capacity: | 96 | Cable Port: | 2in,2out |
| Sealing Structure: | Heat Shrinkable | Weight: | 1.9 |
| High Light: | 96 Core Fiber Optic Splice Closure,ROHS Fiber Optic Splice Closure,96 Core Aerial Splice Enclosure |
||
Product Description
Heat Shrink 96 Core Fiber Optic Splice Closure FOSC Dome 4 Splice Tray
Distribution:
Fiber optic closure belongs to the accommodation of the optical fiber fusion splice section system. It is widely applied to the connection of the fiber play the roles in sealing, protection, installation of fiber connector head and storage.
Features:
Elastic integrated seal fitting
Protection grade is IP 65.
Advanced internal structure design
Easy to re-enter, it never requires re-entry kits
Slide-in-lock design ,over 90º opening angle tray
Earthling deriving device can be installed on the house of FOSC
Installation procedure:
1. Open the closure
2. Fix the cable and check its length in the closure
3. Strip off the cable and cable jacket
4. Seek out the cable cores and get preparation for cable fixation
5. Fix the strengthen cores and reorganize the extra cores
6. Fix the cable an splice the cable
7. Arrange the splice protective tube and fiber
8. Complete inspection
9. Install the dome.
Specification:
| Type | FOSC-H001 | FOSC-H002 | FOSC-H003 | FOSC-H004 | FOSC-H005 | FOSC-H006 |
| Size(mm) | 435*190*85 | 435*190*120 | 435*190*120 | 435*190*80 | 435*190*170 | 420*150*110 |
| Cable diameter(mm) | Φ 10 –Φ 17 | Φ 10 –Φ 22 | Φ 10 –Φ 22 | Φ 10 –Φ 17 | Φ 10 –Φ 22 | Φ 10 –Φ 23 |
| Max capacity(core) | 96 | 168 | 192 | 96 | 288 | 96 |
| Cable port | 2 in, 2 out | 4 in, 4 out | 3 in, 3 out | |||
| Sealing structure | Sticky cincture | |||||
| Weight(kg) | 2.6 | 2.8 | 2.6 | 2.3 | 4.7 | 2 |
Uses and properties:
It is belonged to open structure airproof tie-in system of machine pressure.
It is used for the protective connection between two or more optical cables
Suitable for single core fiber optic cable and ribbon fiber optic cable
