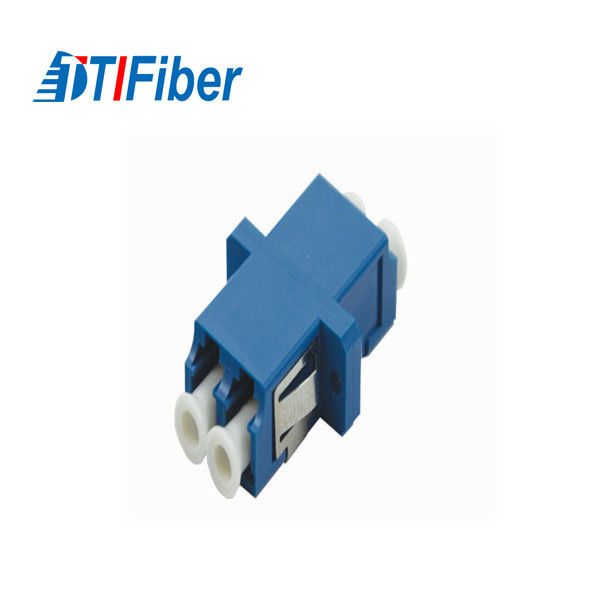

Plastic Fiber Optic Adapter Singlemode LC/UPC To LC/UPC Duplex Low Insertion Loss
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI Fiber |
| Certification: | ISO 9001, ISO 14001, REACH， ROHS, CE and CPR certificates |
| Model Number: | A02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25pcs/Case |
| Delivery Time: | 2-3 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/day |
|
Detail Information |
|||
| Brand: | TTI | Product: | Fiber Optic Adapter |
|---|---|---|---|
| Feature: | Low Insertion Loss Value | Application: | Local Area Network |
| Operating Temperature: | -25~75 Degree | -25~75 Degree: | -40~85 Degree |
| Highlight: | fibre optic adapter,fiber optic to ethernet adapter |
||
Product Description
LC/UPC to LC/UPC Duplex Singlemode Plastic Fiber Optic Adapter with Shutter
Quick Details
- Type: SC/UPC
- Mode: Singlemode
- Fiber core: Simplex, Duplex
- Structure: with flange, without flange
- Sleeve: Ceramic sleeve
- Housing: Plastic housing
Description:
Fiber Optic Adapter is the mechanical device designed to align fiber optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.
Features:
- SC used pluggable tight locking structure
- Standardization and Uniformization of Metal Casing
- Zirconia or Bronze Sleeve
- Low Insertion Loss, high Return loss
- Precision mechanical dimension
- Good repeatability, interchangeability and environmental stability
Application:
- Equipment Test
- Local Area Network
- Optic instrumentation
- CATV system, Optic LAN
- Telecommunication Networks
- Fiber optic communication network
- Optical Broadband Access Network
Specification:
| Type | SC/FC/ST/LC/MU/MTRJ/MPO |
| Insertion Loss(dB) | SM≤0.2dB, MM≤0.3dB |
| Repeatability(dB) | ≤0.1dB |
| Mechanism Durability(500 cycles, dB) | ≤0.2dB |
| Temperature Range | -40°C-+85°C |
| Material of sleeve | Zirconia or Bronze |
Reliability testing:
| Item | Test Name | Additional Insertion Loss | Additional Return Loss |
| 1 | Mechanical durability | <0.2dB | <5dB |
| 2 | Repeatability | <0.2dB | <5dB |
| 3 | Lock strength | <0.2dB | <5dB |
| 4 | Low strength | <0.2dB | <5dB |
| 5 | High temperature | <0.2dB | <5dB |
| 6 | Steaming | <0.2dB | <5dB |
| 7 | Temperature cycle | <0.2dB | <5dB |
| 8 | Vibration | <0.2dB | <5dB |
| 9 | Drop | <0.2dB | <5dB |
Ordering Information:
SC/UPC-SC/UPC-SM-SX
Step 1: Connector type: FC, SC, LC, ST, MTRJ, MU, MPO
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode (MM, OM3, OM4)
Step 4: Mode: Simplex, Duplex
Step 5: Sleeve: Ceramic, Bronze
Step 6: Housing material: Plastic, Metal
Packing:
25pcs per PE bag with stick label (we could add customer's logo in the label.)
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
Our service:
- Standard and customized OEM products from small to large quantity are welcome.
- Compliance with global environmental industry with RoHS and SGS standards.
- All products are 100% fully tested by our technical expertise.
