Quick Fast Optical Fiber Connectors Adapter SM MM For UPC FTTH SC Single Mode
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS, SGS |
| Model Number: | QAC-SCU |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T, , Monthly settlement |
| Supply Ability: | 10000pcs/day |
|
Detail Information |
|||
| Product Name: | Fast Connector | Brand: | TTI |
|---|---|---|---|
| Mode: | Sm Mm | Insertion Loss: | <=0.3db |
| Reusable Times: | >10 Times | Tensile Strength: | >50N |
| High Light: | fiber optic cable connectors,connectors for fiber optic cables |
||
Product Description

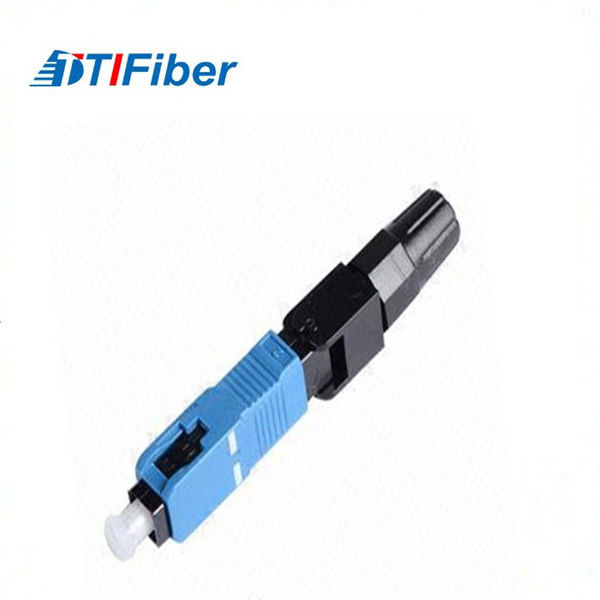

Fiber Optic Quick Fast Connector Adapter For UPC FTTH SC Single Mode
Description:
Fast fiber optic connector
Fast fiber optic connector can provide a quick and easy termination of fibers in the field and options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens
SC quick assembly connector has easy assembly and excellent stability.
Feature:
- No special assembling tool
- Easy for learning technology by a simple assembling method (within 1 and half minutes)
- Minimize the defect rate by features of removal and reusable.
- Easy for assembling with mechanical splice and no polishing
Application:
- Optical network maintaining and repair.
- Local area network environment of connection.
- Fiber optic distribution frame.
- Terminal connection-leg of FTTH optic network.
Specification:
| Article | value |
| Insertion loss | ≤0.3 (max 0.4) |
| Return loss | ≥60dB |
| Connector type | SC/APC |
| Cable | drop 3.0mm / flat 2x3mm cable |
| Fiber clamping force | ≥3N |
| Tensile Strength | Typical ≥40N (Max 50N) |
| Online tensile strength 20N | IL variation (≤0.2dB) RL variation (≤5dB) |
| Working Temperature | -40℃ ~ +75℃ |
| Can be repeatedly used | Possible |
Ferrule Hole Sizes:
Singlemode
125.0+1/-0um, concentricity<=1.0um
125.5+1/-0um, concentricity<=1.0um
126.0+1/-0um, concentricity<=1.0um
Multimode
125um concentricity <=3um
127um concentricity <=3um
128um concentricity <=3um
