Self Support Amored Fiber Optic Cable GYTC8S FTTH Aerial Installation PE Materiall

Self Support Amored Fiber Optic Cable GYTC8S FTTH Aerial Installation PE Materiall

    • Self Support Amored Fiber Optic Cable GYTC8S FTTH Aerial Installation PE Materiall
    • Self Support Amored Fiber Optic Cable GYTC8S FTTH Aerial Installation PE Materiall
  • Self Support Amored Fiber Optic Cable GYTC8S FTTH Aerial Installation PE Materiall

    Product Details:

    Place of Origin: China
    Brand Name: TTI
    Certification: RoHS, UL, CE, ISO9001
    Model Number: GYTC8S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 meters
    Packaging Details: wooden drum
    Delivery Time: 5-8 work days
    Supply Ability: 50000 meters per week
    Contact Now
    Detailed Product Description
    Application: FTTH FTTB FTTX Network Type: SM / MM
    Material: PE Color: Black
    Operating Temperature: -40 ~ +70 Loose Tube Material: PBT
    Installation: Aerial

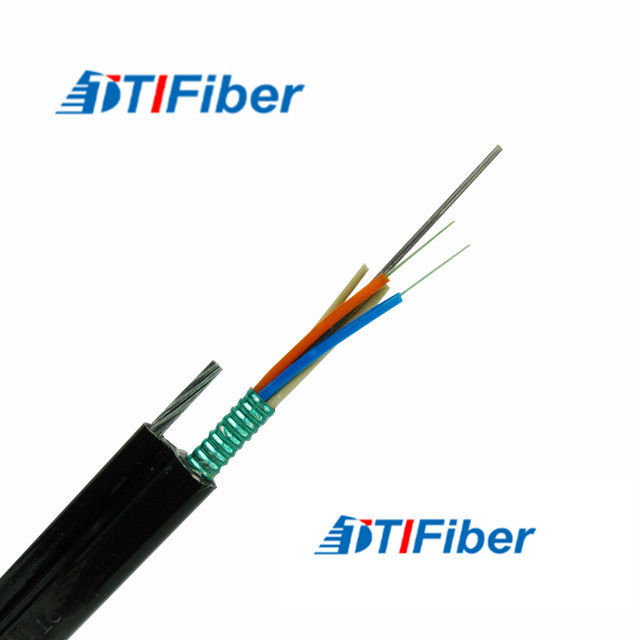

    Fiber Optic Cable GYTC8S FTTH Aerial Outdoor Figure 8 Self-Support Amored

    Product Description

    The fibers, 250μ M, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure.


    Characteristics
    @ High tensile strength of stranded wires meet the requirement of self-supporting and reduce the
    Installation cost.
    @ Good mechanical and temperature performance
    @ High strength loose tube that is hydrolysis resistant
    @ Special tube filling compound ensure a critical protection of fiber
    @ The following measures are taken to ensure the cable watertight:
    - Steel wire used as the central strength member
    - Loose tube filling compound
    - 100% cable core filling
    - APL moisture barrier


    Standards
    GYTC8S cable complies with Standard YD/T 1155-2001 as well as IEC 60794-1.
    Optical Characteristics
    G. 652 G. 655 50/125μ M 62.5/125μ M
    Attenuation @850nm ≤ 3.0 dB/km ≤ 3.0 dB/km
    @1300nm ≤ 1.0 dB/km ≤ 1.0 dB/km
    (+20° C) @1310nm ≤ 0.36 dB/km ≤ 0.40 dB/km
    @1550nm ≤ 0.22 dB/km ≤ 0.23dB/km
    @850nm ≥ 500 MHz@km ≥ 200 MHz@km

    Bandwidth (Class A) @1300nm ≥ 1000 MHz@km ≥ 600 MHz@km
    Numerical Aperture 0.200± 0.015NA 0.275± 0.015NA
    Cable Cut-off Wavelength λ CC ≤ 1260nm ≤ 1480nm


    Our Services

    1. Free samples
    2. OEM serviced
    3. Best price, Best quality, Best service(we'll reply all our customers in 3 hours, any questons, pls call us at anytime )

    Company Information
    We're a proffessional factory of cable in Shenzhen China, with 12years of experience in this field and 8years exporting experience.

    Employees: 150
    Export countries: Europe, the Middle East South America. Like Russia, Ukraine, Brazil, Turkey, Columbia, Saudi Arabia ect
    Products: All cables, cable accessories.

    optical fiber cable Technical data:
    Fiber core Stranded Wire Cable diameter (mm) Messenger cable Diameter (mm) Cable Height (mm) Cable weight (kg/kg) Min. bend radius Max. Running tension (N) Safe running tension (N) Min. Breaking tension (N) Max. crush loading (N/100mm)
    Static Dynamic Short term Long term
    2-30 1× 7-4.2 9.8 5.6 18 200 10times cable diameter 20times cable diameter 7000 3500 15550 2000 1000
    32-36 10.3 18.5 220
    38-60 10.7 18.9 225
    62-72 11.3 19.5 245
    74-96 12.9 21.1 280

    Technical Parameters



    Performance Long-term Short-term
    Max.Tension(N) 3500 7000
    Max.Crushing 300 1000
    Resistance(N/100mm2) 30D(Dynamic) 15D(static)
    Storage and operating temperature -40ºC to +70ºC


    Optical Characteristics:

      G.652D 50/125μm 62.5/125μm
    Attenuation (+20ºC) @850nm   ≤3.0 dB/km ≤3.0 dB/km
    @1300nm   ≤1.0 dB/km ≤1.0 dB/km
    @1310nm ≤0.36 dB/km
    @1550nm ≤0.22 dB/km
    Bandwidth (Class A) @850nm   ≥500 MHz·km ≥200 MHz·km
    @1300nm   ≥1000 MHz·km ≥600 MHz·km
    Numerical Aperture   0.200±0.015NA 0.275±0.015NA
    Cable Cut-off Wavelength λcc ≤1260nm
