Wall mounted Fiber Optic Terminal Box optical fiber 4 core terminal box with CE ROHS

Wall mounted Fiber Optic Terminal Box optical fiber 4 core terminal box with CE ROHS

    • Wall mounted Fiber Optic Terminal Box optical fiber 4 core terminal box with CE ROHS
    • Wall mounted Fiber Optic Terminal Box optical fiber 4 core terminal box with CE ROHS
    • Wall mounted Fiber Optic Terminal Box optical fiber 4 core terminal box with CE ROHS
  • Wall mounted Fiber Optic Terminal Box optical fiber 4 core terminal box with CE ROHS

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: TTI
    Certification: CE / ROHS
    Model Number: FB

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 Pieces
    Price: USD 4.5-6.8/ Piece
    Packaging Details: Boxes
    Delivery Time: 3-5 work day
    Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram,Paypal
    Supply Ability: 1000 Pieces / Week
    Contact Now
    Detailed Product Description
    Name: Fiber Terminal Box Type: Wall Mounted
    Core Quantity: 4 Material: ABS
    Color: Black Application: FTTH FTTB FTTX Network

    Wall mounted optical fiber 4 core terminal box with CE ROHS



    Features

    1. complete close structure
    2.The material of this box is SMC which can prove a more than 20 years working life and wet-proof, water-proof,dust-proof, anti-aging and the protection level is up to IP65.
    3.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution in one.
    4.Cable, pigtail, patch cords are running through own path without disturbing each other,cassette type SC/LC/PLC adaptor installation, easy maintenance.
    5.Distribution panel can be filliped up, feeder cable can be place in a cup-joint way, easy for maintenance and installation.
    6 Cabinet can be installed by the way of wall-mounted,suitable for both indoor and outdoor uses.





    Specification

    1.Environmental Requirement

    Working temperature: -40℃~+60℃

    Relative humidity:≤95%(+40℃)

    Atmosphere pressure:70Kpa~106Kpa

    2.Main Technique Data
    Insertion loss:≤0.2dB
    UPC return loss:≥50dB
    APC return loss: ≥60dB
    Life of insertion and extraction: >1000 times
    3.Thunder-proof Technique Data
    The grounding device is isolated with the cabinet, isolation resistance is less than 2x104MΩ/500V(DC); Insulation Resistance≥2x104MΩ/500V.
    The withstand voltage between grounding device and cabinet is no less than 3000V (DC)/min, no puncture, no flash-over; U≥ 3000V



    em 4 port 6 port 8 port 12 port 24 port
    Dimension(L X W X H) 265*130*40 265*130*40 265*130*40 485*200*40 mm 485*200*40 mm
    Weight 0.7kg 0.7kg 0.7kg 1.5kg 1.5kg
    Lateral pressure-resistance 500N 500N 500N 500N 500N
    Shock-resistance 750N 750N 750N 750N 750N
    Working temperature -40°C ~ +80°C -40°C ~ +80°C -40°C ~ +80°C -40°C ~ +80°C -40°C ~ +80°C
    Max capacity 8 fibers 8 fibers 8 fibers 12 fibers 24 fibers

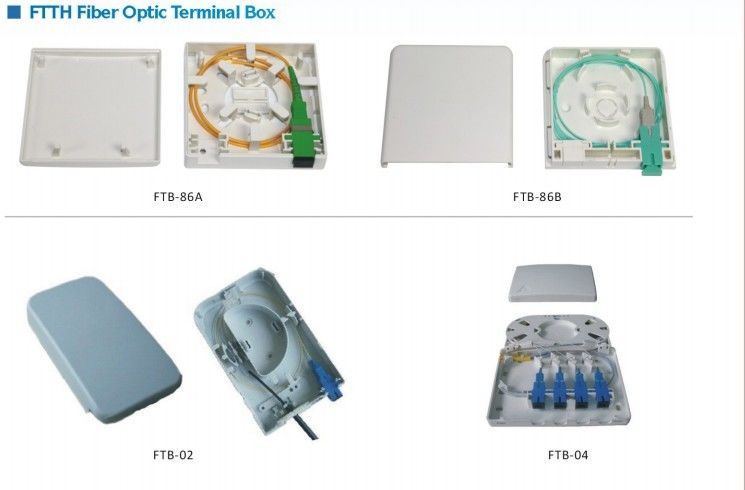

    Wall mounted Fiber Optic Terminal Box optical fiber 4 core terminal box with CE ROHS
