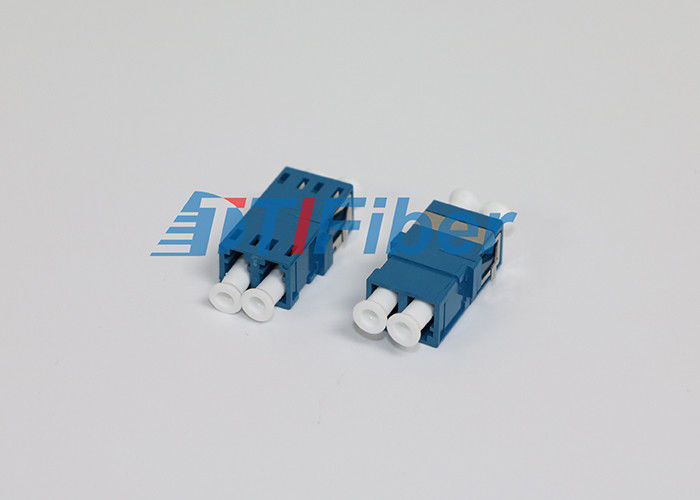

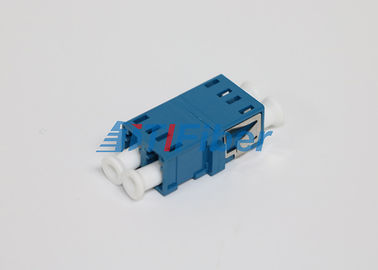

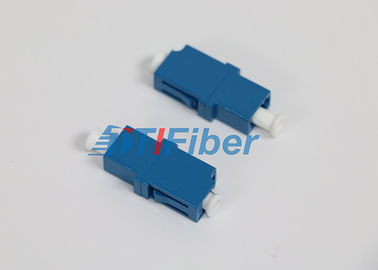

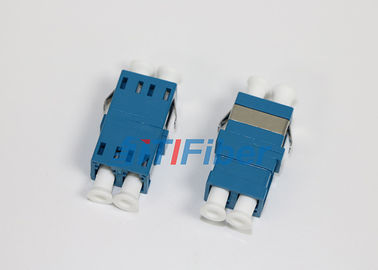

ABS Blue Color LC / APC Single Fiber Optic Adapter , High Return Loss
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS, SGS, ISO9001 |
| Model Number: | ALC-DX |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25pcs/Case |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T, , PayPal |
| Supply Ability: | 10000 pieces per day |
|
Detail Information |
|||
| Operating Temperature Range: | -40°C ~ +80°C | Type: | Simplex |
|---|---|---|---|
| Sleeve: | Zirconia, Bronze | Housing: | Plastic, Metal |
| Structure: | With Flange, Without Flange | Color: | Blue, Green Or Customized |
| High Light: | fibre optic adapter,optical fiber adapter |
||
Product Description
ABS Blue Color LC / APC Single Fiber Optic Adapter , High Return Loss
| Description: |
|
Fiber adapters also called as flanges, a fiber connection component. It includes many types such as FC, SC, ST, LC, MTRJ, etc.. Widely used in ODF, fiber transmission equipment etc.
Fibers are connected each other through inside placket bushings of adapter. Different shapes of adapters are provided to guarantee high connection effect among fiber jumpers. |
| Feature: |
|
|
| Application: |
|
Specification:
|
Type |
SC/FC/ST/LC/MU/MTRJ/MPO |
| Mode | SM,MM |
| Insertion Loss | SM≤0.2dB, MM≤0.3dB |
| Repeatability(dB) | ≤0.1dB |
| Mechanism Durability(500 cycles, dB | ≤0.2dB |
| Material of sleeve | >50N |
| Working Temperature | Zirconia or Bronze |
Reliability testing:
| Item | Test Name | Additional Insertion Loss | Additional Return Loss |
| 1 | Mechanical durability | <0.2dB | <5dB |
| 2 | Repeatability | <0.2dB | <5dB |
| 3 | Lock strength | <0.2dB | <5dB |
| 4 | Low strength | <0.2dB | <5dB |
| 5 | High temperature | <0.2dB | <5dB |
| 6 | Steaming | <0.2dB | <5dB |
| 7 | Temperature cycle | <0.2dB | <5dB |
| 8 | Vibration | <0.2dB | <5dB |
| 9 | Drop | <0.2dB | <5dB |
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
 |
|
