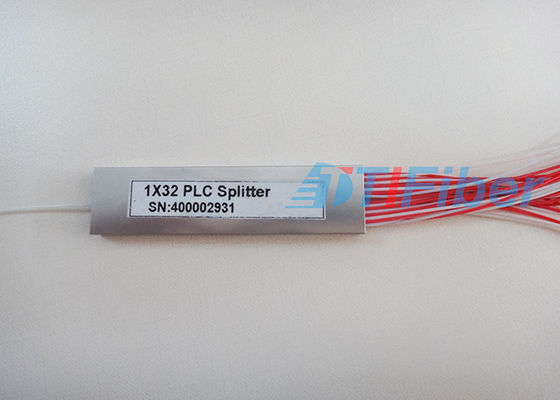

1X32 Steel Tube Type Mini Fiber Optic Splitter , Optical Audio Cable Splitter
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS, SGS, ISO9001 |
| Model Number: | 1x32 steel PLC |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 pcs per box |
| Delivery Time: | 3-7 work days |
| Payment Terms: | T/T, , Paypal, Monthly |
| Supply Ability: | 70000pcs/Month |
|
Detail Information |
|||
| Connector: | SC | Ferrule End-face: | PC, UPC, APC |
|---|---|---|---|
| Fiber Type: | G657A Or Customer Specified | Operating Wavelength (nm): | 1260～1650 |
| Jacket: | PVC, LSZH | FIber Diameter: | 0.9mm |
| High Light: | optical fiber splitter,optical cable splitter |
||
Product Description
| 1X32 Steel Tube Type PLC Splitter With SC / PC Connector and 0.9mm Cbale |
| Deacription |
Planar Lightave Circuits (PLC) can not work with different tration rather than it provides an accurate splitting in high-density output (such as 8, 16, 32, 64 outputs). However, the most common type of fiber optic splitter splits the output evenly, which is coming out with the same output of light signals. As a result of its great function, optical splitter is a very important part in passive optic network (PON). |
| Feature: |
|
| Application: |
|
Specification:
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength (nm) | 1260～1650 | |||||
| Fiber Type | G657A or customer specified | |||||
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40～85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40～85 | |||||
| Storage Temperature (℃) | -40～85 | |||||
| Package | Steel Tube or ABS | |||||
