Product Name: PLC Fiber Optic Splitter Operating Wavelength: 1260-1650
Return Loss: 55/50 Directivity: 55
Application: FTTX System Feature: Excellent Mechanical
Fiber Type: SMF-28e Or Customer Specified, Custom, G.657A With 0.9mm Loose Tube, Singlemode Or Multimode, G657 Operating Temperature: -40℃ To 85℃, -40~+85C, -20 To75, -20~+80℃, -40 To +85 Degree
Type: 1x32, 1x16, 1x4, APC, PLC Splitter Connector Type: LC, ST, FC, SC, SC/APC
High Light:

Abs PLC Fiber Optic Splitter

,

Ftth PLC Fiber Optic Splitter

,

Abs Ftth Optic Splitter

Product Description

Ftth Optic Splitter Fiber Optical Plc Splitters Abs Box Type Fttx Splitters





1. Description:


Fiber Optic Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and this passive splitter widely used in FTTX PON to realize optical signal power management.



PLC splitter is based on planar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN.



PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently.



TTI fiber optic plc splitters offer superior optical performance, high stability and high reliability, meet various application requirements in different environments.





2. Specification:

Table 1 – 1×N PLC Splitter


Parameters 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260～1650
Fiber Type G657A or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability(-40～85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40～85
Storage Temperature (℃) -40～85
Package Steel Tube or ABS





Table 2 – 2×N PLC Splitter


Parameters 2×2 2×4 2×8 2×16 2×32 2×64
Operating Wavelength (nm) 1260～1650
Fiber Type G657A or customer specified
Insertion Loss (dB) 4.0 7.6 11.0 14.4 17.5 21.0
Loss Uniformity (dB) 0.6 1.0 1.2 1.5 1.8 2.2
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.3 0.3 0.4 0.4
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.4 0.5 0.5 0.5 0.5
Temperature Stability(-40～85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40～85
Storage Temperature (℃) -40～85
Package Steel Tube or ABS




Quick Detail:

  1. Name: PLC splitter
  2. Type: 1×2, 1×4, 1×8, 1×16, 1×32, 1×64
  3. Mode: Singlemode
  4. Fiber type: G652D, G657A1, G657A2
  5. Cable jacket: PVC, LSZH, OFNR, OFNP
  6. Cable length: 1M, 1.5m…customized



3. Features:

  1. Low Insertion loss
  2. Wide Operating Wavelength: From 1260nm to 1650nm
  3. Excellent Environmental & Mechanical Stability
  4. High Reliability and Stability
  5. Low PDL (Polarization Dependent Loss)
  6. Compact Design


4. Applications:

  1. FTTX (FTTB, FTTH, FTTC) Systems
  2. Passive Optical Network (PON)
  3. Cable Television (CATV)
  4. Optical Signal Distribution





5. Pictures:

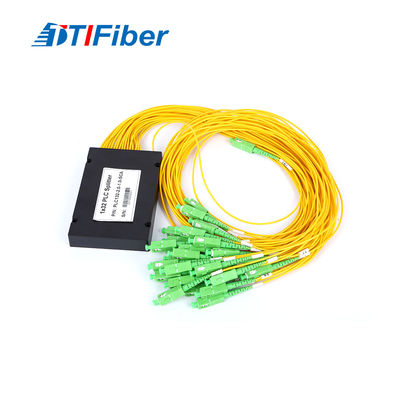

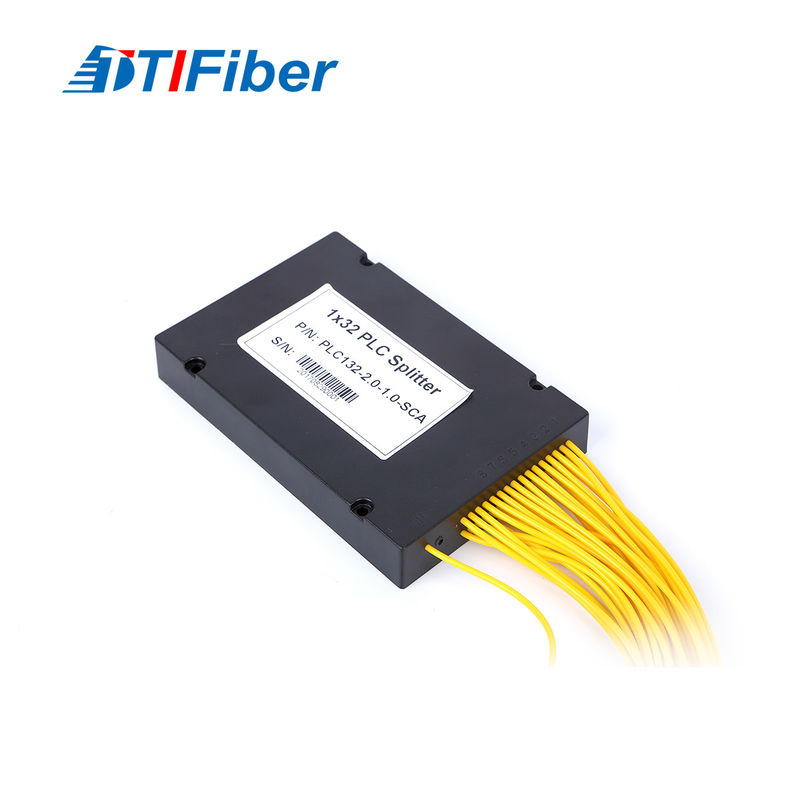

Fttx Ftth System PLC Fiber Optic Splitter Abs Box Type 0Fttx Ftth System PLC Fiber Optic Splitter Abs Box Type 1Fttx Ftth System PLC Fiber Optic Splitter Abs Box Type 2Fttx Ftth System PLC Fiber Optic Splitter Abs Box Type 3
