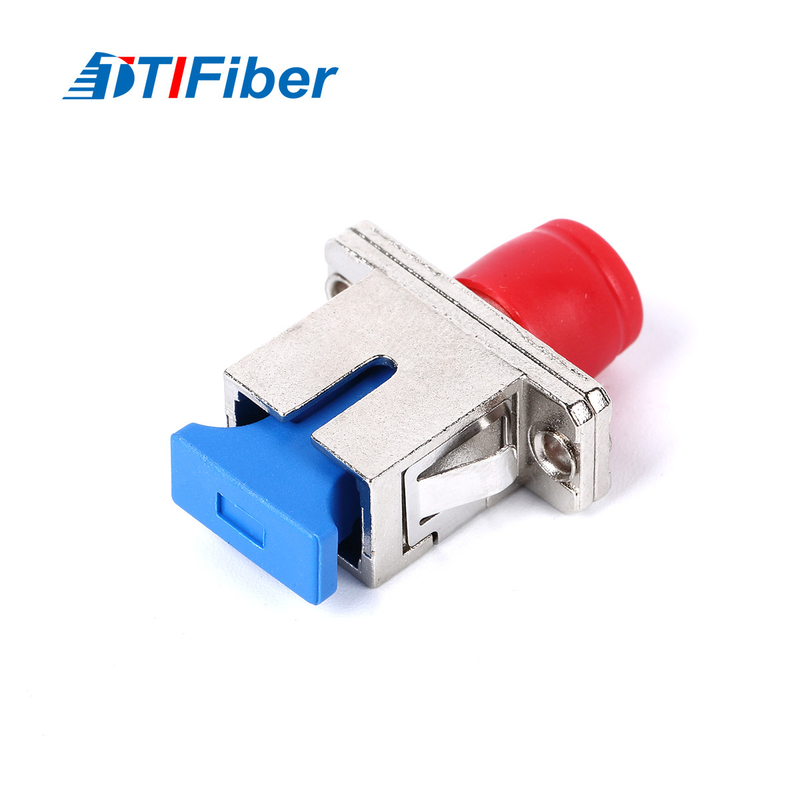

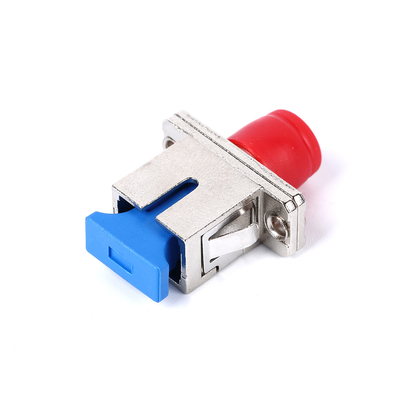

Fiber Optic FC-SC Hybrid Female To Female Adapter Simplex
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS, SGS |
| Model Number: | FC-SC |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25pcs/Case |
| Delivery Time: | 2-3 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/day |
|
Detail Information |
|||
| Color: | Red | Polish: | Upc |
|---|---|---|---|
| Shape: | Square | Product: | Fiber Optic Adapter |
| Connector: | FC-SC | ||
| High Light: | Female To Female Fiber Optic Adapter,Hybrid Female To Female Adapter |
||
Product Description
Fiber Optic Simplex FC-SC Hybrid Female to female Adapter
Quick Details
- Type: FC-SC
- Mode: Singlemode and Multimode
- End-face: UPC, APC
- Structure: One body
- Sleeve: Ceramic sleeve, Bronze sleeve
- Housing: Zinc alloy, Bronze
Description:
FC adapter has a metal thread connecting structure.
Application:
- Local Area Networks
- CATV System
- Telecommunication Networks
- Equipment Test
Specification:
| Type | SC/FC/ST/LC/MU/MTRJ/MPO |
| Insertion Loss(dB) | SM≤0.2dB, MM≤0.3dB |
| Repeatability(dB) | ≤0.1dB |
| Mechanism Durability(500 cycles, dB) | ≤0.2dB |
| Temperature Range | -40°C-+85°C |
| Material of sleeve | Zirconia or Bronze |
