Simplex Duplex Sm / Mm Fiber Optic Adapter For Ftth Application

Simplex Duplex Sm / Mm Fiber Optic Adapter For Ftth Application

Product Details:

Place of Origin: Guangdong, China
Brand Name: TTI
Certification: ROHS, SGS
Model Number: A02

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: Depend on qty, 3-20 working Days after received the payment
Payment Terms: T/T, L/C, PayPal
Supply Ability: 10000PCS/Day
Get Best Price Contact Now

Detail Information

Brand: TTI Product: Fiber Optic Adapter
Feature: Low Insertion Loss Value Application: Local Area Network
Operating Temperature: -25~75 Degree -25~75 Degree: -40~85 Degree
High Light:

Ftth Application Fiber Optic Adapter

,

Ftth Application Duplex Fiber Optic Adapter

Product Description

Ftth Application Simplex Duplex Sm/Mm Fiber Adaptor Fiber Optic Adapter



Quick Details

  1. Type: SC/UPC
  2. Mode: Singlemode
  3. Fiber core: Simplex, Duplex
  4. Structure: with flange, without flange
  5. Sleeve: Ceramic sleeve
  6. Housing: Plastic housing



Description:



Fiber Optic Adapter is the mechanical device designed to align fiber optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.





Features:

  1. SC used pluggable tight locking structure
  2. Standardization and Uniformization of Metal Casing
  3. Zirconia or Bronze Sleeve
  4. Low Insertion Loss, high Return loss
  5. Precision mechanical dimension
  6. Good repeatability, interchangeability and environmental stability



Application:

  1. Equipment Test
  2. Local Area Network
  3. Optic instrumentation
  4. CATV system, Optic LAN
  5. Telecommunication Networks
  6. Fiber optic communication network
  7. Optical Broadband Access Network



Specification:

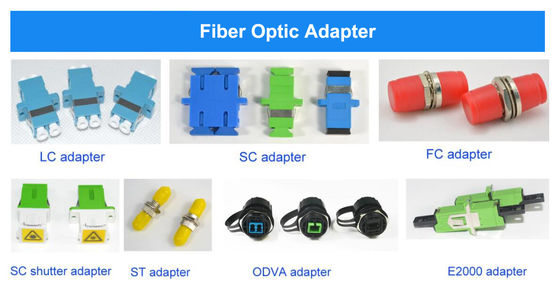

Type SC/FC/ST/LC/MU/MTRJ/MPO
Insertion Loss(dB) SM≤0.2dB, MM≤0.3dB
Repeatability(dB) ≤0.1dB
Mechanism Durability(500 cycles, dB) ≤0.2dB
Temperature Range -40°C-+85°C
Material of sleeve Zirconia or Bronze





Reliability testing:



Item Test Name Additional Insertion Loss Additional Return Loss
1 Mechanical durability <0.2dB <5dB
2 Repeatability <0.2dB <5dB
3 Lock strength <0.2dB <5dB
4 Low strength <0.2dB <5dB
5 High temperature <0.2dB <5dB
6 Steaming <0.2dB <5dB
7 Temperature cycle <0.2dB <5dB
8 Vibration <0.2dB <5dB
9 Drop <0.2dB <5dB





Ordering Information:



SC/UPC-SC/UPC-SM-SX

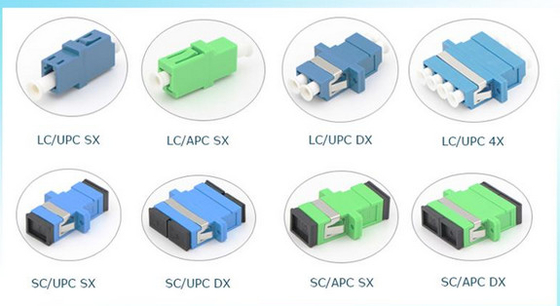

Step 1: Connector type: FC, SC, LC, ST, MTRJ, MU, MPO

Step 2: Ferrule End-face: PC, UPC, APC

Step 3: Type: Single-mode, Multimode (MM, OM3, OM4)

Step 4: Mode: Simplex, Duplex

Step 5: Sleeve: Ceramic, Bronze

Step 6: Housing material: Plastic, Metal

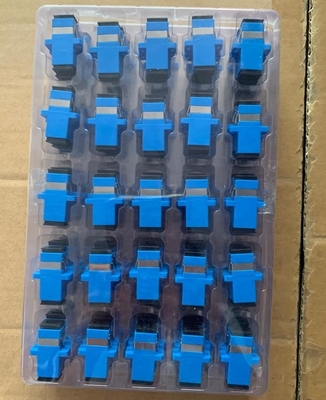

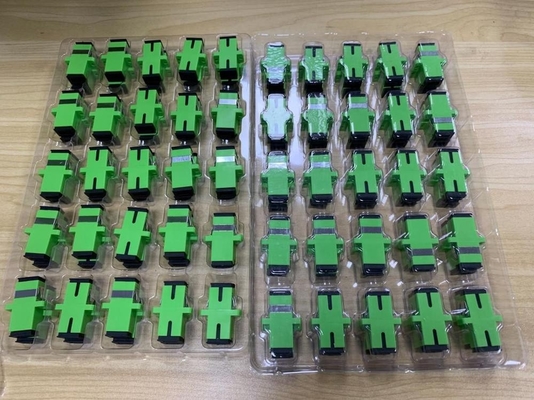

Packing:



25pcs per PE bag with stick label (we could add customer's logo in the label.)





Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)



Our service:

  1. Standard and customized OEM products from small to large quantity are welcome.
  2. Compliance with global environmental industry with RoHS and SGS standards.
  3. All products are 100% fully tested by our technical expertise.

Simplex Duplex Sm / Mm Fiber Optic Adapter For Ftth Application 0Simplex Duplex Sm / Mm Fiber Optic Adapter For Ftth Application 1

Company Certification&Exhibition Show:



ODM Duplex Fiber Optic Patch Cord Multimode For FTTH Communication Rooms 10



6. About Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)



7. FAQ:



1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance: Stable high quality.
(3) Customers solutions: Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.


2. Do you accept OEM, ODM?
Yes, we accept them.


3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes, or products.


4. What's the method of shipment?
We accept all shipment, such as Delievery, ocean transport, land transport, airport transport.
