Ftth 1x4 1x8 1x16 1x32 1x64 Optic Fiber Plc Splitter 1260 To 1650nm
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS, CE |
| Model Number: | S-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1pcs per carton |
| Delivery Time: | 1pcs per carton |
| Payment Terms: | T/T |
| Supply Ability: | 70000pcs/Month |
|
Detail Information |
|||
| Product Name: | PLC Fiber Optic Splitter | Operating Wavelength: | 1260-1650 |
|---|---|---|---|
| Return Loss: | 55/50 | Directivity: | 55 |
| Application: | FTTX System | Feature: | Excellent Mechanical |
| Fiber Type: | SMF-28e Or Customer Specified, Custom, G.657A With 0.9mm Loose Tube, Singlemode Or Multimode, G657 | Operating Temperature: | -40℃ To 85℃, -40~+85C, -20 To75, -20~+80℃, -40 To +85 Degree |
| Type: | 1x32, 1x16, 1x4, APC, PLC Splitter | Connector Type: | LC, ST, FC, SC, SC/APC |
| High Light: | 1x64 Optic Fiber Plc Splitter,1x32 Optic Fiber Plc Splitter,1x16 Optic Fiber Plc Splitter |
||
Product Description
Ftth Fiber Optic Equipment 1260 To 1650nm 1x4 1x8 1x16 1x32 1x64 Optic Fiber Plc Splitter
1. Description:
Fiber Optic Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and this passive splitter widely used in FTTX PON to realize optical signal power management.
PLC splitter is based on planar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN.
PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently.
TTI fiber optic plc splitters offer superior optical performance, high stability and high reliability, meet various application requirements in different environments.
2. Specification:
Table 1 – 1×N PLC Splitter
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength (nm) | 1260～1650 | |||||
| Fiber Type | G657A or customer specified | |||||
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40～85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40～85 | |||||
| Storage Temperature (℃) | -40～85 | |||||
| Package | Steel Tube or ABS | |||||
Table 2 – 2×N PLC Splitter
| Parameters | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
| Operating Wavelength (nm) | 1260～1650 | |||||
| Fiber Type | G657A or customer specified | |||||
| Insertion Loss (dB) | 4.0 | 7.6 | 11.0 | 14.4 | 17.5 | 21.0 |
| Loss Uniformity (dB) | 0.6 | 1.0 | 1.2 | 1.5 | 1.8 | 2.2 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.4 | 0.4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40～85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40～85 | |||||
| Storage Temperature (℃) | -40～85 | |||||
| Package | Steel Tube or ABS |
|||||
Quick Detail:
- Name: PLC splitter
- Type: 1×2, 1×4, 1×8, 1×16, 1×32, 1×64
- Mode: Singlemode
- Fiber type: G652D, G657A1, G657A2
- Cable jacket: PVC, LSZH, OFNR, OFNP
- Cable length: 1M, 1.5m…customized
3. Features:
- Low Insertion loss
- Wide Operating Wavelength: From 1260nm to 1650nm
- Excellent Environmental & Mechanical Stability
- High Reliability and Stability
- Low PDL (Polarization Dependent Loss)
- Compact Design
4. Applications:
- FTTX (FTTB, FTTH, FTTC) Systems
- Passive Optical Network (PON)
- Cable Television (CATV)
- Optical Signal Distribution

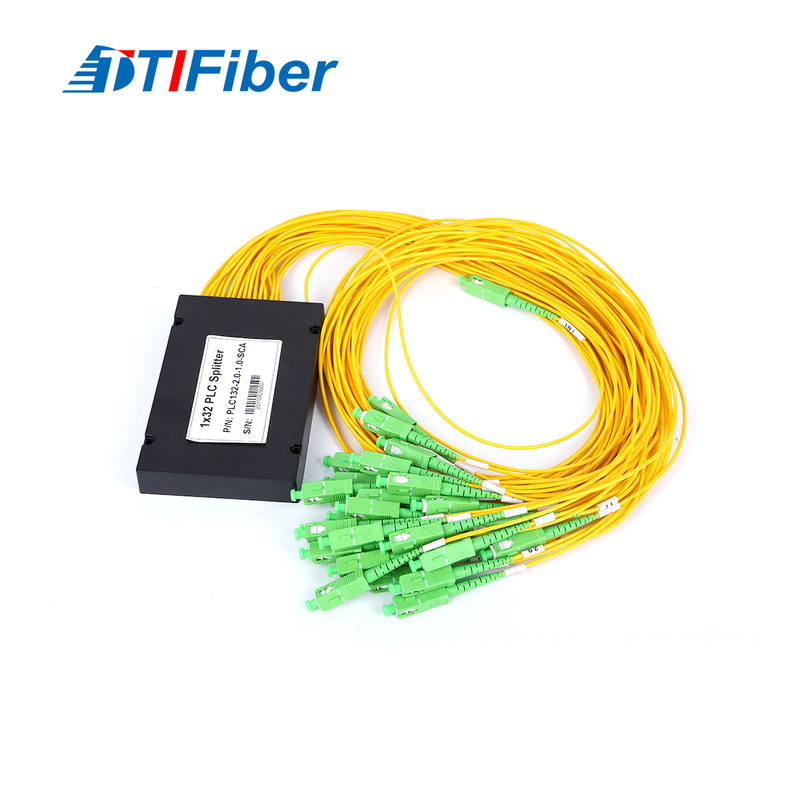

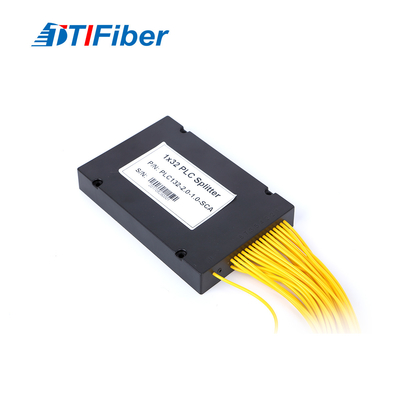

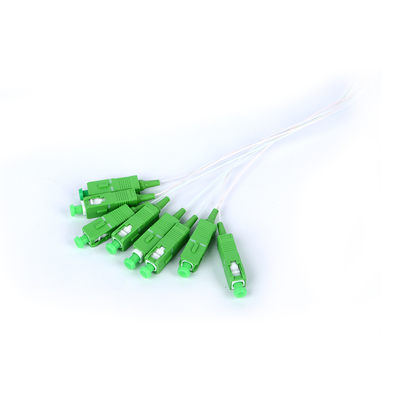

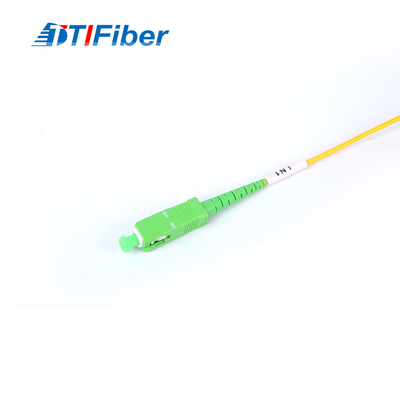

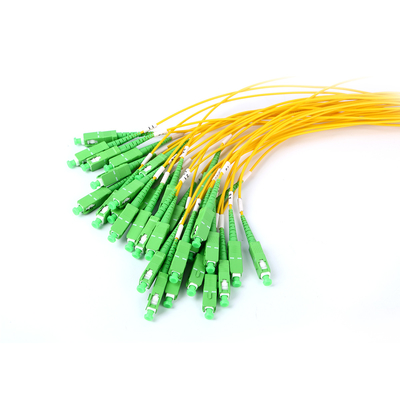

5. Pictures:
6. Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
7. Our service:
- We could print your company name on the cable.
- Standard and customized OEM products from small to large quantity are welcome.
- Compliance with global environmental industry with RoHS and SGS standards.
- All products are 100% fully tested by our technical expertise.
8. Company Information:
- We build and supply PLC splitter and devices to meet the market demands.
- We offer custom-made products, you can order any length, any combination, tailor-made products fit for your need.
- We have a full set of quality control system and guarantee the high quality of our products.
9. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.
10. FAQ:
a. Do you accept OEM,ODM?
Yes, we accept them .
b. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
c. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
