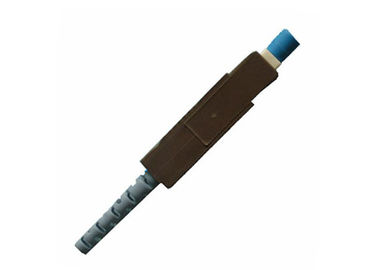

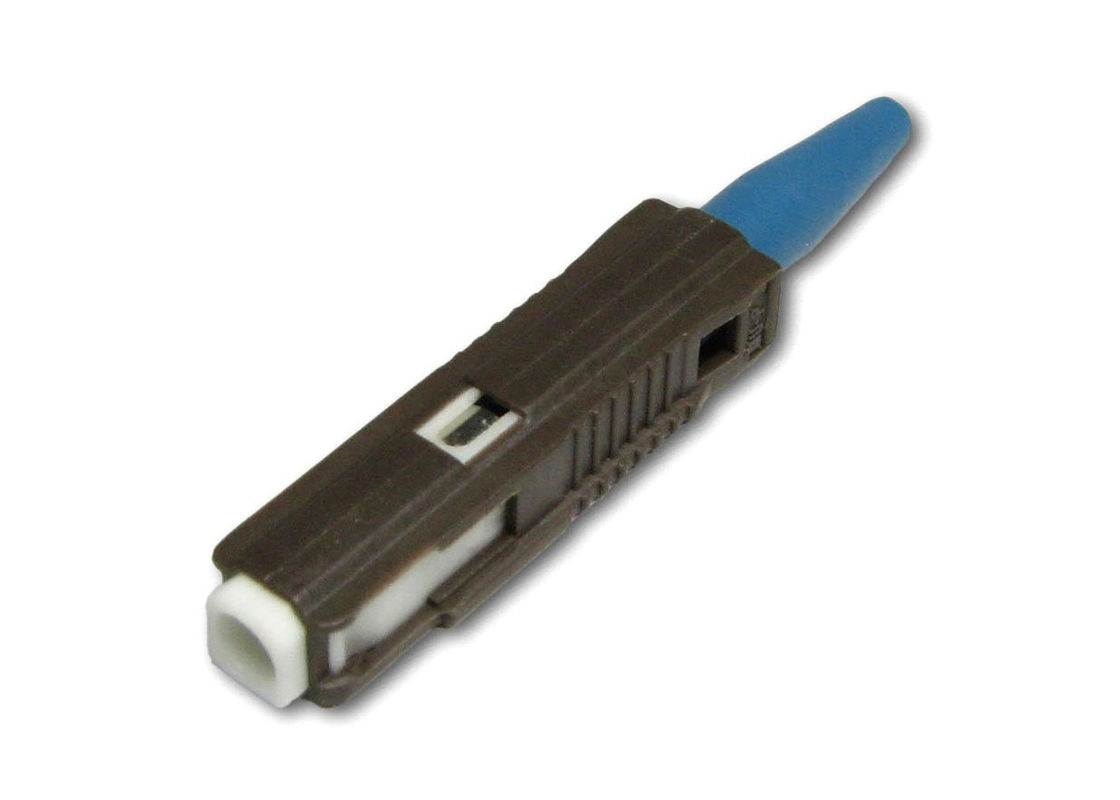

SPC polishing MU Fiber Optical Connector with 1.25mm Ferrule for CATV Network
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS, SGS |
| Model Number: | FC-MU |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 200pcs/PE bag |
| Delivery Time: | in 2-4 days |
| Payment Terms: | T/T, , Monthly settlement |
| Supply Ability: | 10000pcs/Day |
|
Detail Information |
|||
| High Light: | connectors for fiber optic cables,optical fiber connectors |
||
|---|---|---|---|
Product Description
SPC polishing MU Fiber Optical Connector with 1.25mm Ferrule for CATV Network
Qick Detail:
- Name:MU optical fiber connector
- Include: Dust cap, Housing, Stopper, Spring, Boot
- Type: d
- Material: Plastic, Zinc Alloy, Bronze
- Housing color: blue, Beige, Green, Aqua
- Boot color: Yellow, Beige, Aqua, White, Red, Black, Green…
Features:
- Superior qualified standard PC, APC, UPC, SPC polishing
- FC, SC, LC, MU, ST, MT-RJ, etc connector
- Good exchange ability and good durability;
- Available in fiber bunch, ribbon fan-out, pigtail available;
- φ0.9mm, φ2.0mm, φ3.0mm fiber optic cable optional
- Single mode (9125) or multi mode (50125 or 62.5125) fiber available
Applications:
-
CATV, metro Test equipment
-
Telecommunication networks
-
Local area networks (LAN)
-
Wide area networks (WAN)
- Optical Fiber Test and Measurement Systems
- Optical Fiber Communication
- Optical Transmission Backbone
Specification:
| Parameter | Unit | Data | ||||||||||||||||||||
| FC/PC | FC/APC | SC/PC | SC/APC | ST/PC | ST/APC | MU/PC | LC/PC | LC/APC | ||||||||||||||
| Insertion Loss | dB | ≤0.3(single mode); ≤0.1(multi mode) | ||||||||||||||||||||
| Repeatability | dB | ≤0.1 | ||||||||||||||||||||
| Interchangeability | dB | ≤0.2 | ||||||||||||||||||||
| Return Loss | SM | dB | ≥45 | ≥60 | ≥45 | ≥60 | ≥45 | ≥60 | ≥50 | ≥50 | ≥60 | |||||||||||
| MM | dB | ≥36without APC connector | ||||||||||||||||||||
| Mating cycle | cycle | 1000 | ||||||||||||||||||||
| Operating temperature | -40~+80 | -25~+70 | -40~+80 | -25~+70 | ||||||||||||||||||
Ordering Information:
Step 1: Connector Type: FC,SC,LC,ST,MTRJ,MU,MPO,D4,DIN,SMA
Step 2: Connector size: 0.9mm, 2.0mm, 3.0mm
Step 3: Ferrule End-face: PC, UPC, APC
Step 4: Core Type: Single-mode (SM:9/125um), Multimode (MM:50/125um,62.5/125um)
Step 5: Boot color: Black, Blue, White, Red, Yellow, Green, Beige, Aqua
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
Our service:
- Standard and customized OEM products from small to large quantity are welcome.
- Compliance with global environmental industry with RoHS and SGS standards.
- All products are 100% fully tested by our technical expertise.
- We could add customer's logo in the label.
