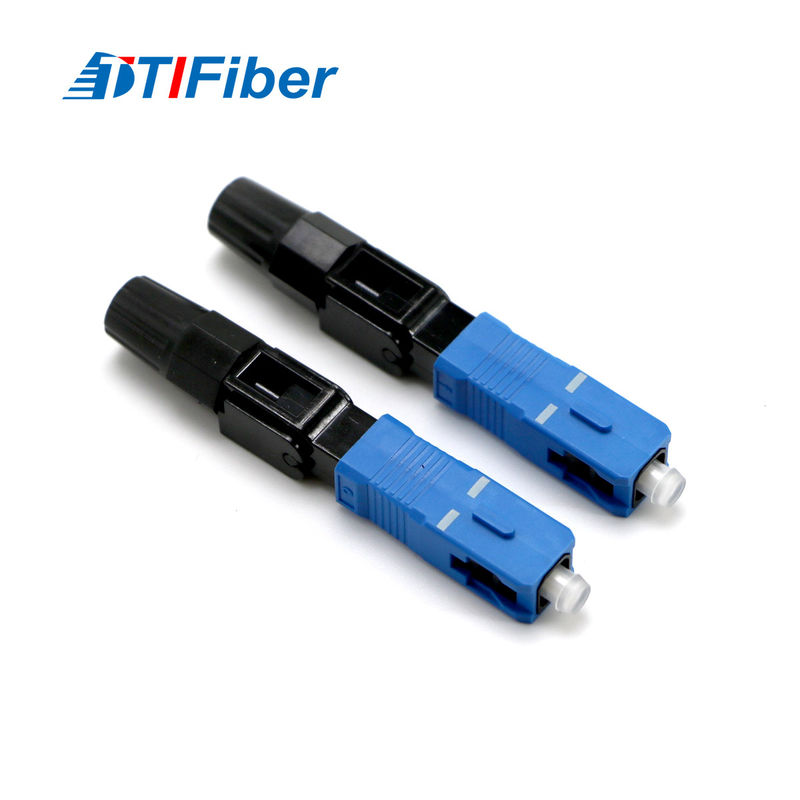

SC / UPC Fiber Optic Quick Connector For FTTH

SC / UPC Fiber Optic Quick Connector For FTTH

Product Details:

Place of Origin: Guangdong, China
Brand Name: TTI
Certification: ROHS, SGS
Model Number: SC/UPC

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1PCS/PE Bag
Delivery Time: 3-5days
Payment Terms: T/T, , Monthly settlement
Supply Ability: 10000pcs/day
Get Best Price Contact Now

Detail Information

Product Name: Fiber Optic SC/UPC Fast Connector Quick Connector Brand: TTI
Mode: Sm Insertion Loss: <=0.3db
Reusable Times: >10 Times Tensile Strength: >50N
Type: SC/UPC
Highlight:

Singlemode Fiber Optic Quick Connector

,

Multimode Fiber Optic Quick Connector

Product Description

Fiber Optic SC/UPC Fast Connector Quick Connector For FTTH



Field Installable Connector (FIC, also called Fast Connector) is a perfect solution for field termination and is widely used in the FTTH market now. FIC is pre-produced in the factory, so there is no need to use epoxy, polishing, and crimping in the field. This makes fiber terminations fast, easy and reliable.



Feature:

  • No special assembling tool
  • Easy for learning technology by a simple assembling method (within 1 and half minutes)
  • Minimize the defect rate by features of removal and reusable.
  • Easy for assembling with mechanical splice and no polishing



Application:

  • Optical network maintaining and repair.
  • Local area network environment of connection.
  • Fiber optic distribution frame.
  • Terminal connection-leg of FTTH optic network.



Specification:



Article value
Insertion loss ≤0.3 (max 0.4)
Return loss ≥60dB
Connector type SC/APC
Cable drop 3.0mm / flat 2x3mm cable
Fiber clamping force ≥3N
Tensile Strength Typical ≥40N (Max 50N)
Online tensile strength 20N IL variation (≤0.2dB) RL variation (≤5dB)
Working Temperature -40℃ ~ +75℃
Can be repeatedly used Possible



Ferrule Hole Sizes:
Singlemode
125.0+1/-0um, concentricity<=1.0um
125.5+1/-0um, concentricity<=1.0um
126.0+1/-0um, concentricity<=1.0um


Multimode
125um concentricity <=3um
127um concentricity <=3um
128um concentricity <=3um





Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
