SC/UPC - ST/UPC Metal Type Fiber Optic Hybrid Adapter IEC 61754-13
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS |
| Model Number: | FC-SC |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25pcs/Case |
| Delivery Time: | 2-3 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/day |
|
Detail Information |
|||
| Color: | Red | Polish: | Upc |
|---|---|---|---|
| Materials: | Metal | Product: | Fiber Optic Hybrid Adapter |
| Certificate: | ISO | Connector: | ST-SC |
| Operating Temp: | -40~70°C | ||
| High Light: | UPC Fiber Optic Hybrid Adapter,Fiber Optic Hybrid Adapter IEC 61754-13,SC/UPC - ST/UPC Fiber Optic Adapter |
||
Product Description

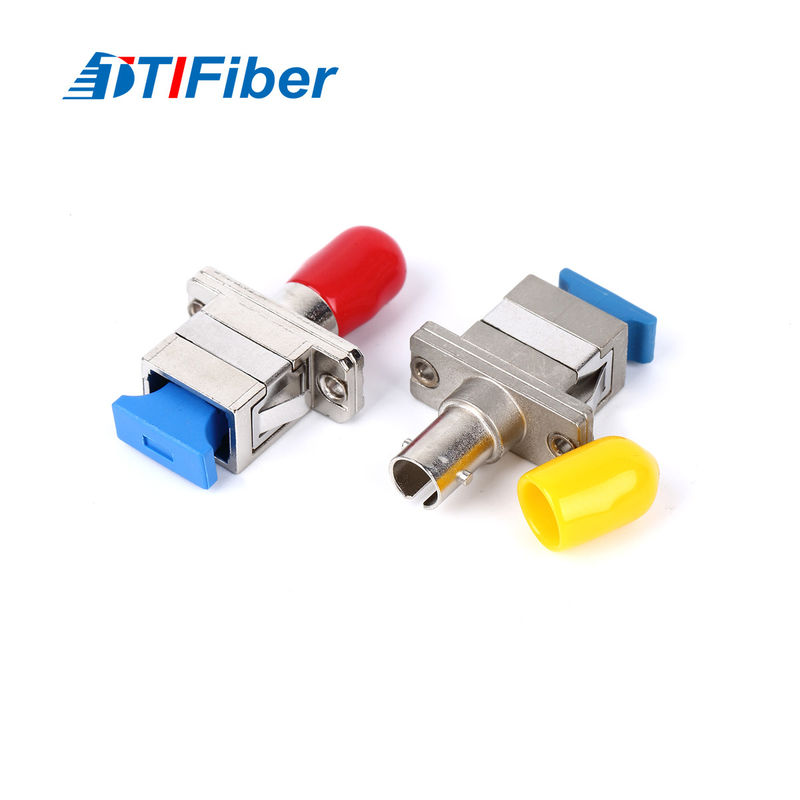

SC/UPC-ST/UPC Metal type Fiber Optic Hybrid Adapter
Fiber Optic Adapter Description:
Fiber optic adapters (also called couplers) are designed to connect two fiber optic cables together. They come in versions to connect single fibers together (simplex), two fibers together (duplex), or sometimes four fibers together (quad). Adapters are designed for multimode or singlemode cables. The singlemode adapters offer more precise alignment of the tips of the connectors (ferrules).
Fiber Optic Adapter Quick Details
- Type: ST-SC
- Mode: Singlemode and Multimode
- End-face: UPC, APC
- Structure: One body
- Sleeve: Ceramic sleeve, Bronze sleeve
- Housing: Zinc alloy, Bronze
Fiber Optic Adapter Features:
- Excellent Insertion Loss
- Good inerchangeability
- Environmentally Stable and Reliable
- Accurate Size
- Applicable standard: IEC 61754-13
- Optional Hybrid adapter
Fiber Optic Adapter Application:
- Local Area Networks
- CATV System
- Telecommunication Networks
- Equipment Test
Specification:
| Type | SC/FC/ST/LC/MU/MTRJ/MPO |
| Insertion Loss(dB) | SM≤0.2dB, MM≤0.3dB |
| Repeatability(dB) | ≤0.1dB |
| Mechanism Durability(500 cycles, dB) | ≤0.2dB |
| Temperature Range | -40°C-+85°C |
| Material of sleeve | Zirconia or Bronze |
