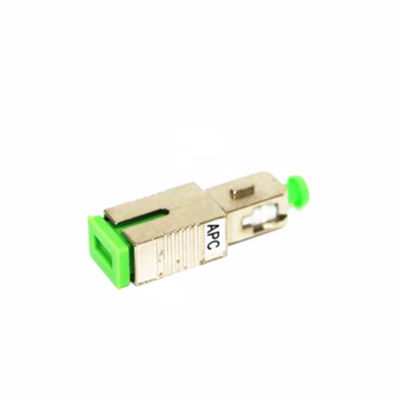

SC APC FTTH Variable Optical Attenuator Plug Type Female Male Fixed Multimode
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI |
| Certification: | CE ROSH |
| Model Number: | Fiber Optic Attenuator |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PE bag and carton |
| Delivery Time: | 5-8 work days |
| Supply Ability: | 50000 pieces per day |
|
Detail Information |
|||
| Application: | Telecommunication | Color: | Customized |
|---|---|---|---|
| Certification: | CE RoHS ISO9001 | Fiber Type: | SM/MM |
| Ferrule Type: | Zirconia Ceramic | Optical Connector: | FC SC LC ST |
| Highlight: | fixed optical attenuator,variable optical attenuator |
||
Product Description
Description:
Fiber Optic Attenuator is used in a wide variety of applications and can satisfy almost any requirement where a reduction in power is needed.
Features:
- Complied with Telcordia (GR-910-CORE and GR-1221-CORE).
- Visual Tested with 800X magnification: Three Times (After Polishing, Before Assembly, Before Delivery)
- 100% Geometrical Inspection: Radius(10-25mm/PC), Offset(0-50um), Fiber Height(+/-50nm)
- High Optical Power Endurance: up to 1000mW (=1W)
- High Reliability: Specified for Over 500 mating
Specification:
| Item | Parameter |
| Model | Fixed, Female&Male, In-line, Variable |
| Operating Wavelength | SM:1310/1550nm MM: 850/1300nm |
| Attenuation Range | 1~30dB |
| Return Loss | PC:≥50dB UPC: ≥55dB APC: ≥60db |
| Attenuation Tolerance | ≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB) |
| Maximum Optical Input Power | 1000mW |
| Polarization Dependent Loss | ≤0.1dB |
| Working Temperature | -40°C~+75°C |
| Storage Temperature | -40°C~+ 85°C |
| Humidity | 95%RH |
Application
CATV
Telecommunication networks
Test equipment
Metro
Local Area Networks(LANs)
Data processing networks
Multimedia
Gigabit Ethernet
Active device/Transceiver
Features
Bellcore Compliant
Wavelength Independent (DWDM)
Durability (well over 100mw)
Simple and Reliable structure
Ordering Information:
SC/APC-MM-4dB-Female&Male
Step 1: Connector type: FC, SC, LC, ST, MU
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB
Step 5: Mode: Fixed, Female&Male, In-line, Variable
Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300n
