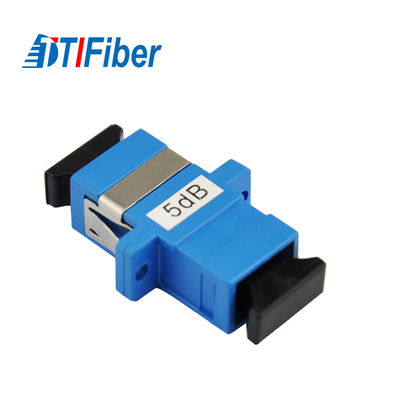

Good Stability Fiber Optic Attenuator Singlemode Simplex SC SC Fixed 1db/5dB
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS, SGS |
| Model Number: | 001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 2-3 days |
| Payment Terms: | T/T, , Monthly settlement |
| Supply Ability: | 5000pcs/Day |
|
Detail Information |
|||
| Product: | Fiber Optic Attenuator | Brand: | Tti |
|---|---|---|---|
| Application: | Lan | Feature: | Good Stability |
| Attenuation Range: | 1-10db | Operating Wavelength: | Sm 1310/1550nm Mm 850/1300nm |
| Operating Temperature: | -25~75 Degree | Storage Tempt.: | -40~85 Degree |
| Highlight: | variable optical attenuator,inline optical attenuator |
||
Product Description
Fiber Attenuator Singlemode Simplex SC SC attenuator Fixed 1db/5dB
Quick Detail:
- Name: Fixed Fiber optic attenuator
- PC, UPC, and APC polish types optional
- attenuation fiber inside
- SC,LC,FC,ST,MU Optional
- Mode: Singlemode, Multimode
- Operating Wavelength: 1310nm, 1550nm, 850nm, 1300nm
Description:
Attenuators are also used to balance out transmission lines that otherwise would have unequal signal levels.
Features:
- Complied with Telcordia (GR-910-CORE and GR-1221-CORE).
- Visual Tested with 800X magnification: Three Times (After Polishing, Before Assembly, Before Delivery)
- 100% Geometrical Inspection: Radius(10-25mm/PC), Offset(0-50um), Fiber Height(+/-50nm)
- High Optical Power Endurance: up to 1000mW (=1W)
- High Reliability: Specified for Over 500 mating
Application:
- Fiber Optic Communication Systems
- DWDM Equipment
- Fiber Optic CATV
- Optical LAN
- Optical CATV
- Local Area Networks
- Optical fiber communication networks
Specification:
| Attenuation value | 1,3, 5,10, 15, 20, 25 dB |
| Attenuation precision | 5dB±0.3dB 10dB±1dB 10dB±10% |
| Return loss | PC 45dB APC60dB |
| Operation wavelength | 1310nm and 1550nm(SM) |
| Polarization loss | 0.1dB |
| Operation temperature | -40°C ~ +75°C |
| Storage temperature | -40°C ~ +85°C |
| Temperature(Unencapsulation) | 95%RH Apply Telecordia standard(GR-910-CORE) |
Ordering Information:
FC/UPC-SM-15dB-Fixed
Step 1: Connector type: FC, SC, LC, ST, MU
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB
Step 5: Mode: Fixed, Female&Male, In-line, Variable
Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nm
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
Our service:
- Standard and customized OEM products from small to large quantity are welcome.
- Compliance with global environmental industry with RoHS and SGS standards.
- All products are 100% fully tested by our technical expertise.
- we could add customer's logo in the label.
