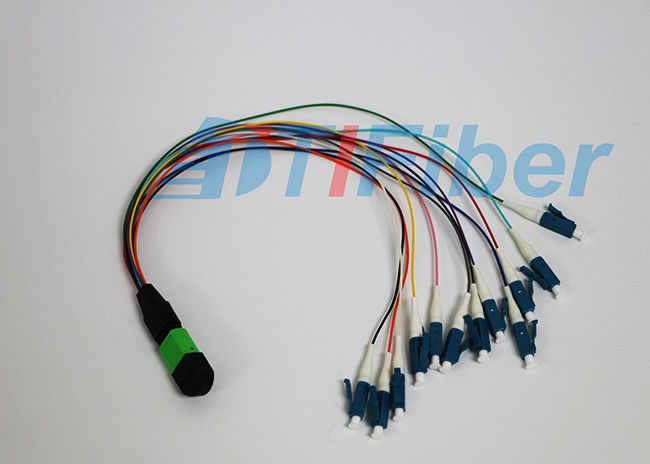

MPO / APC - LC / UPC 12 Cores Fiber Optic Pigtail Ruggedized round cable
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS, SGS, ISO9001 |
| Model Number: | FP-MPO-LC |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T, , Monthly settlement |
| Supply Ability: | 7000pcs/Day |
|
Detail Information |
|||
| Model Name: | Fiber Optic Pigtail | Connector Type: | SC FC ST LC MU MTRJ MPO D4 SMA... |
|---|---|---|---|
| Fiber Mode: | Singlemode, Multimode | Fiber Count: | 12 Cores |
| Cable Type: | PVC LSZH OFRR OFNP | Fan-out: | 0.9mm 1.5meters Orange |
| High Light: | single mode pigtail,pigtail fibra optical |
||
Product Description
MPO / APC - LC / APC Singlemode 12 Cores Fiber Optic Patch Cord
Features:
- Push-pull latching
- Easy assembly, no crimp tool needed
- Alignment achieved with high precision guide pins
- Designed for low loss and standard loss SM and MM applications
- Ruggedized round cable, oval cable and bare ribbon options available
Applications:
- Active dvice termination
- Telecommunication networks
- Metro
- Local Area Networks(LANs)
- Data Processing networks
- Test Equipment
- Premise installations.
Specification:
|
Pigtail Connector |
PC (SM) |
UPC (SM) |
APC (SM) |
MM |
|
Return Loss (dB) |
≥45 |
≥50 |
≥60 |
≥35 |
|
Insertion Loss (dB) |
≤0.2 (max≤0.3) |
|||
|
Repeatability (dB) |
≤0.1 |
|||
|
Durability(1/Matings) |
≥500 |
|||
|
Operation Temperature (°C) |
-25~+70 |
|||
|
Tensile Strength (N) |
≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9 |
|||
|
Fiber |
9/125um, 50/125um,62.5/125um,ect |
|||
|
diameter |
0.9mm 2.0mm, 3.0mm etc |
|||
|
Cable material |
PVC, LSZH |
|||
|
Cores |
Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc |
|||
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
