LC/APC SM 9/125 G657A PVC LSZH Fiber Pigtail 1m 2m 3m

LC/APC SM 9/125 G657A PVC LSZH Fiber Pigtail 1m 2m 3m

Product Details:

Place of Origin: China
Brand Name: TTI
Certification: CE
Model Number: Fiber Optic Pigtail

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard Package(Surport OEM/ODM)
Delivery Time: 5-8 Work Days
Payment Terms: D/A, D/P, T/T, , ,
Supply Ability: 10000 pieces
Get Best Price Contact Now

Detail Information

Product Name: LC/APC SM Pigtail Connector: FC,LC,SC,ST,MPO,DIN,D4,MU
Diameter: 0.9mm Application: Telecommunication
Insertion Loss: ≤0.2dB Length: 1M/3M/5M/10M/Customization
Material: PVC/LSZH Use: FTTH/FTTA/FTTX
High Light:

LSZH Fiber Pigtail

,

PVC Fiber Pigtail

,

G657A OFC Pigtail

Product Description

FTTH SC UPC 50/125 OM4 Multimode Violet Fiber Optic Pigtail





Patch cord pigtail, is in the end of a fiber optic cable plus fiber connector, the other end of the original state, to achieve optical network equipment and equipment, equipment and cable between the active connection, simple, convenient and fast. It is one of the essential passive products for optical network construction.


TTI can provide all kinds of patch cord pigtail products; the transmission mode, optical cable type and connector type can be arbitrarily matched. It has the advantages of stable transmission, high reliability and customization; it is widely used in optical network scenarios such as central office, FTTX and LAN etc.



1. Feature



(1) Low insertion loss and back reflection loss

(2) Good echangeability

(3) Good Durability

(4) High temperature stability

(5) Standard: Telcordia GR-326-CORE



2. Application

(1) FTTH, LAN, PON & Optical CATV, Local ring net

(2) Optical fiber communication system

(3) Optical fiber test equipment

(4) Optical fiber sensor

(5) Industry and military application


3. Speciafication

  LC/APC SM Fiber Optic Pigtail
Fiber Mode
SM/MM
Fiber Count
Simplex/Duplex
Fiber Grade
Bend Insensitive
Cable Diameter
0.9 mm
Cable Jacket
PVC/LSZH
Parameter
SC/LC/FC/ST/MPO/DIND4/MU Connector
SM
MM
PC
UPC
APC
PC
Insertion loss
≤0.25dB
≤0.25dB
≤0.25dB
≤0.25dB
Return loss
≥50dB
≥55dB
≥60dB
/
operating wavelength
1310nm, 1550nm
850nm, 1300nm
Ferrule Concentricity
≤1um
≤4um
Wavelength
1310 nm/1550 nm
Durability
>1000 Times
Working temperature
-40~85°C
Storage temperature
-40~85°C




4. Product Details

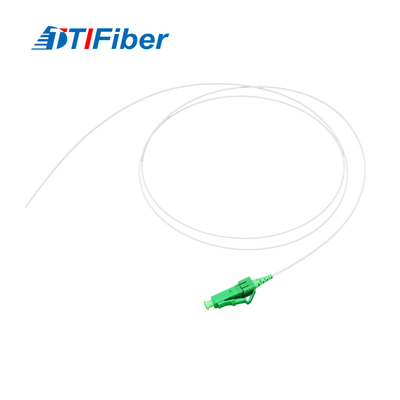

LC/APC SM 9/125 G657A PVC LSZH Fiber Pigtail 1m 2m 3m 0

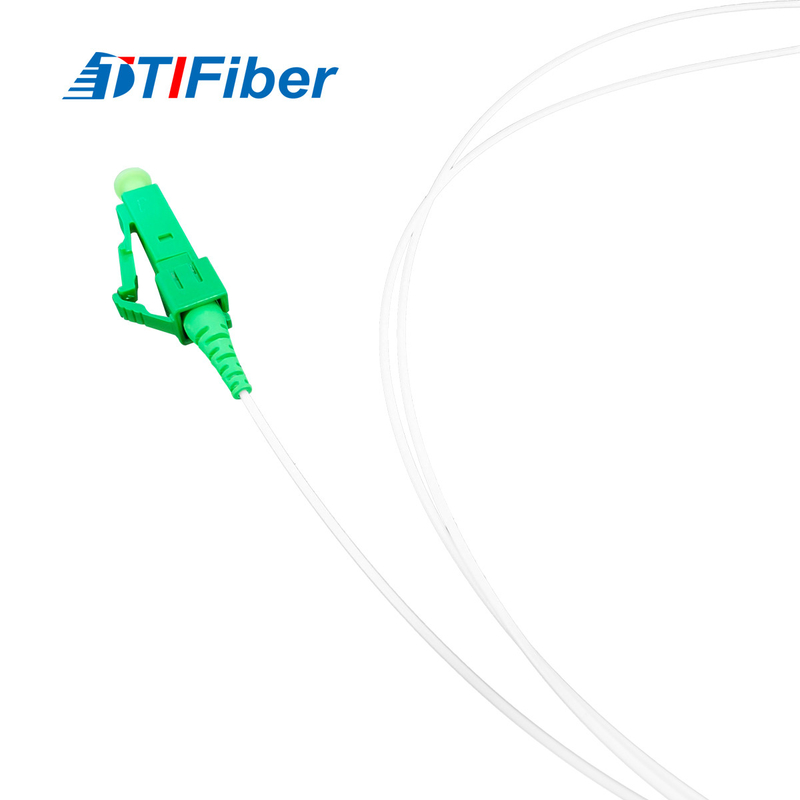

LC/APC SM 9/125 G657A PVC LSZH Fiber Pigtail 1m 2m 3m 1

LC/APC SM 9/125 G657A PVC LSZH Fiber Pigtail 1m 2m 3m 2











5. FAQ:



1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.

2. Do you accept OEM,ODM?
Yes, we accept them .

3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.

4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.

5. What's the Payment?
We accept all online payments .
