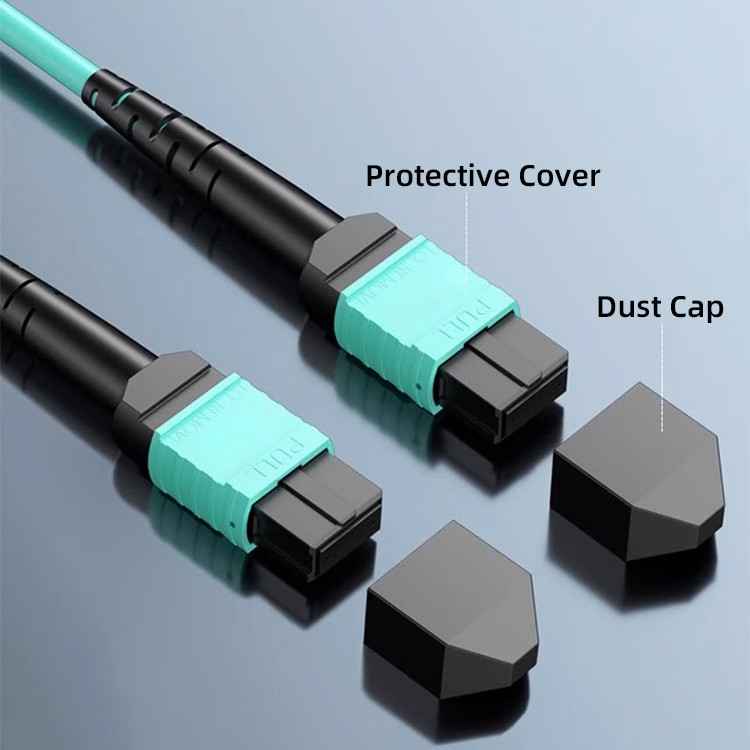

MPO OM3 OM4 PVC LSZH fiber optic patch cord
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | OEM |
| Certification: | ROHS |
| Model Number: | MPO |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1pcs/PE bag |
| Delivery Time: | in 2-4 days |
| Payment Terms: | , T/T, D/A, L/C |
| Supply Ability: | 7000pcs / Day |
|
Detail Information |
|||
| Model: | MPO Fiber Patch Cord | Polished: | UPC |
|---|---|---|---|
| Insertion Loss: | < 0.35dB | Cable Jacket: | PVC LSZH LSOH PE HDPE |
| Cable Type: | Round Cable | Operating Temperature: | 40~85°C |
| Highlight: | MPO fiber optic patch cord |
||
Product Description
MPO OM3 OM4 PVC LSZH fiber optic patch cord
Technical Parameters
|
Parameter
|
unit
|
Numerical value
|
||||
|
Connector type
|
/
|
MPO-MPO,MTP-MTP
|
||||
|
Central wavelength
|
nm
|
1550
|
1310
|
1300
|
850
|
|
|
Maximum insertion loss (23℃)
|
dB |
Typical value 0.3
maximum 0.75 |
Typical value 0.3
maximum 0.75 |
Typical value 0.3
maximum 0.75 |
Typical value 0.3
maximum 0.75 |
|
|
Minimum return loss (23℃) |
PC
|
dB
|
≥45
|
≥20
|
||
|
UPC
|
dB
|
≥50
|
≥25
|
|||
|
APC
|
dB
|
≥60
|
≥45
|
|||
|
Repeatability
|
dB
|
≤0.1
|
||||
|
Interchangeability
|
dB
|
≤0.2
|
||||
|
Axis alignment Angle tolerance
|
deg
|
±0.3
|
||||
|
Nuber of plug
|
times
|
≥500
|
||||
|
Operating temperature
|
℃
|
-20~+70
|
||||
|
Storage temperature
|
℃
|
-40~+85
|
||||
|
Central wavelength
|
1550nm,1310nm, 1300nm,850nm
|
|
Enter the connector type
Out-put connector type |
MPO/UPC(M),MPO/UPC(F),MTP/UPC(M),MTP/UPC(F)
MPO/APC(M),MPO/APC(F),MTP/APC(M),MTP/APC(F) |
|
MPO/UPC(M),MPO/UPC(F),MTP/UPC(M),MTP/UPC(F)
|
|
|
MPO/APC(M),MPO/APC(F),MTP/APC(M),MTP/APC(F)
|
|
|

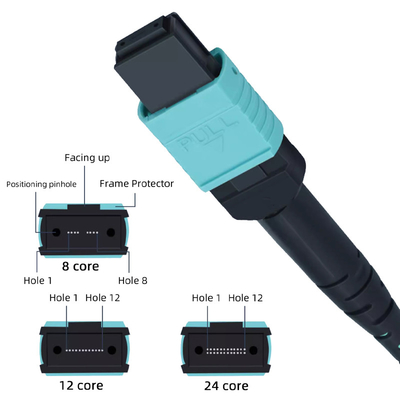

Optical fiber number
|
8=8 Fiber, 12=12 Fiber, 16=16 Fiber, 24=24 Fiber, or specified
|
|
Optical fiber type
|
G652D,G657A1,G657A2,OS2,OM1,OM2,OM3,OM4,OM5,or specified
|
|
Fiber diameter
|
Φ9/125um,Φ50/125um,Φ62.5/125m
|
|
Cable outer diameter
|
Φ3.0mm,Φ3.5mm,Φ4.5mm,or specified
|
|
Product line sequence
The pigtail pigtail |
A polarity, B polarity, C polarity
MPO/UPC(M),MPO/UPC(F),MTP/UPC(M),MTP/UPC(F)
|
|
MPO/APC(M),MPO/APC(F),MTP/APC(M),MTP/APC(F)
|
