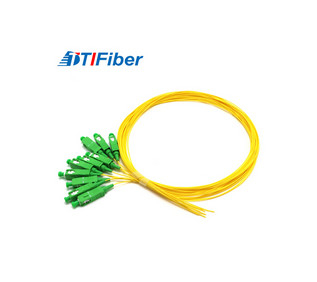

FTTH PC UPC APC Single Mode Fiber Pigtails Simplex Duplex 0.9mm
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS, CE |
| Model Number: | FPG |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5 days |
| Payment Terms: | T/T, L/C, Western Union, PayPal |
| Supply Ability: | 7000pcs/Day |
|
Detail Information |
|||
| Jacket: | PVC/LSZH, PVC Or LSZH | Color: | Blue, Yellow/orange/Aqua, Aqua, Yellow, Orange |
|---|---|---|---|
| Length: | 1M/2M/3M So On | Connector Type: | SC/LC/ST/FC |
| Insertion Loss: | ≤0.20, MM≤0.75dB, SM≤0.50dB, ≤0.1dB, IL<0.2db | Connector: | FC, SC, SC/APC (LC, LC, FC For Choice) |
| Fiber Type: | SM 9/125 G652D, OS1, 9/125 Tight Buffered Fiber Single Mode Simplex, G652D/G657A1/G657A2 Etc., G657A1 Etc. | Cable Diameter: | 0.9/2.0/3.0mm, 3mm, 0.9mm, 2mm |
| Jacket Material: | Customize, Can Be Customized, 1M; 2M; 4M Etc., 10Meter | ||
| High Light: | APC Single Mode Fiber Pigtails,FTTH Single Mode Fiber Pigtails,Single Mode Pigtails Simplex |
||
Product Description
FTTH Fiber Optic Pigtail LC SC ST FC PC UPC APC Simplex SInglemode SM 0.9mm Fiber Optic Patch Cord Pigtail
Description:
Our pigtails provides high reliability and flexibility for our customers in different industries. Our top -of - the - line fiber optic cable assembles and stringent manufacturing process ensures the excellent optical performance for our pigtails with traceable data. All pigtails can be customized in length, fiber types and connector types to suit each customer requirement with our state-of-the-art production facilities.
Features:
Applications:
- FTTH application
- Premise installations
- Data processing networks
- Wide Area Networks (WANs)
- Industrial ,mechanical and military
Specification:
| Parameter | Single Mode | Multi Mode | ||||
| Basic | Fiber connector | FC, SC, LC, ST, MU, MTRJ, MPO | ||||
| Ferrule End-face | PC | UPC | APC | UPC | ||
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3bB | ||
| Return Loss | ≥50dB | ≥55dB | ≥60dB | ≥35dB | ||
| Ceramic Ferrule Specification | 125.5um concentricity deviations:<=1um | 127um concentricity deviations:<=3um | ||||
| Suitable Fiber | 9/125um | 50/125um,62.5/125um | ||||
| End-face Geometry | Radius of Curvature | 7~25mm | 5~12mm | N/A | ||
| Fiber Protrusion | ≤50nm | ≤100nm | N/A | |||
| Fiber Under Cut | ≤100nm | ≤100nm | N/A | |||
| Apex offset | ≤50um | |||||
| Mechanical | Exchangeability | ≤0.2dB | ||||
| Salt Spray | ≤0.1dB | |||||
| Drop | ≤0.2dB(1.5M, 5 drops) | |||||
| Vibration | IL ≤0.2dB(550Hz, 1.5mm) | |||||
| Repeatability | ≤ 0.1dB(1000 times) | |||||
| Durability | > 1000 times | |||||
| Operating Temperature | -40°C ~ +85°C | |||||
Ordering Information:
Step 1: Connector Type: FC, SC, LC, ST, MTRJ, MU, MPO
Step 2: Ferrule End-face: PC, UPC or APC
Step 3: Fiber Type: Single Mode(SM) or Multimode
Step 4: Cable Core: Simplex or Duplex
Step 5: Cable Diameter: 0.9mm, 2.0mm or 3.0mm
Step 6: Cable Length: 1, 2, 3 meter or customized
Step 7: Cable Type: PVC, LSZH, OFNR, OFNP…
Step 8: Cable color: Yellow, Orange, White, Blue, Green, Red, ...
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
Our service:
- Standard and customized OEM products from small to large quantity are welcome.
- Compliance with global environmental industry with RoHS and SGS standards.
- All products are 100% fully tested by our technical expertise.
- Our patch cord warranty period is one year.
Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
Advantages Of Fiber Optic Splitter
1. Adopt high strength stainless steel, pass salt spray test
2. Ferrule core is less than 0.2um
3. Adopt 100% new raw material, ROHS compliance
4. Low Insertion loss
5. Low PDL Compact Design
6. Good channel-to-channel uniformity
7. Wide Operating Wavelength: from 1260nm to 1650nm
8. Wide Operating Temperature: from -40℃ to 85℃
