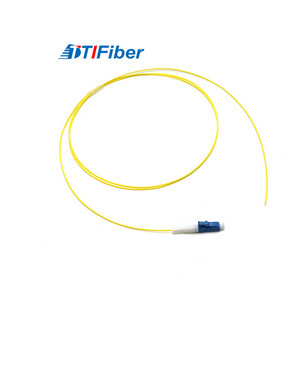

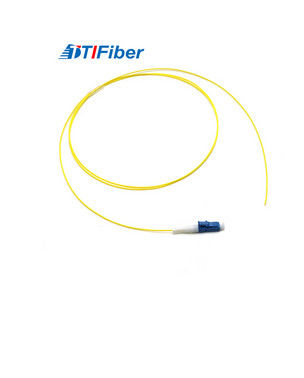

FTTH Simplex Duplex Fiber Optic Pigtail G652d G657a SC LC ST FC
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS, CE |
| Model Number: | FPG |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T |
| Supply Ability: | 7000pcs/Day |
|
Detail Information |
|||
| Jacket: | PVC/LSZH, PVC Or LSZH | Color: | Blue, Yellow/orange/Aqua, Aqua, Yellow, Orange |
|---|---|---|---|
| Connector Type: | SC/LC/ST/FC | Insertion Loss: | ≤0.20, MM≤0.75dB, SM≤0.50dB, ≤0.1dB, IL<0.2db |
| Connector: | FC, SC, SC/APC (LC, LC, FC For Choice) | Fiber Type: | SM 9/125 G652D, OS1, 9/125 Tight Buffered Fiber Single Mode Simplex, G652D/G657A1/G657A2 Etc., G657A1 Etc. |
| Highlight: | Duplex Fiber Optic Pigtail,Simplex Fiber Optic Pigtail,FTTH Duplex patch cord pigtail |
||
Product Description
Factory Supply Optical Fibre Cable Oem Fiber Optic Pigtail G652d/G657a Simplex Or Duplex Fiber Optic Pigtail
Description:
PLC splitter is based on planar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently. DYSFO’ PLC splitter offers superior optical performance, high stability and high reliability, meet various application requirements in different environments.
Features:
1. Adopt high strength stainless steel, pass salt spray test
2. Ferrule core is less than 0.2um
3. Adopt 100% new raw material, ROHS compliance
4. Low Insertion loss
5. Low PDL Compact Design
6. Good channel-to-channel uniformity
7. Wide Operating Wavelength: from 1260nm to 1650nm
8. Wide Operating Temperature: from -40℃ to 85℃
Applications:
- FTTH application
- Premise installations
- Data processing networks
- Wide Area Networks (WANs)
- Industrial ,mechanical and military
Specification:
| Parameter | Single Mode | Multi Mode | ||||
| Basic | Fiber connector | FC, SC, LC, ST, MU, MTRJ, MPO | ||||
| Ferrule End-face | PC | UPC | APC | UPC | ||
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3bB | ||
| Return Loss | ≥50dB | ≥55dB | ≥60dB | ≥35dB | ||
| Ceramic Ferrule Specification | 125.5um concentricity deviations:<=1um | 127um concentricity deviations:<=3um | ||||
| Suitable Fiber | 9/125um | 50/125um,62.5/125um | ||||
| End-face Geometry | Radius of Curvature | 7~25mm | 5~12mm | N/A | ||
| Fiber Protrusion | ≤50nm | ≤100nm | N/A | |||
| Fiber Under Cut | ≤100nm | ≤100nm | N/A | |||
| Apex offset | ≤50um | |||||
| Mechanical | Exchangeability | ≤0.2dB | ||||
| Salt Spray | ≤0.1dB | |||||
| Drop | ≤0.2dB(1.5M, 5 drops) | |||||
| Vibration | IL ≤0.2dB(550Hz, 1.5mm) | |||||
| Repeatability | ≤ 0.1dB(1000 times) | |||||
| Durability | > 1000 times | |||||
| Operating Temperature | -40°C ~ +85°C | |||||
Ordering Information:
Step 1: Connector Type: FC, SC, LC, ST, MTRJ, MU, MPO
Step 2: Ferrule End-face: PC, UPC or APC
Step 3: Fiber Type: Single Mode(SM) or Multimode
Step 4: Cable Core: Simplex or Duplex
Step 5: Cable Diameter: 0.9mm, 2.0mm or 3.0mm
Step 6: Cable Length: 1, 2, 3 meter or customized
Step 7: Cable Type: PVC, LSZH, OFNR, OFNP…
Step 8: Cable color: Yellow, Orange, White, Blue, Green, Red, ...
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
