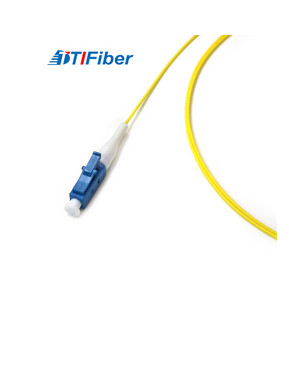

G652d G657a Fiber Optic Pigtail Single Mode for FTTH Wide Area Networks
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS, CE |
| Model Number: | FPG |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T |
| Supply Ability: | 7000pcs/Day |
|
Detail Information |
|||
| Jacket: | PVC Or LSZH | Color: | Blue, Yellow/orange/Aqua, Aqua, Yellow, Orange |
|---|---|---|---|
| Connector Type: | SC/LC/ST/FC | Connector: | FC, SC, SC/APC (LC, LC, FC For Choice) |
| Fiber Type: | SM 9/125 G652D, OS1, 9/125 Tight Buffered Fiber Single Mode Simplex, G652D/G657A1/G657A2 Etc., G657A1 Etc. | Cable Diameter: | 0.9/2.0/3.0mm, 3mm, 0.9mm, 2mm |
| High Light: | G652d Fiber Optic Pigtail,FTTH Fiber Optic Pigtail,G652d single mode fiber pigtails |
||
Product Description
Factory Supply Optical Fibre Cable Oem Fiber Optic Pigtail G652d/G657a Simplex Or Duplex Fiber Optic Pigtail
Description Of Fiber Optic Splitter
Fiber Optic Splitter also named Planar Lightwave Circuit Splitters or balanced optical splitter, this optical splitter are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. The 1x16 optical splitter with 1 input and 16 output fibers with an even split ratio across all fibers regardless of input wavelength.
Features:
- Good uniformity and low insertion loss
- Low Polarization Dependent Loss
- Excellent Environmental Stability
- Stability Telcordia GR-1221 and GR-1209
- High Reliability and Stability
Applications:
- FTTH application
- Premise installations
- Data processing networks
- Wide Area Networks (WANs)
- Industrial ,mechanical and military
Specification:
| Parameter | Single Mode | Multi Mode | ||||
| Basic | Fiber connector | FC, SC, LC, ST, MU, MTRJ, MPO | ||||
| Ferrule End-face | PC | UPC | APC | UPC | ||
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3bB | ||
| Return Loss | ≥50dB | ≥55dB | ≥60dB | ≥35dB | ||
| Ceramic Ferrule Specification | 125.5um concentricity deviations:<=1um | 127um concentricity deviations:<=3um | ||||
| Suitable Fiber | 9/125um | 50/125um,62.5/125um | ||||
| End-face Geometry | Radius of Curvature | 7~25mm | 5~12mm | N/A | ||
| Fiber Protrusion | ≤50nm | ≤100nm | N/A | |||
| Fiber Under Cut | ≤100nm | ≤100nm | N/A | |||
| Apex offset | ≤50um | |||||
| Mechanical | Exchangeability | ≤0.2dB | ||||
| Salt Spray | ≤0.1dB | |||||
| Drop | ≤0.2dB(1.5M, 5 drops) | |||||
| Vibration | IL ≤0.2dB(550Hz, 1.5mm) | |||||
| Repeatability | ≤ 0.1dB(1000 times) | |||||
| Durability | > 1000 times | |||||
| Operating Temperature | -40°C ~ +85°C | |||||
Ordering Information:
Step 1: Connector Type: FC, SC, LC, ST, MTRJ, MU, MPO
Step 2: Ferrule End-face: PC, UPC or APC
Step 3: Fiber Type: Single Mode(SM) or Multimode
Step 4: Cable Core: Simplex or Duplex
Step 5: Cable Diameter: 0.9mm, 2.0mm or 3.0mm
Step 6: Cable Length: 1, 2, 3 meter or customized
Step 7: Cable Type: PVC, LSZH, OFNR, OFNP…
Step 8: Cable color: Yellow, Orange, White, Blue, Green, Red, ...
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
Our service:
- Standard and customized OEM products from small to large quantity are welcome.
- Compliance with global environmental industry with RoHS and SGS standards.
- All products are 100% fully tested by our technical expertise.
- Our patch cord warranty period is one year.
Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
