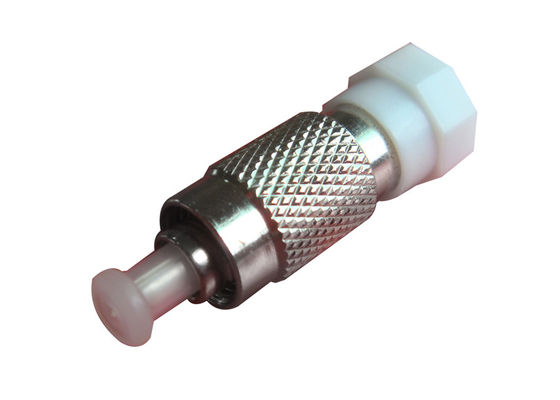

High Return Loss Female & Male Fiber Attenuator for FC / APC Patch Cord

High Return Loss Female & Male Fiber Attenuator for FC / APC Patch Cord

Product Details:

Place of Origin: Guangdong, China
Brand Name: TTI
Certification: ROHS, SGS
Model Number: FA-FC

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1PCS/PE Bag
Delivery Time: 2-3 days
Payment Terms: T/T, , PayPal,Monthly settlement
Supply Ability: 5000pcs/Day
Get Best Price Contact Now

Detail Information

High Light:

fixed optical attenuator

,

variable optical attenuator

Product Description


 High Return Loss Female & Male Fiber Attenuator for FC / APC Patch Cord


Quick Detail:

  1. Name: FC Fiber optic attenuator
  2. Mode: Singlemode, Multimode
  3. Type: Fixed, Female & male
  4. Attenuation value: 1dB~30dB
  5. Operating Wavelength: 1310nm, 1550nm, 850nm, 1300nm
  6. PC, UPC, and APC polish types optional


Description:
Fiber Optic Attenuator is used in a wide variety of applications and can satisfy almost any requirement where a reduction in power is needed.

Features:

  1. Fixed Attenuator(Fixed Type FC, SC, ST, LC)
  2. In-Line Attenuator(Fused and Fiber Jumpers Type)
  3. High Return Loss(In-Line and High RL Type)
  4. Exact and Stable Attenuation(Variable Type)


Application:

  1. Fiber optical CATV
  2. Fiber optical sensor
  3. Testing equipment
  4. Fiber optical telecommunication system


Specification:


ItemParameter
ModelFixed, Female&Male, In-line, Variable
Operating WavelengthSM:1310/1550nm MM: 850/1300nm
Attenuation Range1~30dB
Return LossPC:≥50dB UPC: ≥55dB APC: ≥60db
Attenuation Tolerance≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB)
Maximum Optical Input Power1000mW
Polarization Dependent Loss≤0.1dB
Working Temperature-40°C~+75°C
Storage Temperature-40°C~+ 85°C
Humidity95%RH



Ordering Information:

SC/UPC-SM-3dB-Female&Male

Step 1: Connector type: FC, SC, LC, ST, MU
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB
Step 5: Mode: Fixed, Female&Male, In-line, Variable
Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nm
