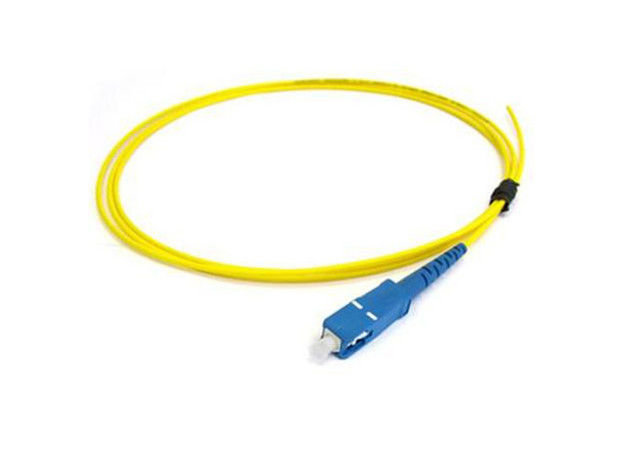

12core SC 3.0mm Optical Fiber Pigtail for Singlemode / Multimode Pigtail
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS, SGS |
| Model Number: | FPG |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T, , Monthly settlement |
| Supply Ability: | 7000pcs/Day |
|
Detail Information |
|||
| High Light: | single mode pigtail,pigtail fibra optical |
||
|---|---|---|---|
Product Description
12core SC 3.0mm Optical Fiber Pigtail for Singlemode / Multimode Pigtail
Quick Detail:
- SM MM Optical pigtail
- Simplex and Duplex, 12core
- Fiber mode: G652D, G657A1, G657A2
- Cable diameter: 0.9mm, 1.6mm, 1.8mm, 2.0mm, 3.0mm
- Cable core: simplex, duplex, 6core,12core, 24core, 48core… customized
- Cable jacket: PVC, LSZH, OFNP, OFNR
- Cable length: 1m, 2m, 3m, 5m....customized
- Cable color: Yellow, Orange, Aqua, White, Red, Green, 12corlors
Description:
All fiber optic pigtails can be made to any length to fit your exact project needs.
Features:
- Lower Insertion Loss
- Good interchange
- Good repeatability
- High Return Loss
- Excellent Repeatability ,exchangeability, wearability and stability
- Environmentally Stable
Applications:
- Fiber to the Indoor (FTTX) Test
- Telecommunications or Data communications
- Telecommunications, Military industry, Medical,
- CATV, LAN, MAN, WAN, Test & Measurement
- Systems Integration for Railway, Metro and Access Network
Specification:
| Parameter | Unit | FC, SC, LC | ST, MU | MT-RJ, MPO | ||||||||||
| SM | MM | SM | MM | SM | MM | SM | ||||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | |||
| Insertion loss(typical) | dB | ≤ 0.3 | ≤ 0.2 | ≤ 0.3 | ≤ 0.2 | ≤ 0.3 | ≤ 0.2 | ≤ 0.2 | ≤ 0.3 | ≤ 0.2 | ≤ 0.2 | ≤ 0.3 | ≤ 0.3 | |
| Return loss | dB | ≥ 45 | ≥ 50 | ≥ 60 | ≥ 30 | ≥ 45 | ≥ 50 | ≥ 30 | ≥ 45 | ≥ 50 | ≥ 35 | ≥ 55 | ≥ 75 | |
| Operating wavelength | nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | 1310, 1510 | |||||||||
| Exchangeability | dB | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | |||||||||
| Vibration | dB | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | |||||||||
| Operating temperature | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||||
| Storage temperature | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||||
| Cable diameter | mm | φ 3.0, φ 2.0, φ 0.9 | ||||||||||||
Ordering Information:
Step 1: Connector Type: FC, SC, LC, ST, MTRJ, MU, MPO
Step 2: Ferrule End-face: PC, UPC or APC
Step 3: Fiber Type: Single Mode(SM) or Multimode
Step 4: Cable Core: Simplex or Duplex
Step 5: Cable Diameter: 0.9mm, 2.0mm or 3.0mm
Step 6: Cable Length: 1, 2, 3 meter or customized
Step 7: Cable Type: PVC, LSZH, OFNR, OFNP…
Step 8: Cable color: Yellow, Orange, White, Blue, Green, Red, ...
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
Our service:
- Standard and customized OEM products from small to large quantity are welcome.
- Compliance with global environmental industry with RoHS and SGS standards.
- All products are 100% fully tested by our technical expertise.
- Our patch cord warranty period is one year.
Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
