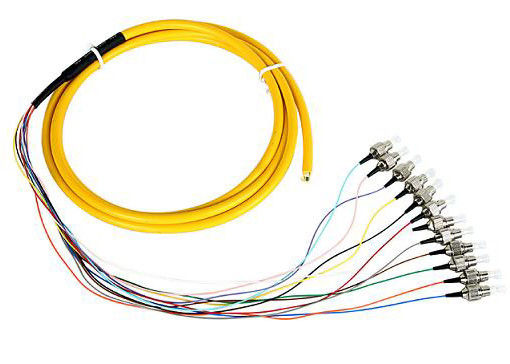

UPC APC FC SC 12core Fiber Pigtail with Polishing SM MM Cable
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI Fiber |
| Certification: | ISO 9001, ISO 14001, REACH， ROHS, CE and CPR certificates |
| Model Number: | FPG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T, , Monthly settlement |
| Supply Ability: | 7000pcs/Day |
|
Detail Information |
|||
| Connector Type: | SC, FC | Ferrule Of End-face: | UPC,APC |
|---|---|---|---|
| Fiber Mode: | Single Mode,Multi Mode | Fiber: | G652D,G657A1or Others |
| Inner: | Ceramic | Length: | 1, 2, 3 Meter Or Customized |
| Cable Type: | PVC, LSZH, PU | Operating Temperature: | -40°C~+75°C |
| Highlight: | single mode pigtail,optical fiber pigtail |
||
Product Description
UPC APC FC SC 12core Fiber Pigtail with Polishing SM MM Cable
Quick Detail:
- Name: SC optical fiber pigtail
- Connector: FC, LC, ST, SC, MTRJ, MU, MPO, D4, SMA
- Mode: Singlemode and Multimode
- Fiber end-face: PC, UPC, APC
- Fiber brand: YOFC, Corning
- Fiber mode: G652D, G657A1, G657A2
Description:
Fiber optic pigtail is with one piece construction and pulls proof design. Low cost but high performance, which makes it one of the most popular cables.
Features:
- Serialized & Individual Test Records
- Guaranteed Zero Defects
- Meets ROHS and Bell core GR 326-core standards
- Custom Configurations Available at No Extra Charge
- Available in fiber bunch, ribbon fan-out, pigtail available
Applications:
- Telecommunication networks
- Fiber optic communication networks
- CATV, LAN, WAN, Test &Measurement
- Optical access network
- Data processing networks
Specification:
| Parameter | Single Mode | Multi Mode | ||||
| Basic | Fiber connector | FC, SC, LC, ST, MU, MTRJ, MPO | ||||
| Ferrule End-face | PC | UPC | APC | UPC | ||
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3bB | ||
| Return Loss | ≥50dB | ≥55dB | ≥60dB | ≥35dB | ||
| Ceramic Ferrule Specification | 125.5um concentricity deviations:<=1um | 127um concentricity deviations:<=3um | ||||
| Suitable Fiber | 9/125um | 50/125um,62.5/125um | ||||
| End-face Geometry | Radius of Curvature | 7~25mm | 5~12mm | N/A | ||
| Fiber Protrusion | ≤50nm | ≤100nm | N/A | |||
| Fiber Under Cut | ≤100nm | ≤100nm | N/A | |||
| Apex offset | ≤50um | |||||
| Mechanical | Exchangeability | ≤0.2dB | ||||
| Salt Spray | ≤0.1dB | |||||
| Drop | ≤0.2dB(1.5M, 5 drops) | |||||
| Vibration | IL ≤0.2dB(550Hz, 1.5mm) | |||||
| Repeatability | ≤ 0.1dB(1000 times) | |||||
| Durability | > 1000 times | |||||
| Operating Temperature | -40°C ~ +85°C | |||||
Ordering Information:
Step 1: Connector Type: FC, SC, LC, ST, MTRJ, MU, MPO
Step 2: Ferrule End-face: PC, UPC or APC
Step 3: Fiber Type: Single Mode(SM) or Multimode
Step 4: Cable Core: Simplex or Duplex
Step 5: Cable Diameter: 0.9mm, 2.0mm or 3.0mm
Step 6: Cable Length: 1, 2, 3 meter or customized
Step 7: Cable Type: PVC, LSZH, OFNR, OFNP…
Step 8: Cable color: Yellow, Orange, White, Blue, Green, Red, ...
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
Our service:
- Standard and customized OEM products from small to large quantity are welcome.
- Compliance with global environmental industry with RoHS and SGS standards.
- All products are 100% fully tested by our technical expertise.
- Our patch cord warranty period is one year.
Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
