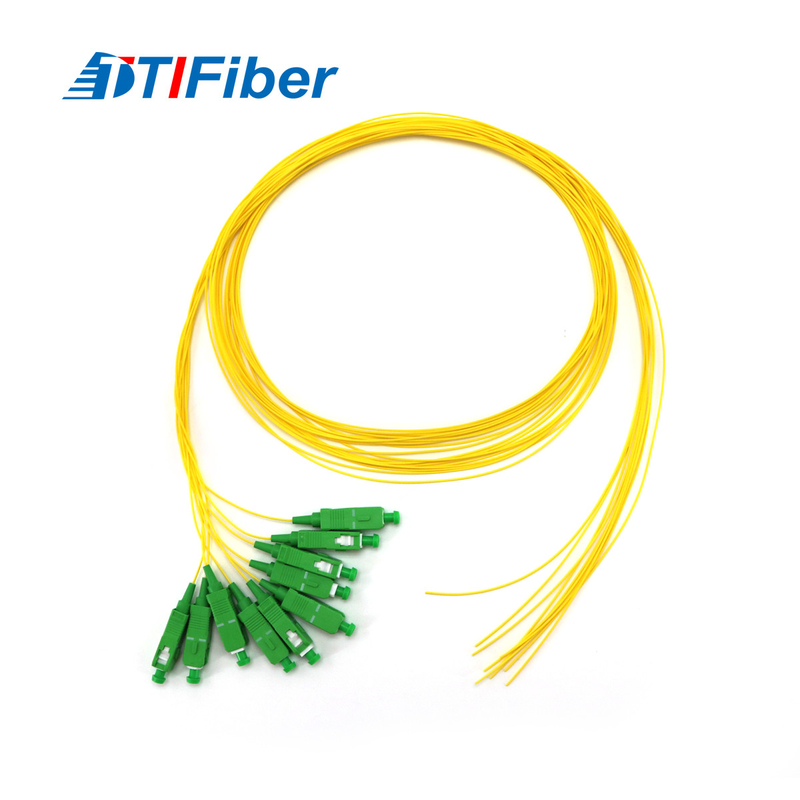

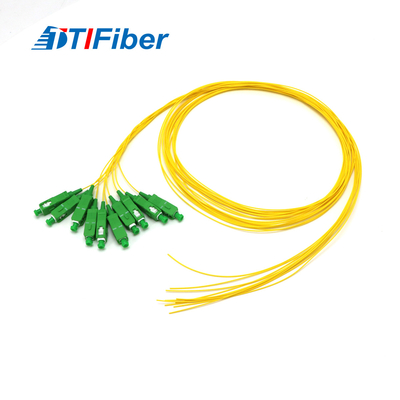

0.9mm SC APC Simplex Fiber Optic Cable Pigtail Yellow Single Mode
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | TTI |
| Certification: | CE / ROHS |
| Model Number: | SC |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Boxes |
| Delivery Time: | 2-3 Days |
| Payment Terms: | L/C, T/T, D/A, D/P, , ,Paypal |
| Supply Ability: | 5000 Pieces / Day |
|
Detail Information |
|||
| Name: | Optical Fiber Pigtail | Type: | SC |
|---|---|---|---|
| Polishing: | APC | Fiber: | Singlemode(SM) |
| Color: | Yellow | Diameter: | 0.9mm |
| Jacket: | PVC LSZH | Core: | Singlecore |
| Application: | Network | ||
| High Light: | Single Mode Simplex Pigtail,Simplex Fiber Optic Cable Pigtail,0.9mm Fiber Optic Cable Pigtail |
||
Product Description
yellow single-mode 0.9mm SC APC simplex Fiber Optic cable pigtail
Fiber Optic Pigtail
Fiber pigtails are with premium grade SC connectors and with typical 0.9mm outer diameter cables. Simplex fiber pigtail and duplex fiber pigtails are available, with different cable color, cable diameter and jacket types optional.
Fiber Optic Pigtail Applications:
Optical access network
Data processing networks
Premise installations
Telecommunication networks
Fiber optic communication networks
CATV, LAN, WAN, Test &Measurement
Fiber Optic Pigtail Specification:
| Parameter | Single Mode | Multi Mode | ||||
| Basic | Fiber connector | FC, SC, LC, ST, MU, MTRJ, MPO | ||||
| Ferrule End-face | PC | UPC | APC | UPC | ||
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3bB | ||
| Return Loss | ≥50dB | ≥55dB | ≥60dB | ≥35dB | ||
| Ceramic Ferrule Specification | 125.5um concentricity deviations:<=1um | 127um concentricity deviations:<=3um | ||||
| Suitable Fiber | 9/125um | 50/125um,62.5/125um | ||||
| End-face Geometry | Radius of Curvature | 7~25mm | 5~12mm | N/A | ||
| Fiber Protrusion | ≤50nm | ≤100nm | N/A | |||
| Fiber Under Cut | ≤100nm | ≤100nm | N/A | |||
| Apex offset | ≤50um | |||||
| Mechanical | Exchangeability | ≤0.2dB | ||||
| Salt Spray | ≤0.1dB | |||||
| Drop | ≤0.2dB(1.5M, 5 drops) | |||||
| Vibration | IL ≤0.2dB(550Hz, 1.5mm) | |||||
| Repeatability | ≤ 0.1dB(1000 times) | |||||
| Durability | > 1000 times | |||||
| Operating Temperature | -40°C ~ +85°C | |||||
