LC SM 48 Core Waterproof Fiber Optic Pigtail Patch Cord For FTTH FTTX
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI |
| Certification: | CE |
| Model Number: | Fiber Optic Pigtail |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Package(Surport OEM/ODM) |
| Delivery Time: | 5-8 Work Days |
| Payment Terms: | We accept all online payments |
| Supply Ability: | 10000 pieces |
|
Detail Information |
|||
| Product Name: | 48 Core Pigtail | Connector: | FC,LC,SC,ST,MPO,DIN,D4,MU |
|---|---|---|---|
| Diameter: | 0.9mm/2.0mm/3.0mm | Application: | Telecommunication |
| Insertion Loss: | ≤0.2dB | Length: | 1M/3M/5M/10M/Customization |
| Material: | PVC/LSZH | Use: | FTTH/FTTA/FTTX |
| High Light: | Waterproof Pigtail Patch Cord,SM 48 Core Pigtail Patch Cord,Fiber Optic Pigtail For FTTH |
||
Product Description
FTTH FTTX LC Singlemode 48 Core Waterproof Fiber Optic Pigtail Patchcord
Patch cord pigtail, is in the end of a fiber optic cable plus fiber connector, the other end of the original state, to achieve optical network equipment and equipment, equipment and cable between the active connection, simple, convenient and fast. It is one of the essential passive products for optical network construction.
1. Feature
(1) Low insertion loss and back reflection loss
(2) Good echangeability
(3) Good Durability
(4) High temperature stability
(5) Standard: Telcordia GR-326-CORE
(2) Optical fiber communication system
(3) Optical fiber test equipment
(4) Optical fiber sensor
(5) Industry and military application
|
48 Core Pigtail
|
||||
|
Fiber Mode
|
9/125μm 50/125 μm
|
|||
|
Fiber Count
|
Simplex/Duplex
|
|||
|
Fiber Grade
|
Bend Insensitive
|
|||
|
Cable Diameter
|
0.9 mm/2.0mm/3.0mm
|
|||
|
Cable Jacket
|
PVC/LSZH
|
|||
|
Parameter
|
SC/LC/FC/ST/MPO/DIND4/MU Connector
|
|||
|
SM
|
MM
|
|||
|
PC
|
UPC
|
APC
|
PC
|
|
|
Insertion loss
|
≤0.25dB
|
≤0.25dB
|
≤0.25dB
|
≤0.25dB
|
|
Return loss
|
≥50dB
|
≥55dB
|
≥60dB
|
/
|
|
operating wavelength
|
1310nm, 1550nm
|
850nm, 1300nm
|
||
|
Ferrule Concentricity
|
≤1um
|
≤4um
|
||
|
Wavelength
|
1310 nm/1550 nm
|
|||
|
Durability
|
>1000 Times
|
|||
|
Working temperature
|
-40~85°C
|
|||
|
Storage temperature
|
-40~85°C
|
|||

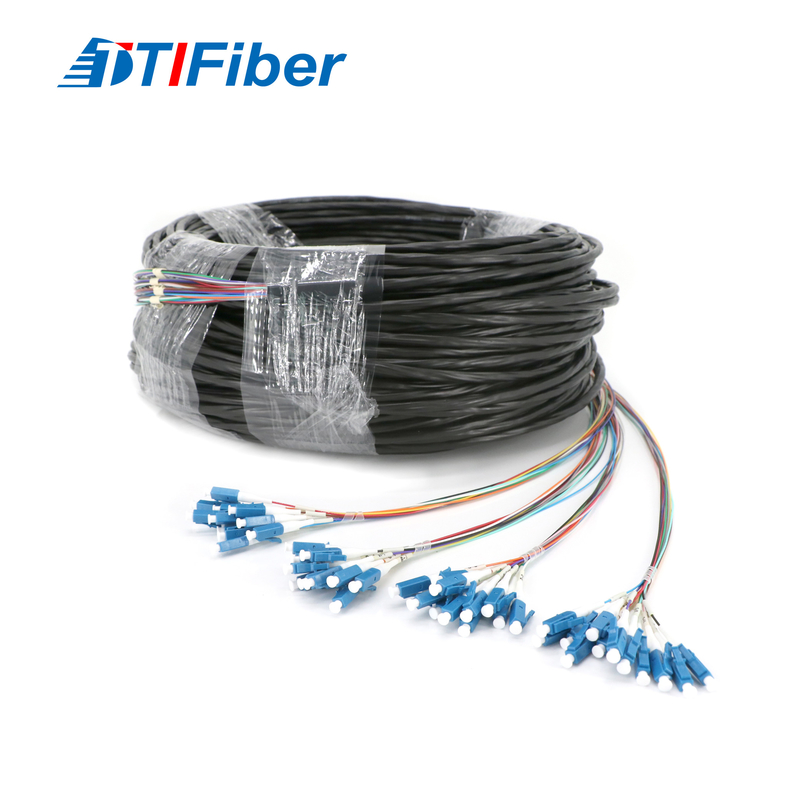

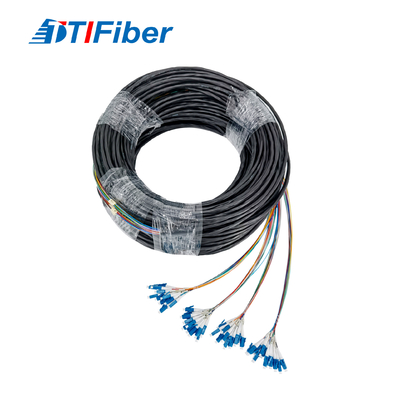

4. Product Details
5. FAQ:
1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.
2. Do you accept OEM,ODM?
Yes, we accept them .
3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
5. What's the Payment?
We accept all online payments .
