LC SM MM PC MTRJ MTP/MPO APC UPC Multimode Fiber Optic Adapter Loopback
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | TTI |
| Certification: | CE / ROHS |
| Model Number: | loopback |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Boxes |
| Delivery Time: | 5-7 work days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pieces/day |
|
Detail Information |
|||
| Name: | Fiber Loopback | Type: | Loopback |
|---|---|---|---|
| Application: | Telecommunication | Color: | Black/yellow/grey/blue |
| Material: | ABS | Certification: | CE / ROHS |
| Highlight: | Multimode Fiber Optic Loopback,UPC Fiber Optic Loopback,APC Fiber Loopback |
||
Product Description
LC SM MM PC MTRJ MTP/MPO APC UPC Multimode Fiber Optic Adapter Loopback
Features
1. Loopback cable for many test applications
2. Multimode, 50/125 or 62.5/125 fiber optic cable; Single mode, 9/125 fiber optic cable
3. SC connectors with precision ceramic ferrule for maximum optical performance
4. Molded connector to secure connection
5 Fully tested cables to ensure superior quality and durability
6. Jacket Style: PVC or LSZH
7. Operating Wavelength: 850 nm (Multimode), 1310nm (Single mode)
8. Insertion Loss: <=0.30 dB (direct test)
9. Return Loss: >=50dB(SM), >=20 dB(MM)
10.Compatible with Fast Ethernet, Fiber Channel, ATM, and Gigabit Ethernet
Specification
Description
Fiber Loopback Module is designed to provide a media of return patch for a fiber optic signal. Typically it is used for fiber optic testing applications or network restorations.For the testing applications, the loopback signal is used for diagnosing a problem. Sending a loopback test to network equipment, one at a time, is a technique for isolating a problem.
Fiber Loopback Module is abosolutely an economical solution for a number of fiber optic test applications.
Application
Equipment interconnection
Loopback for network
Components testing
Specification
| Fiber type | Single-mode 9/125 | Fiber connector | LC/UPC |
| Return loss | SM≥50dB | Insertion loss | SM≤0.3dB |
| Jacket material | PVC (Yellow) | Insert-pull test | 500times, IL<0.5dB |
| Operation temperature | -20 to 70°C(-4 to 158°F) | Size | 53mm*14mm*12mm |

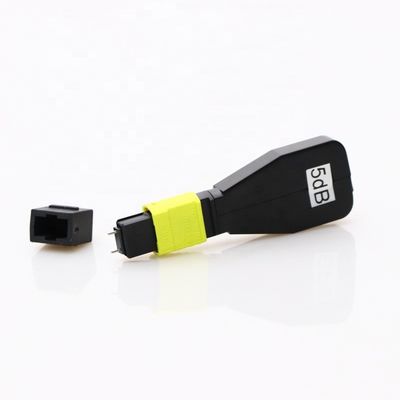

Product pictures
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
Our service:
- Standard and customized OEM products from small to large quantity are welcome.
- Compliance with global environmental industry with RoHS and SGS standards.
- All products are 100% fully tested by our technical expertise.
- Our patch cord warranty period is one year.
1.Why choose TTI FIBER ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for customers.
2.Do you accept OEM,ODM?
Yes, we accept them.
3.Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes, or products.
4.What's the method of shipment?
We accept all shipment, such as Delievery,ocean transport, land transport, airport transport.
