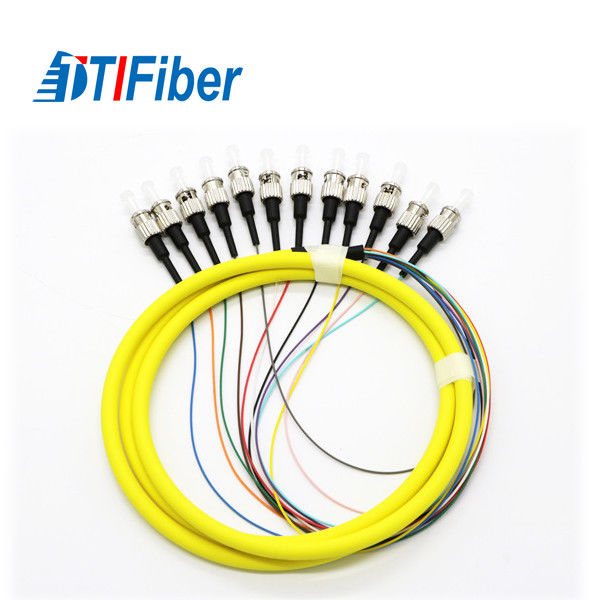

Singlemode Optical Fiber Pigtail 12 Cores Simplex ST Excellent Mechanical Endurance
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS, SGS, ISO9001 |
| Model Number: | FP-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1PCS/plastic box |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T, , Monthly settlement |
| Supply Ability: | 7000pcs/Day |
|
Detail Information |
|||
| Model Name: | Fiber Optic Pigtail | Connector: | SC FC ST LC MPO MU MTRJ D4 SMA... |
|---|---|---|---|
| Fiber Type: | Singlemode, Multimode | Fiber Count: | 1~144 Multi-fibers |
| Cable Diameter: | 0.9mm, 2.0mm, 3.0mm | Cable Type: | PVC LSZH OFNR OFNP |
| Color: | Colors | ||
| High Light: | pigtail fibra optical,optical fiber pigtail |
||
Product Description
Singlemode fibre optic pigtail 12 cores Simplex ST Excellent Mechanical Endurance
Fiber Optic Pigtail Description:
Fiber Pigtails is short optical fiber permanently attached to a source , detector or other fiber optic device at one end and an optical connector at the other .
Fiber Optic Pigtail Features:
Low insertion loss, high return loss
Excellent mechanical endurance
High credibility and stability
Good in repeatability and exchangeability
Fiber Optic Pigtail Application:
FTTX+LAN
Testing equipment
Telecommunication
Optical fiber CATV
Optical communication system
Fiber Optic Pigtail Order Information:
| Fiber OpticPigtail | |||||
| Connector Type | Ceramic Ferrule End Face |
Cable Diameter (mm) |
Simplex/Duplex | Single mode /Multi-mode |
Length (meter) |
| FC | PC/UPC/APC | Φ0.9, Φ2,Φ3 | Simplex/Duplex | SM/MM | Customized |
| SC | PC/UPC/APC | Φ0.9, Φ2,Φ3 | Simplex/Duplex | SM/MM | Customized |
| ST | PC/UPC | Φ0.9, Φ2,Φ3 | Simplex/Duplex | SM/MM | Customized |
| LC | PC/UPC | Φ0.9, Φ2,Φ3 | Simplex/Duplex | SM/MM | Customized |
| MU | PC/UPC | Φ0.9, Φ2 | Simplex/Duplex | SM/MM | Customized |
| MTRJ | PC/UPC | Φ0.9, Φ2 | Duplex | SM/MM |
Customized |
Fiber Optic Pigtail Packaging & Delivery:
Packaging Details: Individual package
Port: Shenzhen
Lead Time : Shipped in 7 days after payment
Fiber Optic Pigtail Specification:
| Fiber optic pigtail Technical Standard: | |
|---|---|
| Insertion Loss: | PC≤ 0.2dB, UPC≤ 0.2dB, APC≤ 0.3dB; Typical0.1dB; |
| Return Loss: | SM PC≥ 50dB, UPC≥ 55dB, APC≥ 65dB; MM PC≥ 35dB, UPC≥35dB |
| Interchangeability: | ≤ 0.2dB |
| Salt Spray: | ≤ 0.2dB |
| Repeatability: | (1000 times) ≤ 0.1dB |
| Vibration: | (550Hz 1.5mm) ≤ 0.1dB |
| High Temperature: | ( +85 sustain 100 hours) ≤ 0.2dB |
| Low Temperature: | (-40 sustain 100 hours) ≤ 0.2dB |
| Temperature Circularly: | (-40+85 sustain 100 hours) ≤ 0.2dB |
| Humidity: | (+25+65 93 R. H. 100 hours) ≤ 0.2db |
| Apex Offset: | 0μ m≤ ≤ 50μ m |
| Radius of Curvature: | 7mm≤ ≤ 25mm |
| Cable Type: | Simplex, Duplex, Fan-Out; |
| Connector Type: | LC, SC, FC, ST, MU, MPO, MTRJ, D4, DIN, SMA, FDDI, ESCON etc. |
| Fiber Mode: | SM (single mode) G652D, G655, G657, MM (multimode); G651.1 (50/125, 62.5/125, 10Gb/s 50/125) |
