SC/APC Pigtail Fibra Optical 6 Fiber SM Multi Color 3 Meters Length ROHS Certificated
|Place of Origin:||Guangdong, China|
|Certification:||ROHS, SGS, ISO9001|
Payment & Shipping Terms:
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||1PCS/PE Bag|
|Payment Terms:||T/T, , Monthly settlement|
|Model Name:||Fiber Optic Pigtail||Connector:||SC FC ST LC MPO MU MTRJ D4 SMA...|
|Fiber Type:||Singlemode, Multimode||Fiber Count:||1~144 Multi-fibers|
|Cable Diameter:||0.9mm, 2.0mm, 3.0mm||Cable Type:||PVC LSZH OFNR OFNP|
single mode pigtail,
pigtail fibra optical

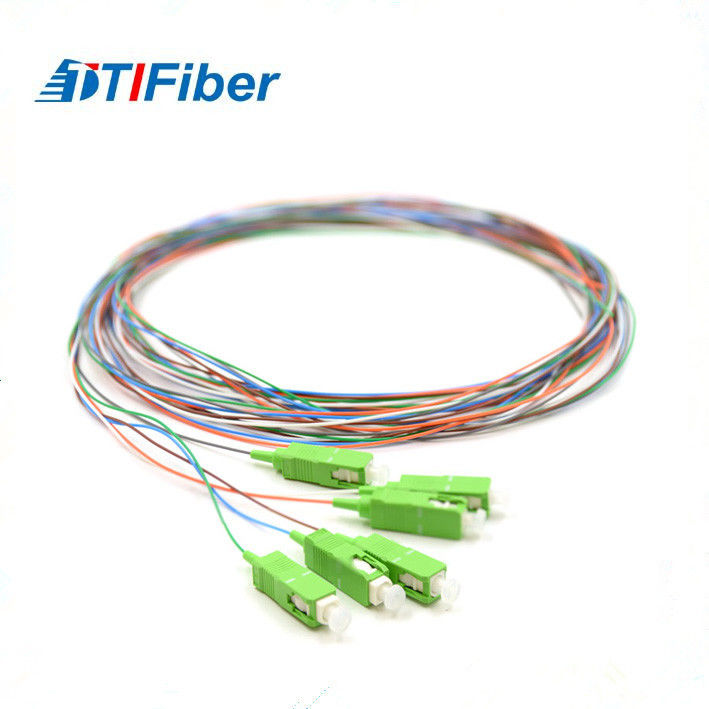

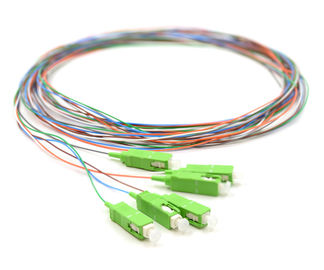

SC/APC Pigtail 6 Fiber SM Multi Color Fiber Pigtails 3 Meters
We supply SC/APC Single mode 6 Pack Multi Color Fiber Optic Pigtails with competitive price.We supply quality SC/APC Single mode Fiber Optic Pigtails are 6 packs that are 3 meters long with 900um outter jacket. Ideal for fusion splicing.
We also offer custom-made specification pigtails, please contact us for details.
Features of SC/APC Single mode Fiber Optic Pigtails:
1) Superior qualified standard PC, APC, UPC, SPC polishing;
2) 100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);
3) 100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);
4) φ0.9mm, φ2.0mm, φ3.0mm cable optional;
5) Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available;
6) FC, SC, LC, MU, ST, MT-RJ, etc connector
7) Simplex and duplex connector available;
8) Good exchange ability and good durability;
9) Available in fiber bunch, ribbon fan-out, pigtail available;
10) Meets ISO9001, ROHS and Bell core GR 326-core standards;
11) Customized specifications are welcomed.
Applications of SC/APC Single mode Fiber Optic Pigtails:
1) CATV, metro test equipment;
2) Telecommunication networks;
3) Local area networks (LAN);
4) Wide area networks (WAN);
5) Premise installations;
6) Data processing networks;
7) Video and military active device termination.
We supply the SC UPC fiber optic cables and connectors, adapters, attenuators. SC/APC is used in multi media, CATV, and premise installation.
- Meets ROHS and Bell core GR 326-core standards
- Custom Configurations Available at No Extra Charge
- Available in fiber bunch, ribbon fan-out, pigtail available
- FC, LC, ST, SC, MTRJ, MU, MPO, D4, SMA optional
- Ferrule of end-face: PC, UPC, APC
- PVC, LSZH, OFNR, OFNP fiber cable optional
- Factory 100% test before shipment
- Low insertion loss and high return loss
- Serialized & Individual Test Records
- Suitable for fiber optic patch panel
- Telecommunication networks
- Fiber optic communication networks
- CATV, LAN, WAN, Test &Measurement
|Parameter||Single Mode||Multi Mode|
|Basic||Fiber connector||FC, SC, LC, ST, MU, MTRJ, MPO|
|Ceramic Ferrule Specification||125.5um concentricity deviations:<=1um||127um concentricity deviations:<=3um|
|End-face Geometry||Radius of Curvature||7~25mm||5~12mm||N/A|
|Fiber Under Cut||≤100nm||≤100nm||N/A|
|Drop||≤0.2dB(1.5M, 5 drops)|
|Vibration||IL ≤0.2dB(550Hz, 1.5mm)|
|Repeatability||≤ 0.1dB(1000 times)|
|Durability||> 1000 times|
|Operating Temperature||-40°C ~ +85°C|
Step 1: Connector Type: SC, LC,ST, FC, MTRJ, MU, MPO, MTP
Step 2: Ferrule End-face: PC, UPC or APC
Step 3: Fiber Type: Single Mode(SM) or Multimode(MM)
Step 4: Cable Core: Simplex or Duplex
Step 5: Cable Diameter: 0.9mm, 2.0mm, 3.0mm...
Step 6: Cable Length: 1, 2, 3 meter or customized
Step 7: Cable Type: PVC, LSZH, OFNR, OFNP…
Step 8: Cable color: Yellow, Orange, White, Blue, Green, Red, ...
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
- Standard and customized OEM products from small to large quantity are welcome.
- Compliance with global environmental industry with RoHS and SGS standards.
- All products are 100% fully tested by our technical expertise.
- Our patch cord warranty period is one year.
One piece per PE bag with stick label (we could add customer's logo in the label.)
1.Why choose TTI FIBER ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(4)Win-Win Price:Save much costs, bring more benefits for customers.
2.Do you accept OEM,ODM?
Yes, we accept them .
3.Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4.What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
5.What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal,,Money Gram.
