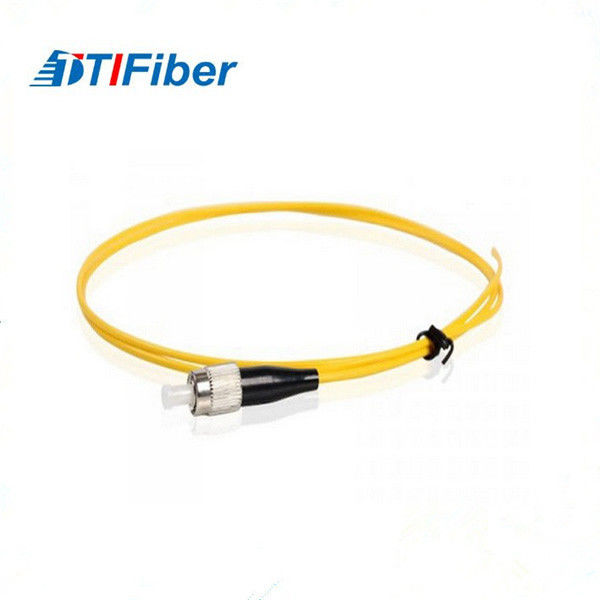

Fiber Optic Pigtail Single mode Yellow Pigatil 3.0mm LSZH Jacket

Fiber Optic Pigtail Single mode Yellow Pigatil 3.0mm LSZH Jacket

Product Details:

Place of Origin: Shenzhen,China
Brand Name: TTI
Certification: CE / ROHS
Model Number: FC

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Boxes
Delivery Time: 2-3 Days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram,Paypal
Supply Ability: 5000 Pieces / Day
Get Best Price Contact Now

Detail Information

Name: Optical Fiber Pigtail Type: FC
Polishing: APC PC UPC Fiber: Singlemode(SM)/Multimode(MM)
Color: Yellow Orange Acqa Pink Diameter: 0.9mm,2mm,3mm
Jacket: PVC LSZH Core: SInglecore Or Multicore
Material: ABS Application: Network
High Light:

single mode pigtail

,

optical fiber pigtail

Product Description

Fiber Optic Pigtail Single mode Yellow Pigatil 3.0mm LSZH Jacket

Fiber Optic Pigtail Single mode Yellow Pigatil 3.0mm LSZH Jacket

Fiber Optic Pigtail

We supply FC fiber optic pigtails, with very competitive prices. We offer 3 primary fiber versions including the 9/125um single mode, 62.5/125 multimode and 50um OM3 10Gb types, These fiber pigtails are with premium grade FC connectors and with typical 0.9mm outer diameter cables. Simplex fiber pigtail and duplex fiber pigtails are available, with different cable color, cable diameter and jacket types optional.
Features of FC/UPC Single mode Fiber Optic Pigtails:
1) Superior qualified standard PC, APC, UPC, SPC polishing;
2) 100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);
3) 100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);
4) φ0.9mm, φ2.0mm, φ3.0mm cable optional;
5) Single mode (9/125) or multi mode (50/125 or 62.5/125) fiber available;
6) FC, SC, LC, MU, ST, MT-RJ, etc connector options
7) Simplex and duplex connector available; 8) Good exchange ability and good durability;
9) Available in fiber bunch, ribbon fan-out, pigtail available;
10) Meets ISO9001, ROHS and Bell core GR 326-core standards;
11) Customized specifications are welcomed.



Fiber Optic Pigtail Features:

The FC fiber optic Pigtail cable is available in both singlemode and multimode versions, and is fully intermateable with NTT-FC products. It includes different polishing type. Such as FC/PC singlemode simplex or duplex, FC/APC singlemode simplex or duplex, FC/PC multimode simplex or duplex.

Both “singlemode simplex or duplex” and “multimode simplex or duplex” versions FC fiber optic Pigtail come with a zirconia ceramic ferrule with pre-polished PC profile and convex spherical end. Teleweaver offers an FC Tunable Patch cord with four-position tuning for applications requiring precise fiber alignment. A specially designed FC/PM Pigtail is available for use with Polarization Maintaining Fiber. FC Fiber Pigtail is very popular in FC fiber patch cable and FC fiber pigtail making.



Fiber Optic Pigtail Applications:

Optical access network

Data processing networks

Premise installations

Telecommunication networks

Fiber optic communication networks

CATV, LAN, WAN, Test &Measurement



Fiber Optic Pigtail Specification:

Parameter Single Mode Multi Mode
Basic Fiber connector FC, SC, LC, ST, MU, MTRJ, MPO
Ferrule End-face PC UPC APC UPC
Insertion Loss ≤0.2dB ≤0.2dB ≤0.3dB ≤0.3bB
Return Loss ≥50dB ≥55dB ≥60dB ≥35dB
Ceramic Ferrule Specification 125.5um concentricity deviations:<=1um 127um concentricity deviations:<=3um
Suitable Fiber 9/125um 50/125um,62.5/125um
End-face Geometry Radius of Curvature 7~25mm 5~12mm N/A
Fiber Protrusion ≤50nm ≤100nm N/A
Fiber Under Cut ≤100nm ≤100nm N/A
Apex offset ≤50um
Mechanical Exchangeability ≤0.2dB
Salt Spray ≤0.1dB
Drop ≤0.2dB(1.5M, 5 drops)
Vibration IL ≤0.2dB(550Hz, 1.5mm)
Repeatability ≤ 0.1dB(1000 times)
Durability > 1000 times
Operating Temperature -40°C ~ +85°C
