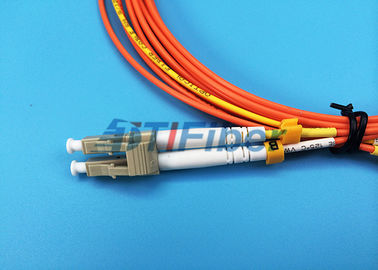

SM LC to MM LC Fiber Optic Patch Cord Mode Conditioning Fiber Patch Cable - 1 Meter
Product Details:
Place of Origin: | China |
Brand Name: | TTI |
Certification: | ISO |
Model Number: | SM LC-MM LC |
Payment & Shipping Terms:
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | in pp bag |
Delivery Time: | 3-5days |
Payment Terms: | T/T, |
Supply Ability: | 1000pcs/day |
Detail Information |
|||
Connector: | LC | Polish: | UPC |
---|---|---|---|
Jacket: | PVC, LSZH | Length: | 1M |
Highlight: | multimode fiber patch cord,fiber optical cable |
Product Description

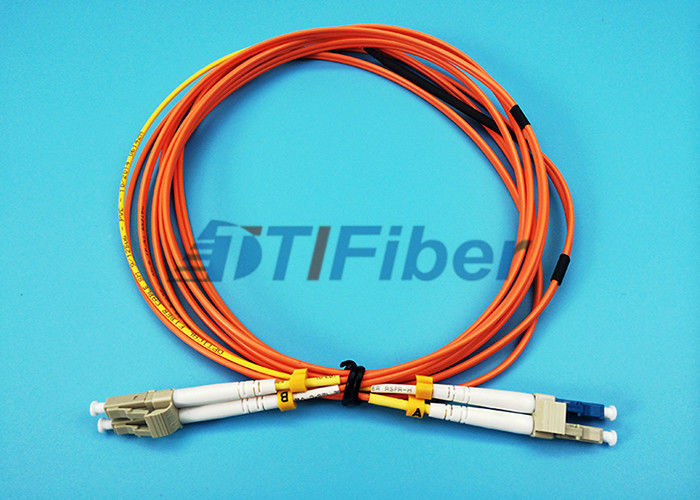

SM LC to MM LC Mode Conditioning Fiber Patch Cable - 1 Meter
Mode conditioning cables are used when a gigabit 1000Base-LX router or switch has been installed into a multimode
network. These cables are fully compliant with IEEE 802.3z standard. These connectors utilize a UPC (Ultra Physical
Contact) polish which provides a better surface finish with less back reflection.
Features:

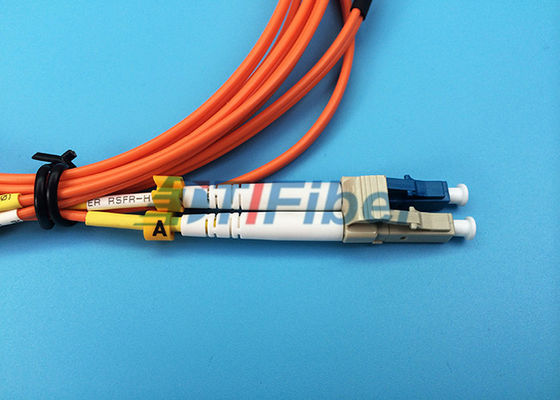

- Connector 1: Singlemode LC
- Connector 2: Multimode (62.5/125um) LC
- Ceramic Ferrules
- Corning Fiber & Cladding
- UPC Polish
- Masks Differential Mode Delay (DMD) Effects
- Use in Place of Standard Equipment-to-Cable Plant Patch Cord
- Jacket: OFNR (Riser-Rated)
Applications:
Optical access network
Data processing networks
Premise installations
Local Area Networks(LANs)
Wide Area Networks(WANs)
Specification:
Item | Single Mode | Multi Mode |
Insertion Loss | <= 0.2dB | <= 0.3bB |
Return Loss | PC≥50dB, UPC≥55dB, APC≥60dB | |
Insert-pull Test | 1000 times | |
Repeatability | <=0.1 | |
Tensile strength | ≥10KG | |
Operating Temperature | -40°C ~ +85°C | |
Ceramic Ferrule Specification | 125.5um concentricity deviations:<=1um | 127um concentricity deviations:<=3um |
Suitable Fiber | 9/125um | 50/125um,62.5/125um |
