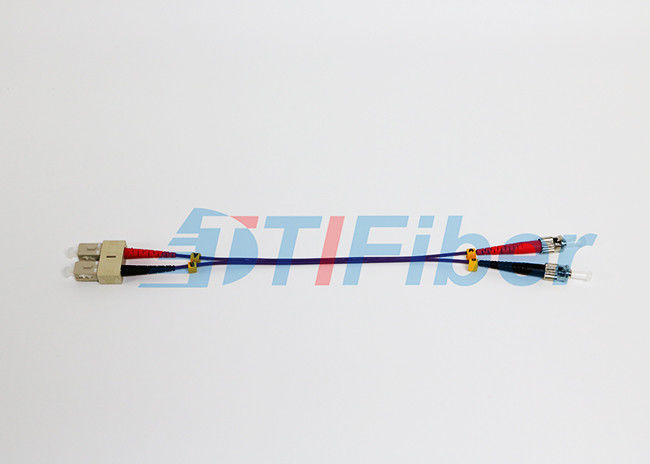

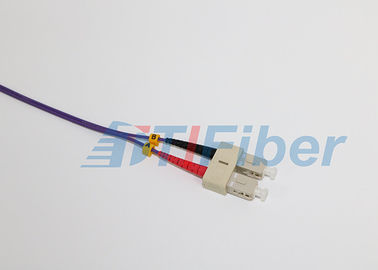

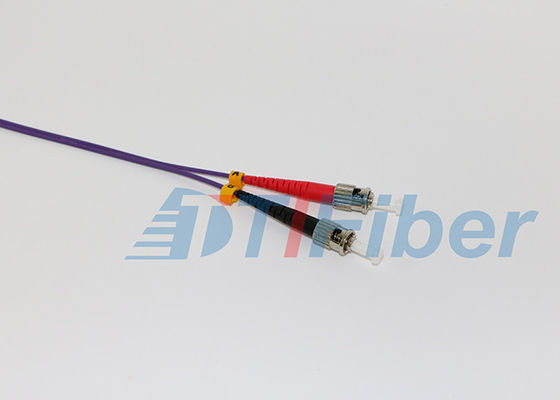

50 / 125 mm fiber patch cords , multimode patch cord ST / UPC to SC / UPC
Product Details:
| Place of Origin: | China Mainland |
| Brand Name: | TTI |
| Certification: | ROHS, SGS, ISO9001 |
| Model Number: | ST-SC/UPC |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1pcs/PE bag |
| Delivery Time: | in 2-4 days |
| Payment Terms: | T/T, , PayPal, Monthly |
| Supply Ability: | 7000pcs/Day |
|
Detail Information |
|||
| Connector: | ST LC | Inner: | Ceramic |
|---|---|---|---|
| Jacket: | PVC, LSZH, OFNP, OFNR | Cable Diameter: | 0.9mm,2.0mm Or 3.0mm |
| Ferrule End -face: | UPC | Cable Length: | 1M ,2M, 3M Etc, Can Be Customized |
| Fiber Mode: | Multimode | Cable Core: | Simplex,Duplex |
| High Light: | multimode fiber patch cord,fiber optical cable |
||
Product Description
50 / 125 mm fiber patch cords , multimode patch cord ST / UPC to SC / UPC
Features:
- Conforms to IEC, EIA-TIA or Telcordia performance requirements
- Available in different fibre types
- Available in standard and custom lengths
- REACH, SvHC and RoHS materials compliant
Application:
- CATV / VIDEO
- FTTX
- ATM, SONET and WDM
- Military applications
Specification:
| Parameter | Single Mode | Multi Mode | ||||
| Basic | Fiber connector | FC, SC, LC, ST, MU, MTRJ, MPO | ||||
| Ferrule End-face | PC | UPC | APC | UPC | ||
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3bB | ||
| Return Loss | ≥50dB | ≥55dB | ≥60dB | ≥35dB | ||
| Ceramic Ferrule Specification | 125.5um concentricity deviations:<=1um | 127um concentricity deviations:<=3um | ||||
| Suitable Fiber | 9/125um | 50/125um,62.5/125um | ||||
| End-face Geometry | Radius of Curvature | 7~25mm | 5~12mm | N/A | ||
| Fiber Protrusion | ≤50nm | ≤100nm | N/A | |||
| Fiber Under Cut | ≤100nm | ≤100nm | N/A | |||
| Apex offset | ≤50um | |||||
| Mechanical | Exchangeability | ≤0.2dB | ||||
| Salt Spray | ≤0.1dB | |||||
| Drop | ≤0.2dB(1.5M, 5 drops) | |||||
| Vibration | IL ≤0.2dB(550Hz, 1.5mm) | |||||
| Repeatability | ≤ 0.1dB(1000 times) | |||||
| Durability | > 1000 times | |||||
| Operating Temperature | -40°C ~ +85°C | |||||
Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
