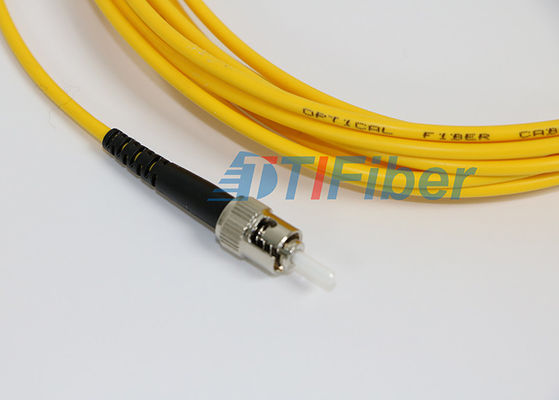

OEM 2.0MM Fiber Optic Patch Cord ST / UPC Multimode Duplex Fiber Optic Jumper
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI Fiber |
| Certification: | ISO 9001, ISO 14001, REACH， ROHS, CE and CPR certificates |
| Model Number: | ST-ST |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1pcs/PE bag |
| Delivery Time: | 2-4 work days |
| Payment Terms: | T/T, , PayPal, Monthly |
| Supply Ability: | 7000pcs/Day |
|
Detail Information |
|||
| Ferrule End -face: | UPC, APC | Connector: | ST |
|---|---|---|---|
| Jacket: | PVC, LSZH, OFNP, OFNR | Inner: | Ceramic |
| Cable Diameter: | 0.9mm,2.0mm Or 3.0mm | Fiber: | G652D,G657A1or Others |
| Cable Length: | 1M; 2M; 3M Etc., Can Be Customized | Fiber Core: | Simplex,Duplex |
| Highlight: | multimode fiber patch cord,fiber optic network cable |
||
Product Description
OEM 2.0MM Fiber Optic Patch Cord ST / UPC Multimode Duplex Duplex Fiber Optic Jumper
Features:
-
low insertion loss and high return loss
-
high stability and repeat
-
be according with the telcordia GR-326-CORE standard
-
ferrule:excellent quality and high intensity zirconium dioxide ceramic ferrule
Applications:
-
CATV
-
Local Area Network (LAN)
-
Data communication network
-
Telecommunication optical transmission network
-
Optical access network(OAN)
Specification:
|
Parameter |
Single Mode |
Multi Mode |
||||
|
Basic |
Fiber connector |
FC, SC, LC, ST, MU, MTRJ, MPO |
||||
|
Ferrule End-face |
PC |
UPC |
APC |
UPC |
||
|
Insertion Loss |
≤0.2dB |
≤0.2dB |
≤0.3dB |
≤0.3bB |
||
|
Return Loss |
≥50dB |
≥55dB |
≥60dB |
≥35dB |
||
|
Ceramic Ferrule Specification |
125.5um concentricity deviations:<=1um |
127um concentricity deviations:<=3um |
||||
|
Suitable Fiber |
9/125um |
50/125um,62.5/125um |
||||
|
End-face Geometry |
Radius of Curvature |
7~25mm |
5~12mm |
N/A |
||
|
Fiber Protrusion |
≤50nm |
≤100nm |
N/A |
|||
|
Fiber Under Cut |
≤100nm |
≤100nm |
N/A |
|||
|
Apex offset |
≤50um |
|||||
|
Mechanical |
Exchangeability |
≤0.2dB |
||||
|
Salt Spray |
≤0.1dB |
|||||
|
Drop |
≤0.2dB(1.5M, 5 drops) |
|||||
|
Vibration |
IL ≤0.2dB(550Hz, 1.5mm) |
|||||
|
Repeatability |
≤ 0.1dB(1000 times) |
|||||
|
Durability |
> 1000 times |
|||||
|
Operating Temperature |
-40°C ~ +85°C |
|||||
Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
Shipping:
-
Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
-
Airport to Airport: by air
-
Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
 |
|
|
|
