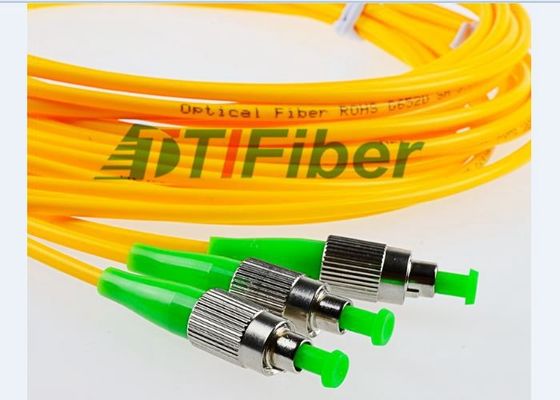

FC/APC-FC/APC Fiber Optic Patch Cord Simplex 3.0mm PVC Yellow Jacket
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TRT |
| Certification: | SGS |
| Model Number: | FC/APC SM SX 3.0mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PP bag then in carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, |
| Supply Ability: | 8000pcs/day |
|
Detail Information |
|||
| Material: | PVC | Fiber: | SM |
|---|---|---|---|
| Color: | Yellow | Insertion Loss: | < 0.35dB |
| Polished: | APC | Length: | 1M |
| Highlight: | multimode fiber patch cord,fiber optic network cable |
||
Product Description
FC/APC-FC/APC fiber patch cord simplex 3.0mm PVC yellow jacket
Description:
Fiber optic patch cord is composed of a fiber optic cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center. TTI fiber provides various types of fiber optic patch cables including single-mode, multimode, multi-core, armored patch cables, as well as fiber optic pigtails and other special patch cables. For most of the patch cables, the SC, ST, FC, LC, MU, MTRJ, (APC/UPC polish) are all available. In addition, we also have MTP/MPO cables in stock.
Application
Telecommunication
CATV, FTTH, LAN
Fiber oiptic sensors
Optical transmission system
Test equipment
Features
Screw-thread coupling mechanism
Ceramic ferrules connectors
Low insertion loss, high return loss
Excellent mechanical endurance
High credibility and stability
Good in repeatability and exchangeability
100% Insertion, Return Loss, End Face and Interference inspection
Technical Data
Parameter |
Unit |
FC, SC, LC |
ST, MU |
MTRJ, MPO |
|||||||||
SM |
MM |
SM |
MM |
SM |
MM |
SM |
|||||||
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
UPC |
PC |
PC |
APC |
||
Insertion Loss |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
Return Loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥30 |
≥45 |
≥50 |
≥35 |
≥55 |
≥75 |
Repeatability |
dB |
≤0.1 |
|||||||||||
Durability |
dB |
≤0.2dB typical change, 1000 matings |
|||||||||||
Operating temperature |
ºC |
-20 ~ +75 |
|||||||||||
Storage temperature |
ºC |
-40 ~ +85 |
|||||||||||
Ordering Information
Connector |
Fiber Core |
Cable Diameter |
Fiber Type |
Polishing |
Cable Jacket |
Cable Color |
Fiber Length |
LC SC FC ST D4 MU DIN SMA MPO MTRJ |
Simplex Duplex |
0.9mm 2.0mm 3.0mm |
SM:9/125um MM:50/125um MM:62.5/125um OM3 |
PC UPC APC |
PVC LSZH |
Yellow Orange Aqua others |
1M 2M 3M 10M 20M 30M |
Example of Application :
