Outdoor FTTH Fiber Optic Cable ADSS 2 4 6 8 12 24 48 72 96 Core Span Aerial Fibre Optical Cable
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI FIBER |
| Certification: | CE/ROHS/ISO9001 |
| Model Number: | ADSS |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |

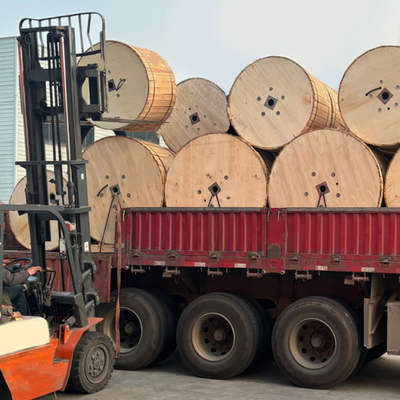

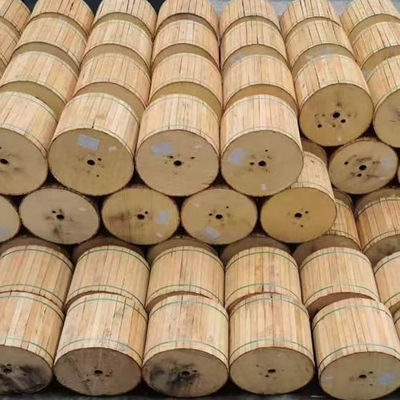

| Packaging Details: | Wooden Drum |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KM/Drum or Other Package Lengths Customized |
|
Detail Information |
|||
| Color: | Black, Usually Black Color, Blue Or Others, Aqua, Yellow | Material: | Available Upon Customer's Request, PVC |
|---|---|---|---|
| Fiber Type: | G652D, G657A2, Single Mode Or Multi Mode, G657, Single Mode Fiber | Application: | FTTH, OUTDOOR, Aerial, Armored Outdoor Optic Fiber Cable, Audio Signal Transmission |
| Certification: | ISO9001, ROHS, CE, CE And ROHS, ISO9001/CE/ROHS | Number Of Conductors: | ≥ 10, 2, 6 |
| Type: | Coaxial, FTTH 24 Core Optical Fiber Cable, Professional Manufactures Fiber Optic Sma Connector, Bare Optical Fiber, Single-Mode Or Multi-Mode | Product Name: | Fiber Optic Launch Cable, Ftth Drop Cable, 2core FTTH Single Mode Indoor/outdoor Fiber Optic, Armored 2 Core Field Optical Fiber Cable Assembly For Field Operation, 1 2 4 Core Fiber Optic Drop Cable |
| Fiber Count: | 2 Core, 2/4/6/8/12 Core, 1-144 Core, 1 Cores, 1/2/4 Core | Length: | As Your Required, 1KM, 2KM Or Other Requires |
| Jacket Material: | LSZH, PVC, PE, TPU, PVC/LSZH | Operating Temperature: | -55~+85°C, -20℃ To 70℃, -40°C To + 70°C |
| Package: | Plastic Bag, Carton, 1km/roll | Sheath: | MDPE/HDPE, PLENUM, LSZH, PVC, Ect |
| Cable Diameter: | 0.25MM, 2.2±0.07 | Strength Member: | Steel Wire, Metallic Wire, FRP |
| Name: | Ftth Drop Cable Outdoor Fiber Optical Cable, Fiber Optic Patchcord | Strengthen Member: | FRP Or Steel 0.4mm/0.45mm/0.5mm, 1 Steel Wire+ 2 FRP |
| Highlight: | Outdoor ADSS fiber optic cable,Aerial fiber optic cable with warranty,FTTH fiber optic cable 96 core |
||
Product Description
Outdoor FTTH Fiber Optic Cable ADSS 2 4 6 8 12 24 48 72 96 Core Span Aerial Fibre Optical Cable
Product Specifications
| Attribute | Value |
|---|---|
| Color | Black, Usually Black Color, blue or others, Aqua, yellow |
| Material | Available upon customer's request, PVC |
| Fiber type | G652D, G657A2, single mode or multi mode, G657, Single Mode Fiber |
| Application | FTTH, OUTDOOR, Aerial, armored outdoor optic fiber cable, Audio signal Transmission |
| Certification | ISO9001, ROHS, CE, CE and ROHS, ISO9001/CE/ROHS |
| Number of conductors | ≥ 10, 2, 6 |
| Type | Coaxial, FTTH 24 core optical fiber cable, professional manufactures Fiber optic sma connector, bare optical fiber, Single-Mode or Multi-Mode |
| Product name | fiber optic launch cable, ftth drop cable, 2core FTTH single mode indoor/outdoor fiber optic, armored 2 core field optical fiber cable assembly for field operation, 1 2 4 core fiber optic drop cable |
| Fiber count | 2 core, 2/4/6/8/12 Core, 1-144 Core, 1 cores, 1/2/4 Core |
| Length | as your required, 1KM, 2KM or other requires |
| Jacket material | LSZH, PVC, PE, TPU, PVC/LSZH |
| Operating temperature | -55~+85°C, -20℃ to 70℃, -40°C to + 70°C |
| Package | Plastic Bag, Carton, 1km/roll |
| Sheath | MDPE/HDPE, PLENUM, LSZH, PVC, ect |
| Cable diameter | 0.25MM, 2.2±0.07 |
| Strength member | steel wire, Metallic wire, FRP |
| Name | ftth drop cable Outdoor Fiber Optical Cable, fiber optic patchcord |
| Strengthen member | FRP or Steel 0.4mm/0.45mm/0.5mm, 1 steel wire+ 2 FRP |
Product Description
Outdoor FTTH Fiber Optic Cable ADSS 2 4 6 8 12 24 48 72 96 Core Span Aerial Fibre Optical Cable

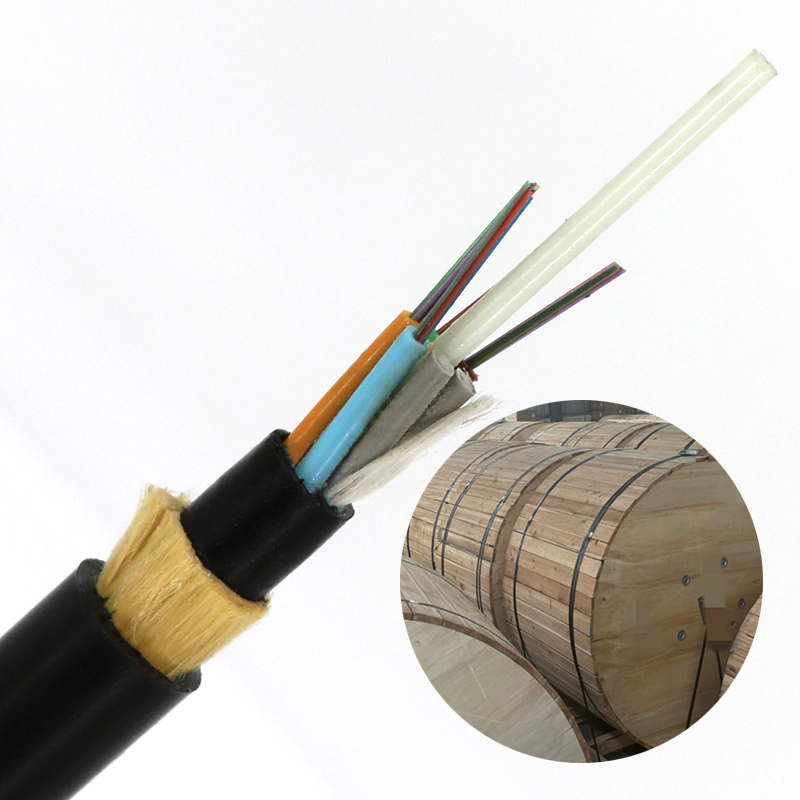

The structure of ADSS optical fiber cable adopts loose tube layer stranded structure, 250µm fiber is positioned in a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. The loose tube (and filling rope) is twisted around the non-metallic central reinforcing core (FRP) to form a compact cable core, and the gap of the cable core is filled with water blocking ointment. The cable core is extruded with polyethylene (PE) inner sheath, then twisted with aramid for reinforcement, and finally extruded with polyethylene (PE) outer sheath or AT outer sheath.
The design of ADSS optical cable fully considers the actual situation of power lines and is suitable for different levels of high-voltage transmission lines. Polyethylene (PE) sheath can be used for 10kV and 35kV Power lines; For 110kV and 220kV power lines, the hanging point of optical cable must be determined by calculating the distribution of electric field strength, and the at outer sheath must be used. At the same time, the dosage of aramid fiber and perfect stranding process are carefully designed to meet the application requirements of different spans.
Characteristics
- Small cable diameter (adapt for bad climate), light weight, 100m span, low attached load on tower.
- Non-metal structure, good insulation, anti-thunder.
- Fine production technology, even force for aramid yarn, with superior stress flexibility.
Features
It can be erected continuously. Life expectancy over 30 years.
Use AT sheath, improved tracking resistance performance, light weight, small cable diameter, reduce the influence of ice and wind, and the load on the tower and support are reduced, with large span.
It has excellent tensile properties and temperature characteristics.
Adapt To Meteorological Conditions
| Weather conditions | A | B | C | D |
|---|---|---|---|---|
| Wind speed(m/s) | 25 | 35 | 10 | 10 |
| Icing(m/s) | 0 | 0 | 5 | 10 |
| Extra load(N/m) | 0.7 | 0.7 | 2.5 | 4.4 |
Optical Characteristics
| Item | G.652 | G.655 | 50/125um | 62.5/125um |
|---|---|---|---|---|
| Attenuation @850nm | ≤3.0dB/km | ≤3.2dB/km | ||
| Attenuation @1300nm | ≤1.0dB/km | ≤1.2dB/km | ||
| Attenuation @1310nm | ≤0.36dB/km | ≤0.40dB/km | ||
| Attenuation @1550nm | ≤0.22dB/km | ≤0.23dB/km | ||
| Bandwidth @850nm | ≥500MHZ.km | ≥200MHZ.km | ||
| Bandwidth @1300nm | ≥1000MHZ.km | ≥600MHZ.km | ||
| Numerical aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable cut-off wavelength | ≤1260mm | ≤1450mm |
Structural Parameters
| Reference diameter(mm) | RTS (kN) | MAT(kN) | Sectional area of tensile element(mm²) | Modulus of elasticity(kN/mm²) | Coefficient of thermal expansion(10-6/K) |
|---|---|---|---|---|---|
| 11.8 | 10 | 4 | 4.6 | 7.6 | 1.8 |
| 12 | 15 | 6 | 7.6 | 8.3 | 1.5 |
| 12.3 | 20 | 8 | 10.35 | 9.45 | 1.3 |
| 12.6 | 24 | 10 | 13.8 | 10.8 | 1.2 |
| 12.8 | 30 | 12 | 14.3 | 11.8 | 1 |
| 13.1 | 36 | 15 | 18.4 | 13.6 | 0.9 |
| 13.5 | 45 | 18 | 22 | 16.4 | 0.6 |
| 13.8 | 53 | 22 | 26.4 | 18 | 0.3 |
| 14.4 | 60 | 26 | 32.2 | 19.1 | 0.1 |
| 14.6 | 70 | 28 | 33 | 19.6 | 0.1 |
| 14.8 | 85 | 34 | 40 | 20.1 | 0.1 |
Span Adaptability
| Span(m) Adapt to meteorological conditions | Weight (kg/km) |
|---|---|
| A: 160, B: 100, C: 140, D: 100 | PE: 117, AT: 124 |
| A: 230, B: 150, C: 200, D: 150 | PE: 121, AT: 129 |
| A: 300, B: 200, C: 290, D: 200 | PE: 126, AT: 134 |
| A: 370, B: 250, C: 350, D: 250 | PE: 133, AT: 141 |
| A: 420, B: 280, C: 400, D: 280 | PE: 138, AT: 145 |
| A: 480, B: 320, C: 460, D: 320 | PE: 145, AT: 153 |
| A: 570, B: 380, C: 550, D: 380 | PE: 155, AT: 163 |
| A: 670, B: 460, C: 650, D: 460 | PE: 163, AT: 171 |
| A: 750, B: 530, C: 750, D: 510 | PE: 177, AT: 186 |
| A: 800, B: 560, C: 800, D: 560 | PE: 182, AT: 191 |
| A: 880, B: 650, C: 880, D: 650 | PE: 195, AT: 204 |
